Product details

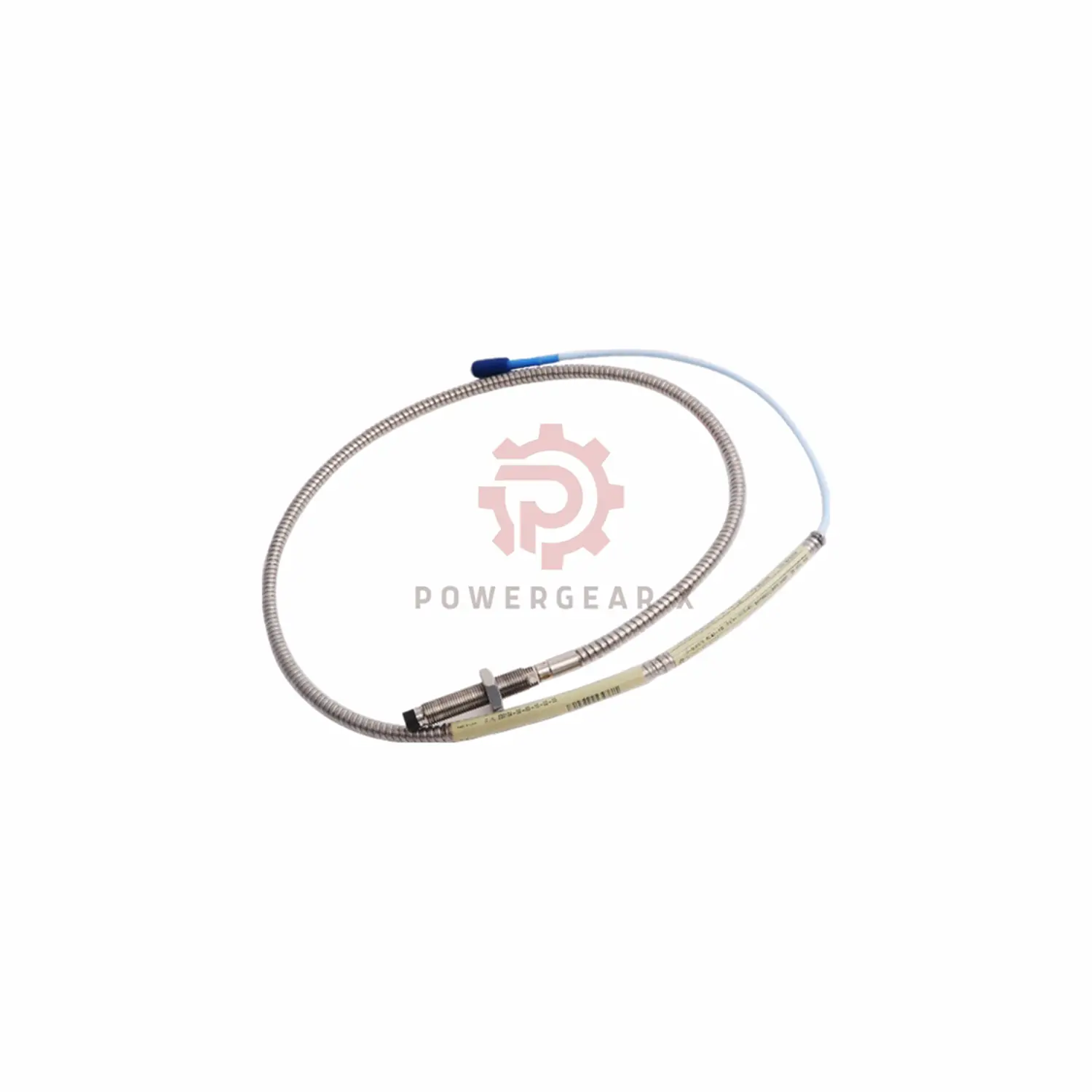

Bently Nevada 330702-00-25-10-02-00: Precision 11mm Proximity Probe
Product Configuration
| Full Part Number | 330702-00-25-10-02-00 |
| 00 | Unthreaded Length: 0 inch |
| 25 | Case Length: 2.5 inch |
| 10 | Cable: 1.0 metre (3.3 ft) |
| 02 | Connector: Miniature coaxial ClickLoc |
| 00 | Agency Approval: Not required |
Technical Specifications
- Probe Diameter: 11 mm
- Thread Type: 1/2-20 UNF
- Max Thread Engagement: 0.750 inch
- Case Torque (Recommended): 15.2 N•m (133 in•lb)
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Cable Type: 75 Ω triaxial with FEP insulation
- DC Resistance: 5.9 ± 0.5 ohms (1m cable)
- Min Bend Radius: 25.4 mm (1.0 inch)
Environmental Ratings
- Operating Temperature: -51°C to +177°C (-60°F to +351°F)
- Seal Material: Viton O-ring
- Pressure Warning: Avoid below -34°C to prevent seal damage
- Vibration Resistance: 20g peak (10-2000 Hz)
- Shock Tolerance: 100g (11ms half-sine)
Shipping Information
- Weight: 0.17 kg
- Origin: Made in USA
- Options: Add Certificate of Origin (COO)
- Carriers: FedEx, UPS, DHL
- Warranty: 12 months
FAQ
Q: What’s the maximum pressure this probe can seal?
A: Not factory tested – contact Bently Nevada for custom pressure validation
Q: Can I use this probe in food processing equipment?
A: Yes – 304 stainless and FEP cable meet sanitary requirements
Q: Is the cable armor standard?
A: Yes – all 3300 XL probes include stainless steel armor
Q: What replacement interval is recommended?
A: 5 years or 50,000 operating hours – whichever comes first
Q: Can I repair damaged probe cables?
A: No – cable damage requires complete probe replacement
