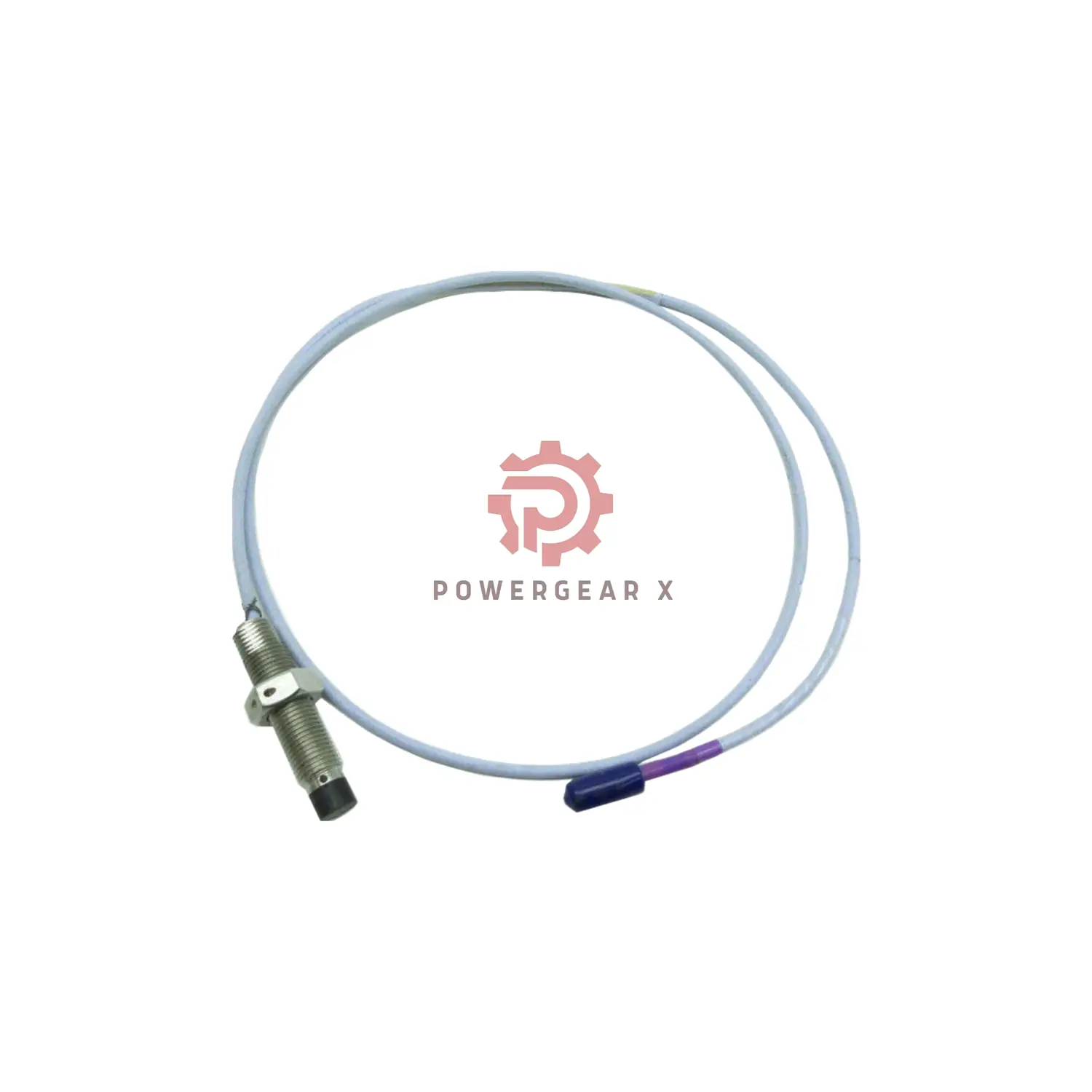

330702-00-24-90-01-00 Bently Nevada | 11 mm Proximity Probe

Bently Nevada 3300 XL 11mm Probe: Long-Reach Vibration Monitoring

Industrial sensor with extra-long cable for hard-to-reach areas. Full specifications:

• Download Vibration Sensor Guide (PDF)

Key Advantages

• 9-meter cable for distant installations
• Stainless steel armor protection
• Works in extreme cold/heat: -51°C to +177°C
• ClickLoc connector with protector

Model Code Details

Full Part Number: 330702-00-24-90-01-00

• ◉ 330702: 11mm armored probe
• ◉ 00: 0″ unthreaded length
• ◉ 24: 2.4″ case length
• ◉ 90: 9.0 meter cable
• ◉ 01: Standard cable
• ◉ 00: No approvals needed

Technical Specifications

• Resistance: 8.5Ω ±1.1
• Cable Type: 75Ω triaxial FEP
• Thread: 1/2-20 UNF
• Max Torque: 15.2 N•m (133 in•lb)
• Bend Radius: 25.4mm min
• Weight: 0.17 kg

Environmental Protection

• Case: AISI 304 stainless steel
• Tip: Chemical-resistant PPS
• Seal: Viton O-ring
• Warning: Avoid below -34°C

Shipping & Warranty

• Delivered by: FedEx • UPS • DHL
• 12-month warranty
• Made in USA

Installation FAQs

Q: Can I use this outdoors?
A: Yes – temperature range supports outdoor use.

Q: Difference between standard and FluidLoc?
A: Standard cable isn’t waterproof – FluidLoc is.

Q: Max cable distance?
A: 9m standard – no extensions needed.

Q: Thread engagement depth?
A: Max 0.750 inch (19mm).

Q: Calibration required?
A: Pre-calibrated – ready for installation.
