Product details

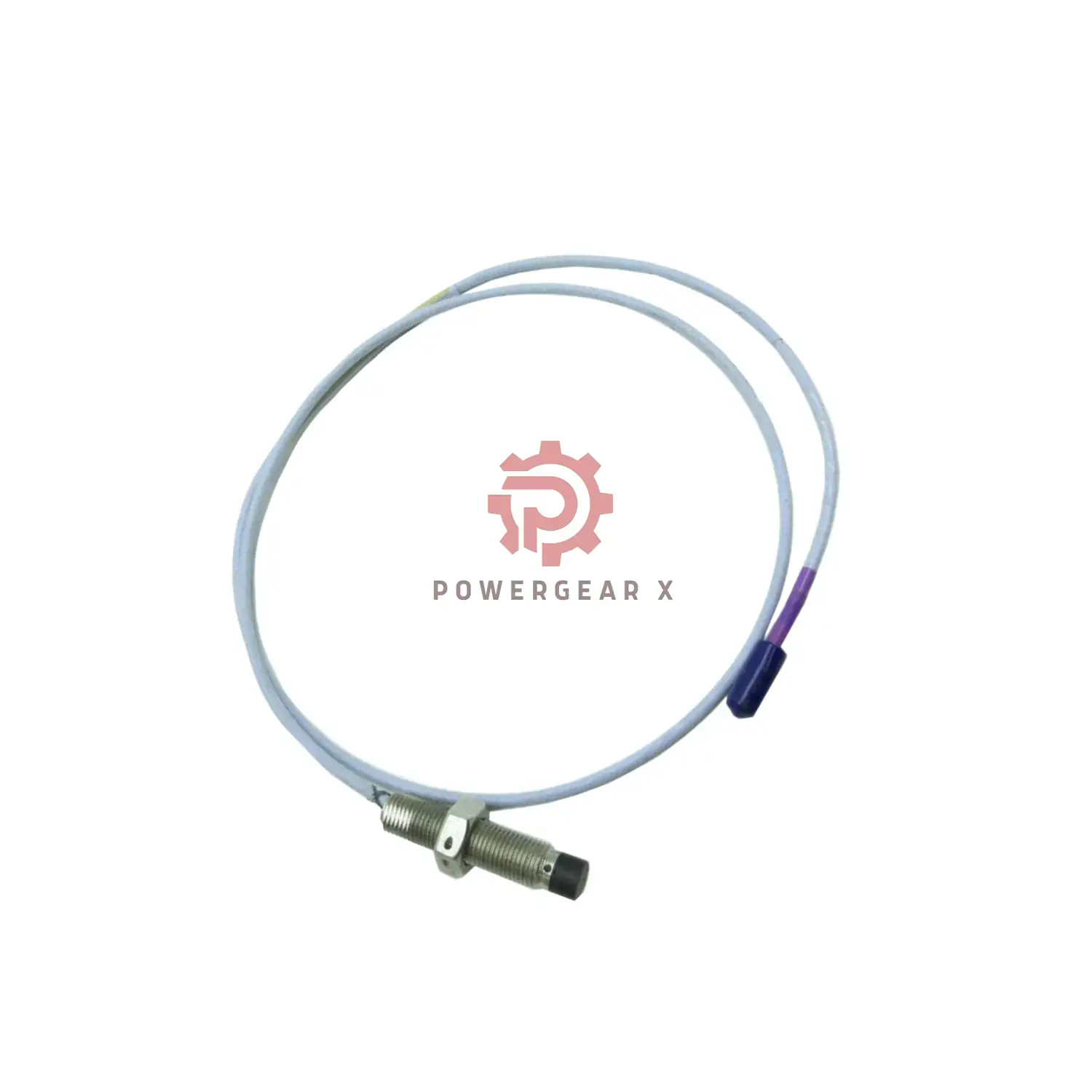

Bently Nevada 3300 XL 11mm Probe – 5m FluidLoc Vibration Sensor
Industrial 5-meter proximity probe with FluidLoc cable protection. Designed specifically for use with 5m Proximitor sensors.
Main Features
- 5-meter FluidLoc cable – Oil and chemical resistant
- 2.4-inch stainless steel case – Durable construction
- Precision measurement – 7.2Ω ±0.8Ω accuracy
- Wide temperature range – Works from -51°C to +177°C
- ClickLoc connector – Secure, tool-free installation
Product Details
- Part Number: 330702-00-24-50-11-00
- Base model: 330702
- Unthreaded length: 0 inches (00)
- Case length: 2.4 inches (24)
- Cable length: 5 meters (50)
- Connector type: ClickLoc with protector (11)
- Approvals: Standard (00)
Technical Specifications
- Electrical resistance: 7.2Ω (±0.8Ω)
- Thread size: 1/2-20 UNF
- Recommended torque: 15.2 N•m (133 in-lb)
- Cable type: 75Ω triaxial FEP
- Minimum bend radius: 25.4mm (1 inch)
- Weight: 0.17kg
Package Contents
- 1 × Bently Nevada 3300 XL Probe (5m cable)
- 12-month warranty
Frequently Asked Questions
- Q: Can I use this with 1m Proximitor?
A: No, designed only for 5m Proximitor - Q: Is the cable replaceable?
A: No, cable is permanently attached - Q: How to clean the probe?
A: Wipe with clean cloth, avoid solvents - Q: What’s the cable material?
A: FEP-insulated triaxial cable - Q: Can it handle steam environments?
A: Yes, up to +177°C (+351°F)
