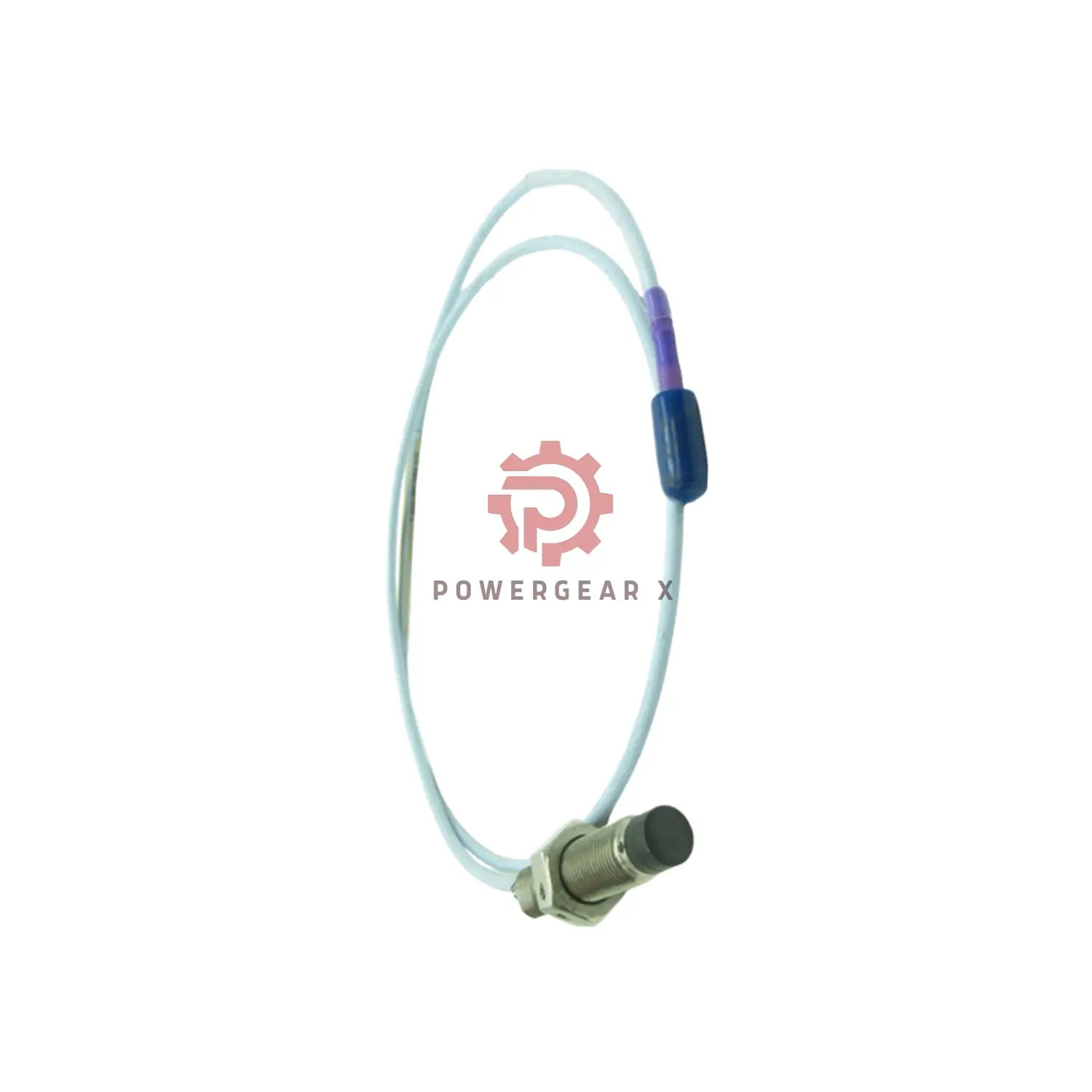

Precision 3300 XL Proximity Probe for Machinery Monitoring
Complete Model Breakdown
Base: 330702
→ 00: 0″ unthreaded section
→ 24: 2.4″ case length
→ 10: 1.0 meter cable
→ 01: ClickLoc connector with protector
→ 05: Multiple agency approvals
→ 00: 0″ unthreaded section
→ 24: 2.4″ case length
→ 10: 1.0 meter cable
→ 01: ClickLoc connector with protector
→ 05: Multiple agency approvals
Technical Specifications
- Cable Type: 75Ω triaxial with FEP insulation
- Resistance: 5.9Ω ±0.5Ω (center to outer conductor)
- Thread: 1/2-20 UNF (max 0.75″ engagement)
- Safe Torque: 15.2 N•m (133 in•lb)
- Bend Radius: 25.4 mm minimum
- Seal Material: Viton O-ring
- Weight: 0.17 kg
Environmental Protection
- Operating Range: -51°C to +177°C (-60°F to +351°F)
- Seal Warning: Keep above -34°C during installation
- Stainless steel armor protects against physical damage
Shipping & Support
- 🚚 Fast worldwide shipping: FedEx, UPS, DHL
- 🔒 12-month warranty
Expert FAQs
- Q: Can I use this in sub-zero environments?
A: Yes, but avoid installation below -34°C to protect seal - Q: What certifications does it have?
A> Multiple international approvals (suffix 05) - Q: Is the cable crush-resistant?
A: Yes, stainless steel armor provides mechanical protection - Q: What’s the electrical specification?
A: 75Ω triaxial cable with 5.9Ω ±0.5Ω resistance - Q: How should I handle the connector?
A: Use finger-tight torque only (max 0.565 N•m)
