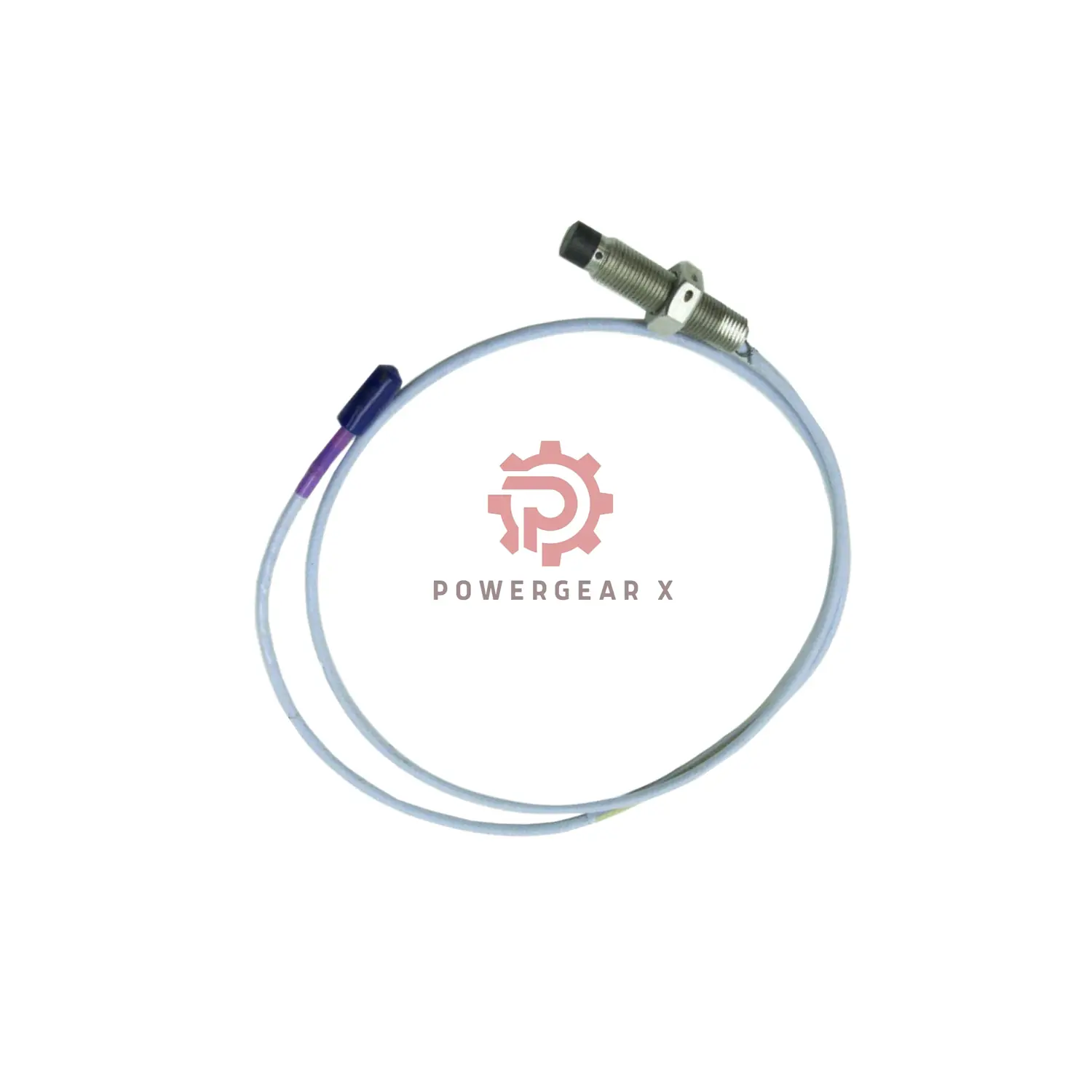

330702-00-24-10-01-00 Bently Nevada | 11 mm Proximity Probe

Bently Nevada 3300 XL Proximity Probe – Reliable Machinery Monitoring

Product Number Details

Full Number: 330702-00-24-10-01-00

• 330702 – Base model
• 00 – 0 inch unthreaded length
• 24 – 2.4 inch case length
• 10 – 1.0 meter cable
• 01 – ClickLoc connector with protector
• 00 – No agency approvals needed

Technical Specifications

• Cable Resistance: 5.9Ω ±0.5Ω
• Thread Size: 1/2-20 UNF
• Max Thread Engagement: 0.75 inch
• Recommended Torque: 15.2 N•m (133 in•lb)
• Cable Bend Radius: 25.4 mm minimum
• Connector Torque: Finger tight only
• Shipping Weight: 0.17 kg

Environmental Ratings

• Operating Temperature: -51°C to +177°C
• Seal Material: Viton O-ring
• Installation Warning: Do not install below -34°C
• Case Material: AISI 304 stainless steel

Order Information

• Made in USA
• Shipping: FedEx, UPS, DHL
• Warranty: 12 months

Technical FAQs

• Q: What is the cable length option?
  A: This model has 1.0 meter cable (suffix 10)
• Q: Does it need special approvals?
  A: No agency approvals required (suffix 00)
• Q: What is the probe tip made of?
  A: Polyphenylene sulfide (PPS) material
• Q: How should I handle the connector?
  A: Tighten by hand only – never use tools
• Q: What is the electrical resistance?
  A: 5.9 ohms ±0.5 ohms center to outer conductor
