330702-00-10-90-01-00 | Bently Nevada 11 mm Proximity Probe

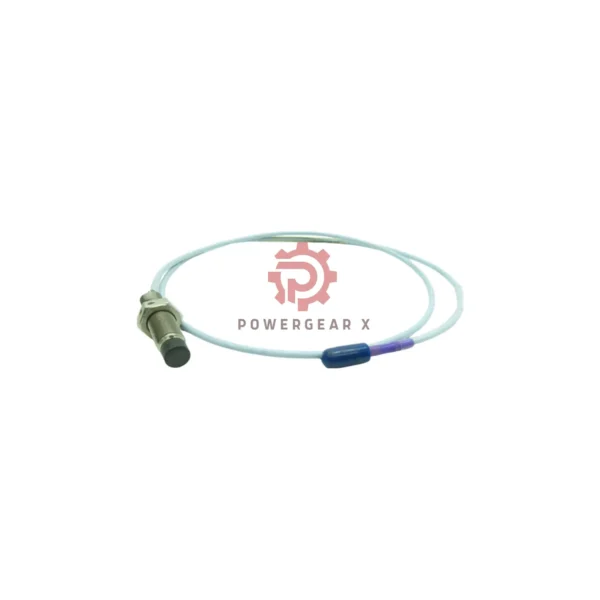

Bently Nevada 330702 Armored Probe with 9m Standard Cable

Rugged industrial monitoring for critical machinery. Made in USA. Global shipping.

Part Number Decoded

• 330702 → Armored probe body
• 00 → 0″ unthreaded section
• 10 → 1.0″ case length
• 90 → 9m cable (29.5 ft)
• 01 → Standard ClickLoc connector
• 00 → No special approvals needed

Technical Specifications

• Part: 330702-00-10-90-01-00
• Resistance: 8.5Ω ±1.1Ω
• Cable: 9m triaxial (75Ω)
• Thread: 1/2-20 UNF or M16x1.5
• Bend radius: >25.4mm (1.0″)
• Weight: 0.17kg (0.37 lbs)
• Seal: Viton O-ring
• Install torque: 15.2 N•m max

Installation Guide

• Apply 15.2 N•m torque to case
• Hand-tighten connectors only
• Keep above -34°C to protect seals
• Maintain minimum bend radius

Shipping & Support

• 12-month warranty
• Global carriers: FedEx, UPS, DHL
• Ships same day

Expert FAQs

• Q: What does “armored” protect against?
  A: Physical damage in harsh industrial areas
• Q: Cable length options?
  A: 1m, 5m, or 9m (this is 9m)
• Q: Thread compatibility?
  A: 1/2-20 UNF (0.75″ max) or M16x1.5 (24mm)
• Q: Can I use in food processing?
  A: Yes – SST construction meets requirements
• Q: Pressure rating?
  A: Contact for custom pressure testing
