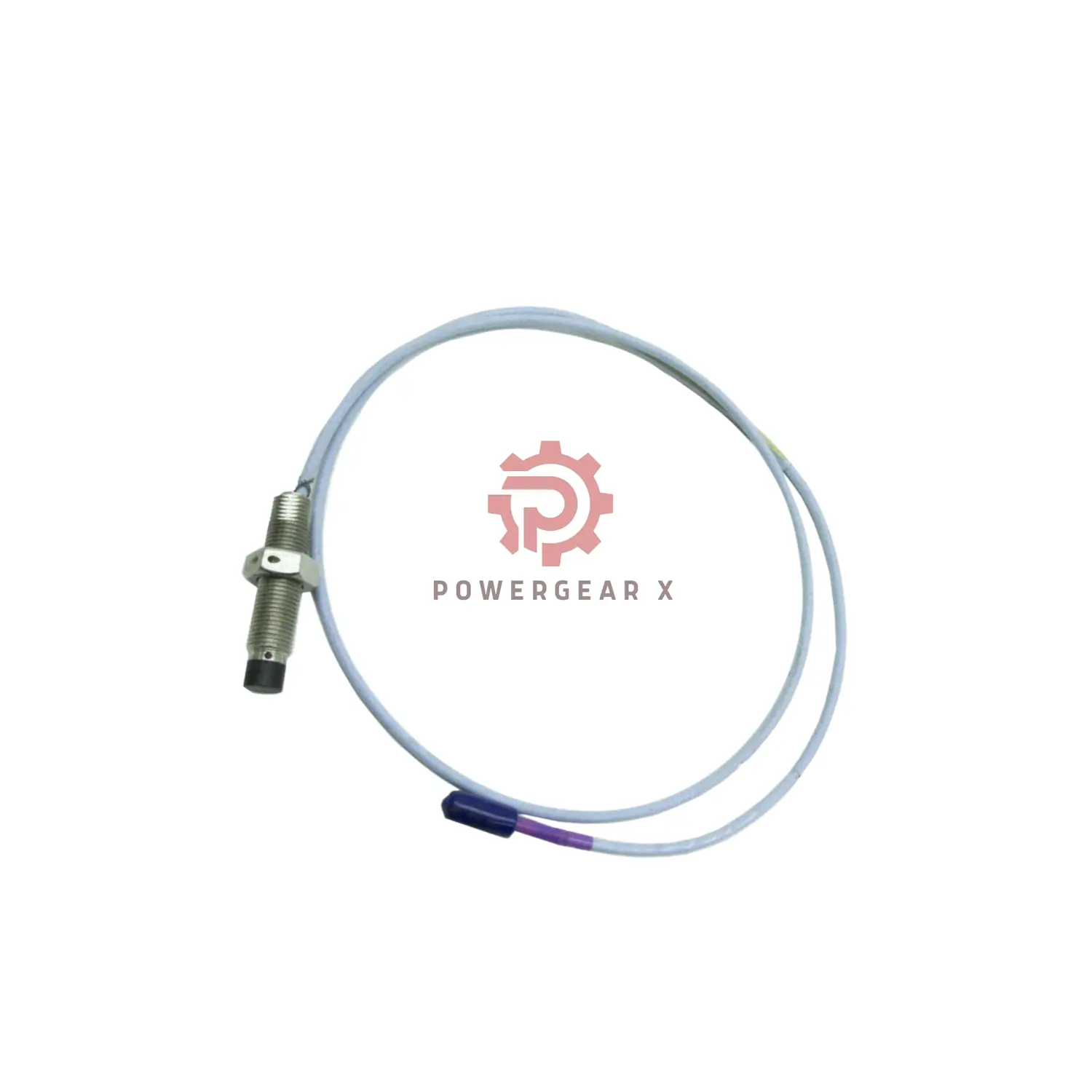

330702-00-10-10-02-05 | Bently Nevada 11 mm Proximity Probe

Bently Nevada 3300 XL 1m Proximity Probe – Industrial Vibration Monitoring

Premium 11mm vibration sensor with 1m armored cable and 1/2-20 UNF thread. Perfect for tight spaces with its compact 1.0″ case. Works in extreme conditions (-51°C to +177°C). Model: 330702-00-10-10-02-05.

Complete Specifications

• Part Number: 330702-00-10-10-02-05
• DC Resistance: 5.9 ± 0.5 ohms
• Thread Size: 1/2-20 UNF
• Max Torque: 400 in-lb (45.2 N•m)
• Recommended Torque: 133 in-lb (15.2 N•m)
• Cable Type: 75Ω triaxial with FEP insulation
• Bend Radius: 1.0 inch minimum

Part Number Breakdown

• 330702: Base model number
• 00: 0 inch unthreaded length
• 10: 1.0 inch case length
• 10: 1.0 meter cable
• 02: ClickLoc connector
• 05: Multiple agency approvals

Important Usage Information

• 12 month warranty
• Fast shipping via FedEx, UPS, or DHL
• Do not expose to temperatures below -34°C
• Finger-tight connector installation (max 5 in-lb)

Expert FAQs

• Q: Can I use this probe for high-speed applications?
  A: Yes, it’s designed for high-speed rotating equipment.
• Q: Is the cable oil and chemical resistant?
  A: Yes, the FEP insulation provides excellent chemical resistance.
• Q: What’s the minimum thread engagement?
  A: Minimum 0.750 inch thread engagement required.
• Q: Can I get a pressure-tested unit?
  A: Contact us for custom pressure testing options.
• Q: Is the probe tip replaceable?
  A: No, the PPS tip is permanently mounted.

Get More Information

• Download product manual – Full installation guide
• Download specifications – Detailed technical data
