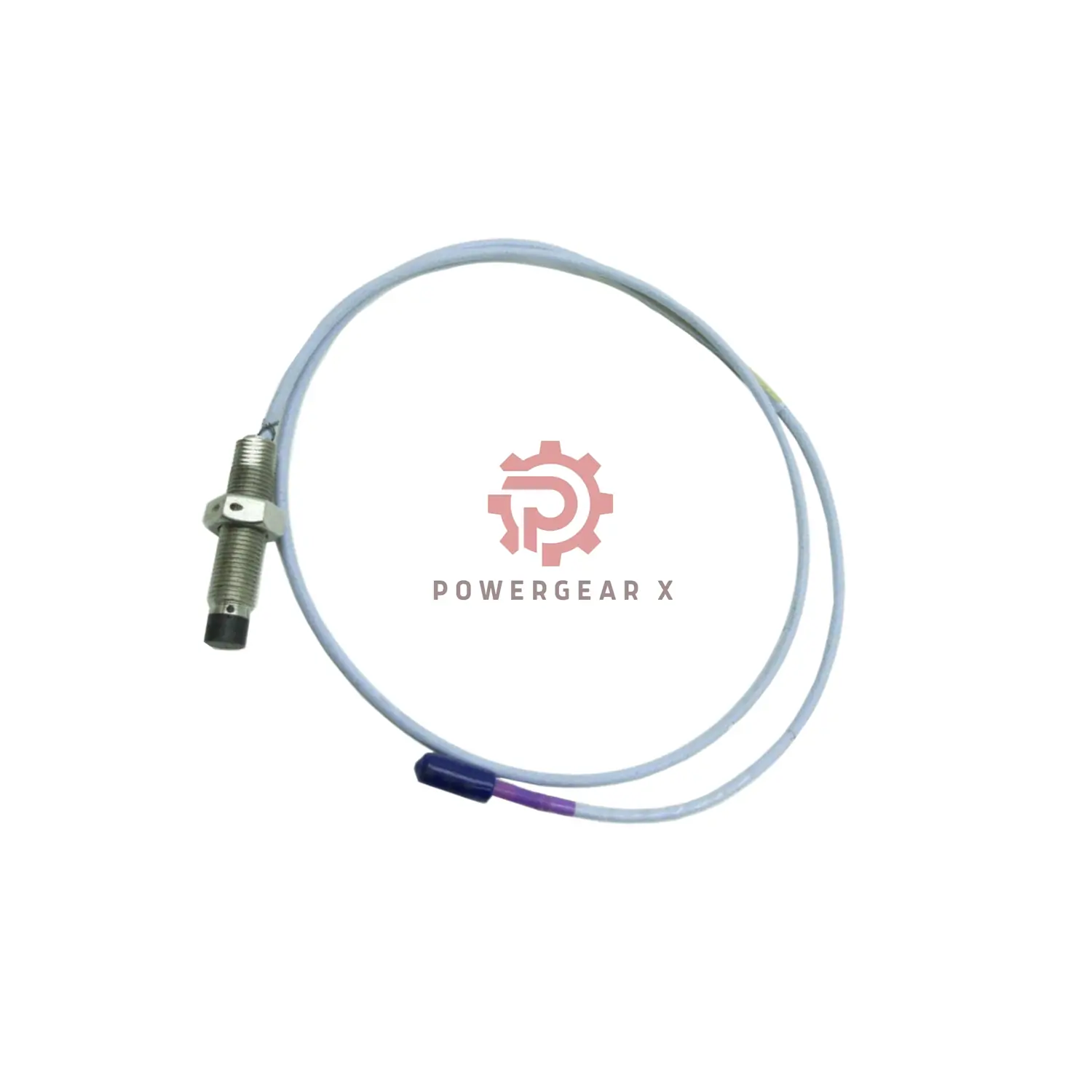

Bently Nevada 3300 XL 11mm Proximity Probe – Precision Vibration Monitoring
Industrial-grade vibration sensor for critical machinery protection. Made in USA with extreme temperature resistance and chemical-resistant materials. Download full specifications:
Complete Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Proximity Probe
- Full Part No: 330701-00-24-10-11-00
- Resistance: 5.9 ± 0.5 ohms
- Cable: 75 Ω triaxial FEP insulation
- Thread: 1/2-20 UNF (0.75″ max engagement)
- Case Torque: 15.2 N•m recommended (45.2 N•m max)
- Bend Radius: 25.4mm minimum
- Seal Material: Viton O-ring
- Weight: 0.17kg
Installation Guide
- Apply maximum 15.2 N•m torque to case
- Hand-tighten connectors (max 0.565 N•m)
- Maintain minimum 1″ cable bend radius
- Avoid temperatures below -34°C during installation
- Max thread engagement: 0.750″ (19mm)
Compatibility
- Bently Nevada 3300 monitoring systems
- Machinery with 1/2-20 UNF mounting threads
- Miniature coaxial ClickLoc interfaces
Certifications & Options
- Agency approvals: Not required (option 00)
- Conforms to industrial safety standards
Packaging & Warranty
- 1 x Proximity probe with connector protector
- 12-month warranty
- Shipping: FedEx, UPS, DHL worldwide
- Net weight: 0.17kg
Frequently Asked Questions
- Q: Can this probe handle high-pressure environments?
A: Features Viton seals but not pressure-tested – contact for custom validation - Q: What cable lengths are available?
A: Standard 1.0m (part 10), 5m and 9m options - Q: Is it suitable for food processing plants?
A: Yes – SST construction meets sanitary requirements
