Product details

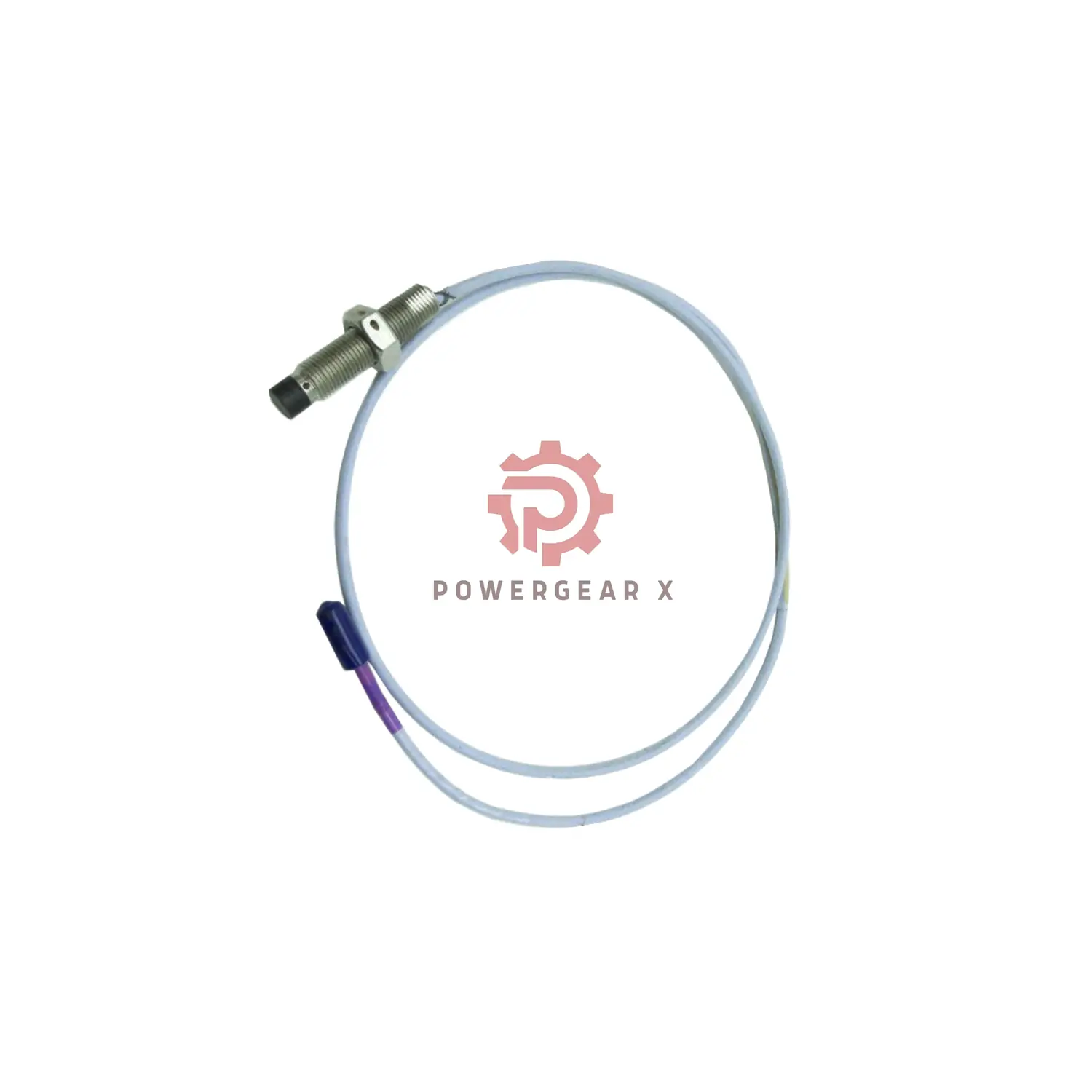

Bently Nevada 3300 XL Industrial Vibration Monitor
The 330701-00-15-10-02-05 proximity probe combines a 1.5-inch stainless steel case with global certifications. Operating in -52°C to +177°C extremes, this 1-meter cable version detects micrometric vibrations for critical machinery protection.
Precision Engineering
| Thread Type | 1/2-20 UNF + M16x1.5 |
| Seal Material | Viton O-ring (pressure untested) |
| Current Load | 8-12mA @ 24VDC |
| Insulation | FEP triple-layer |
Model Identifier Map
330701 › 00 › 15 › 10 › 02 › 05
│ │ │ │ │ └─ Global Certifications
│ │ │ │ └── Standard ClickLoc
│ │ │ └───── 1m Cable
│ │ └──────── 1.5″ Case
│ └────────── 0in Unthreaded
└───────────── Base Model
│ │ │ │ │ └─ Global Certifications
│ │ │ │ └── Standard ClickLoc
│ │ │ └───── 1m Cable
│ │ └──────── 1.5″ Case
│ └────────── 0in Unthreaded
└───────────── Base Model
Failure Prevention
→ Paper mill dryer bearing wear alerts
→ Chemical reactor stirrer imbalance detection
→ Aircraft engine test stand monitoring
→ Hydraulic press ram position tracking
Mounting Protocol
1. Clean M16x1.5 threads with isopropyl alcohol
2. Apply 15.2N·m torque using calibrated wrench
3. Route cable 20cm from rotating parts
4. Verify 5.4-6.4Ω resistance before power
Box Contents
◉ Vibration probe (1.0m)
◉ Thread protection caps (2pc)
◉ Torque specification card
◉ Multi-approval documentation
