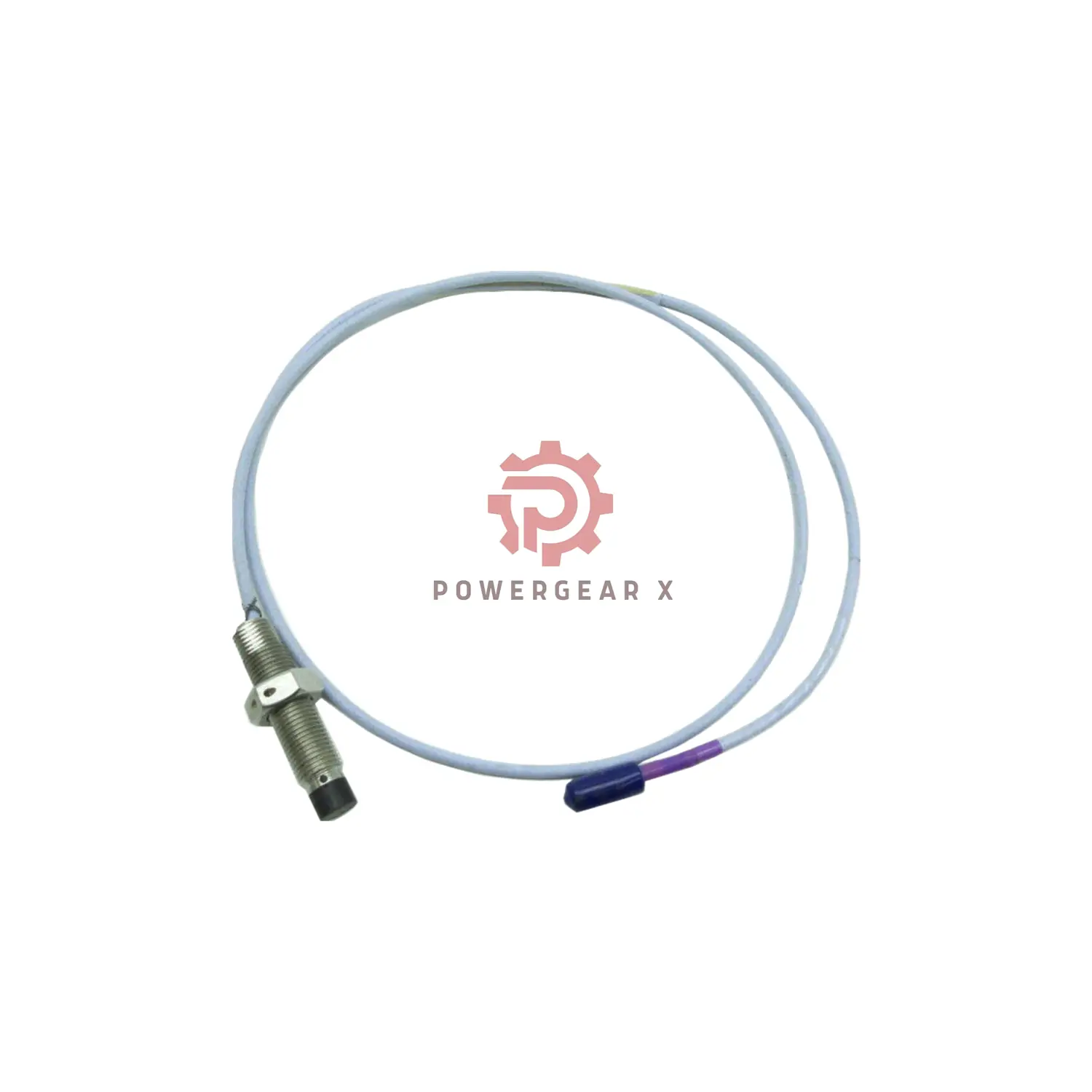

Bently Nevada 3300 XL Proximity Probe – 5m FluidLoc Cable Version
Industrial-grade vibration monitoring with special FluidLoc cable. Made in USA. Ships worldwide.
Part Number Decoder
- 330701 – Base model
- 00 – 0″ unthreaded section
- 10 – 1.0″ case length
- 50 – 5m cable (16.4 ft)
- 12 – FluidLoc cable with ClickLoc connector
- 00 – Standard approval
Key Advantages
- Special FluidLoc cable for wet areas
- Works with 5m Proximitor sensors only
- High-temp PPS tip (-51°C to +177°C)
- Stainless steel body
- Easy ClickLoc connection
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 11mm Probe
- Part No: 330701-00-10-50-12-00
- Cable: 5m FluidLoc triaxial (75Ω)
- Resistance: 7.2Ω ±0.8Ω
- Thread: 1/2-20 UNF (0.75″ max)
- Case torque: 15.2 N•m recommended
- Bend radius: >25.4mm (1.0″)
- Seal material: Viton O-ring
Installation Notes
- For use only with 5m Proximitor sensors
- Apply 15.2 N•m max torque during install
- Hand-tighten connectors only
- Keep above -34°C to protect seals
Shipping & Support
- 12-month product warranty
- Global delivery: FedEx, UPS, DHL
- Weight: 0.17kg (0.37 lbs)
Professional FAQs
- Q: Why special 5m version?
A: Matches 5m Proximitor sensor length requirements - Q: FluidLoc benefits?
A: Extra moisture protection in humid/wet areas - Q: Minimum temperature?
A: Don’t expose below -34°C to prevent seal damage - Q: Thread compatibility?
A: Standard 1/2-20 UNF (0.75″ max thread depth) - Q: Cable replacement?
A: Not recommended – use as complete assembly
