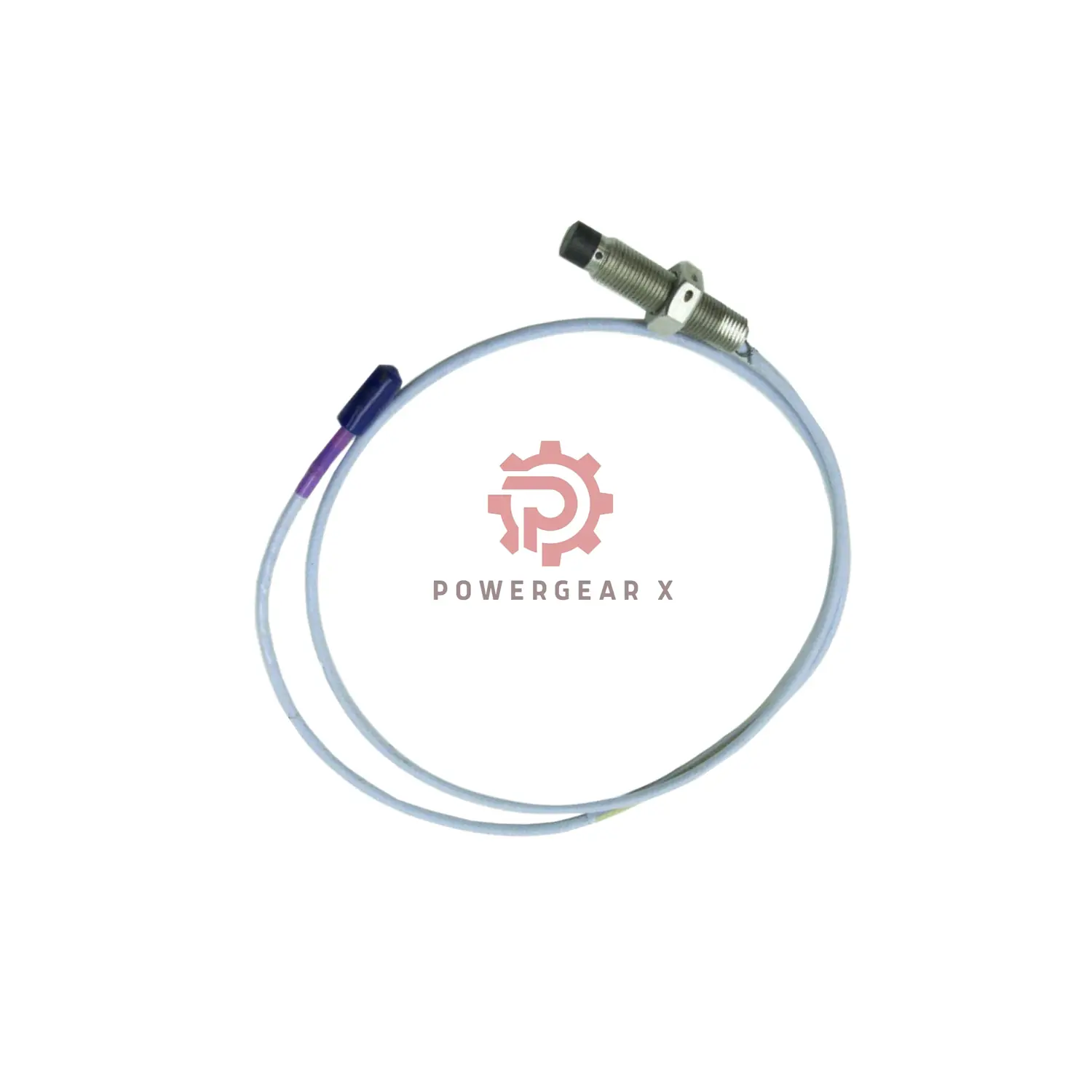

Bently Nevada FluidLoc Proximity Sensor with Multi-Certification
Industrial-grade 11mm vibration probe with hazardous area approvals. Features FluidLoc cable for wet environments. Made in USA.
Complete Model Breakdown
- Full Product ID: 330701-00-10-10-12-05
- Base: 3300 XL 11mm Probe
- Thread: 1/2-20 UNF
- Cable: 1.0m FluidLoc (oil resistant)
- Connector: ClickLoc miniature coaxial
- Certifications: Multiple agency approvals
Key Technical Specifications
- Resistance: 5.9Ω ±0.5 (center to outer)
- Sensing Diameter: 11mm
- Temp Range: -51°C to +177°C
- Min Bend Radius: 25.4mm (1 inch)
- Thread Engagement: Max 0.750 inch
- Cable Type: 75Ω triaxial FEP
Special Features
- FluidLoc oil-resistant cable
- Multiple agency certifications (suffix 05)
- Stainless steel AISI 304 housing
- Viton O-ring pressure seal
- Factory calibrated
Installation & Care
- Recommended Torque: 15.2 N•m
- Connector Handling: Finger tight only
- Avoid temperatures below -34°C
- Pressure testing available on request
Package & Support
- 12-month warranty
- Shipping Weight: 0.17kg
- Global Delivery: FedEx • UPS • DHL
Expert FAQs
- What certifications does this model have?
- Suffix 05 indicates multiple agency approvals
- Can FluidLoc cable handle chemicals?
- Yes, resists oils and industrial fluids
- Is this probe intrinsically safe?
- Certifications include hazardous area approvals
- What’s the vibration measurement range?
- Detects movements within 11mm sensing area
- Can I use this in steam turbines?
- Yes, rated up to +177°C (351°F)
