330505-02-02-07 | Bently Nevada Low Frequency Velocity Sensor

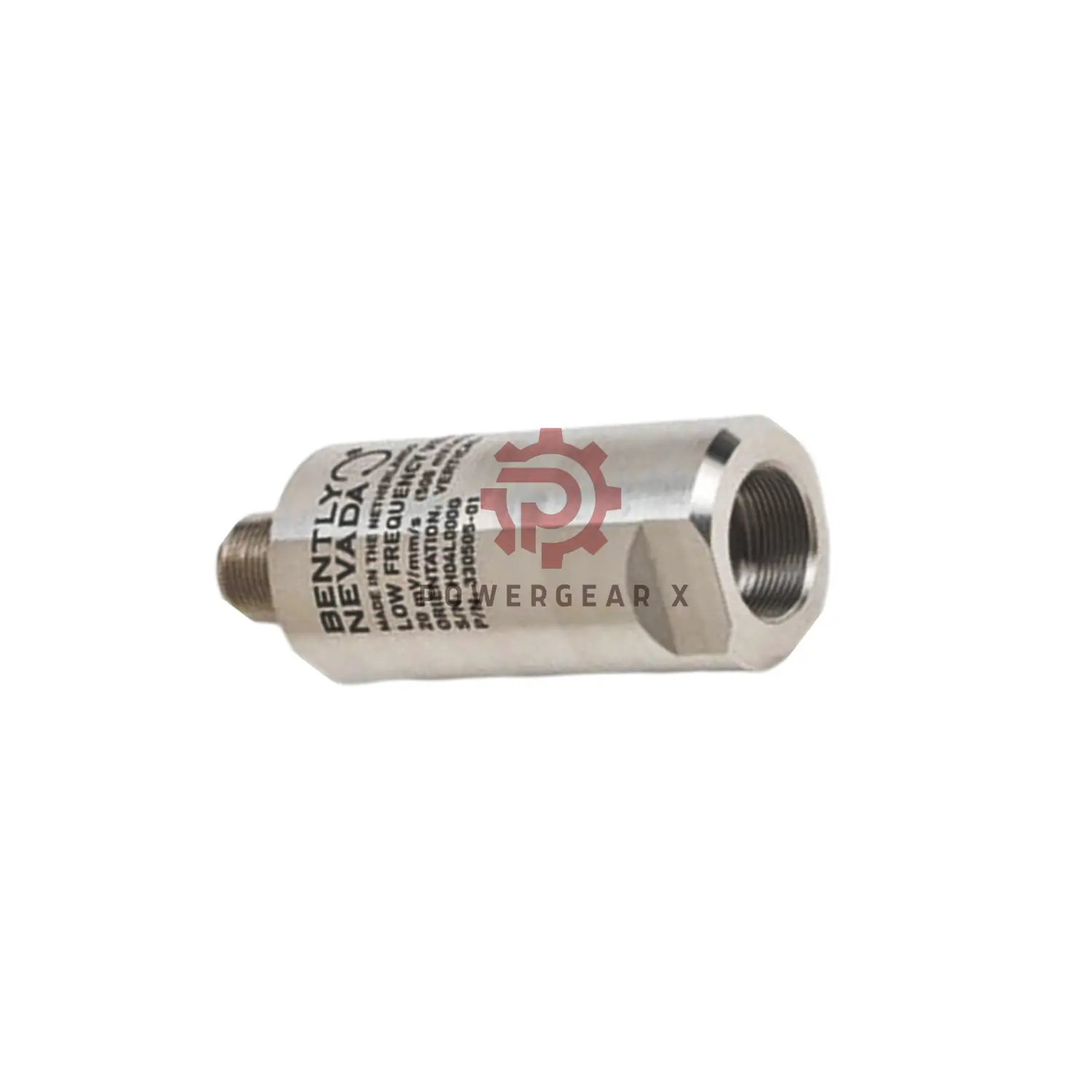

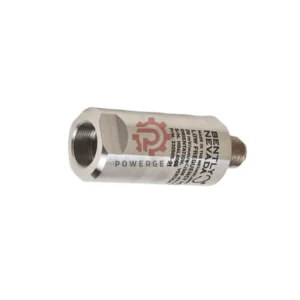

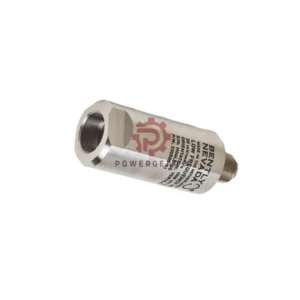

Bently Nevada 330505-02-02-07 Low Frequency Velocity Sensor

Key Technical Parameters

• Velocity Range: 102 mm/s (4 in/s) peak
• Sensitivity: 20 mV/mm/s (508 mV/in/s) ±10%
• Frequency Range: 0.5–1000 Hz ±3 dB, 1–200 Hz ±0.9 dB
• Output Bias Voltage: -12 ±1 VDC
• Amplitude Linearity: ±3%
• Max Cable Length: 305 meters (1000 feet) with 3500/46M
• Operating Temp: -40°C to +100°C
• Shock Limit: 981 m/s² (100g) peak

Mounting Information

• Transducer Angle: 90° ±5°
• Internal Thread: 3/8-24 UNF-2B
• Torque Spec: Max 46 kg·cm (40 in-lb)

Full Model Breakdown

• 330505: Sensor type
• -02: 90° mounting configuration
• -02: Internal thread: 3/8-24 UNF-2B
• -07: Mount adapter: 3/8 – 16 UNC

What’s Included

• 1 x 330505-02-02-07 Sensor
• Original factory packaging
• 12-month warranty (certificate not included)

Warranty

• 12 months of manufacturer warranty
