330505-02-02-05 | Bently Nevada Low Frequency Velocity Sensor

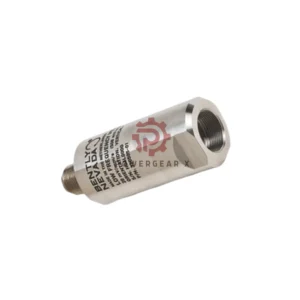

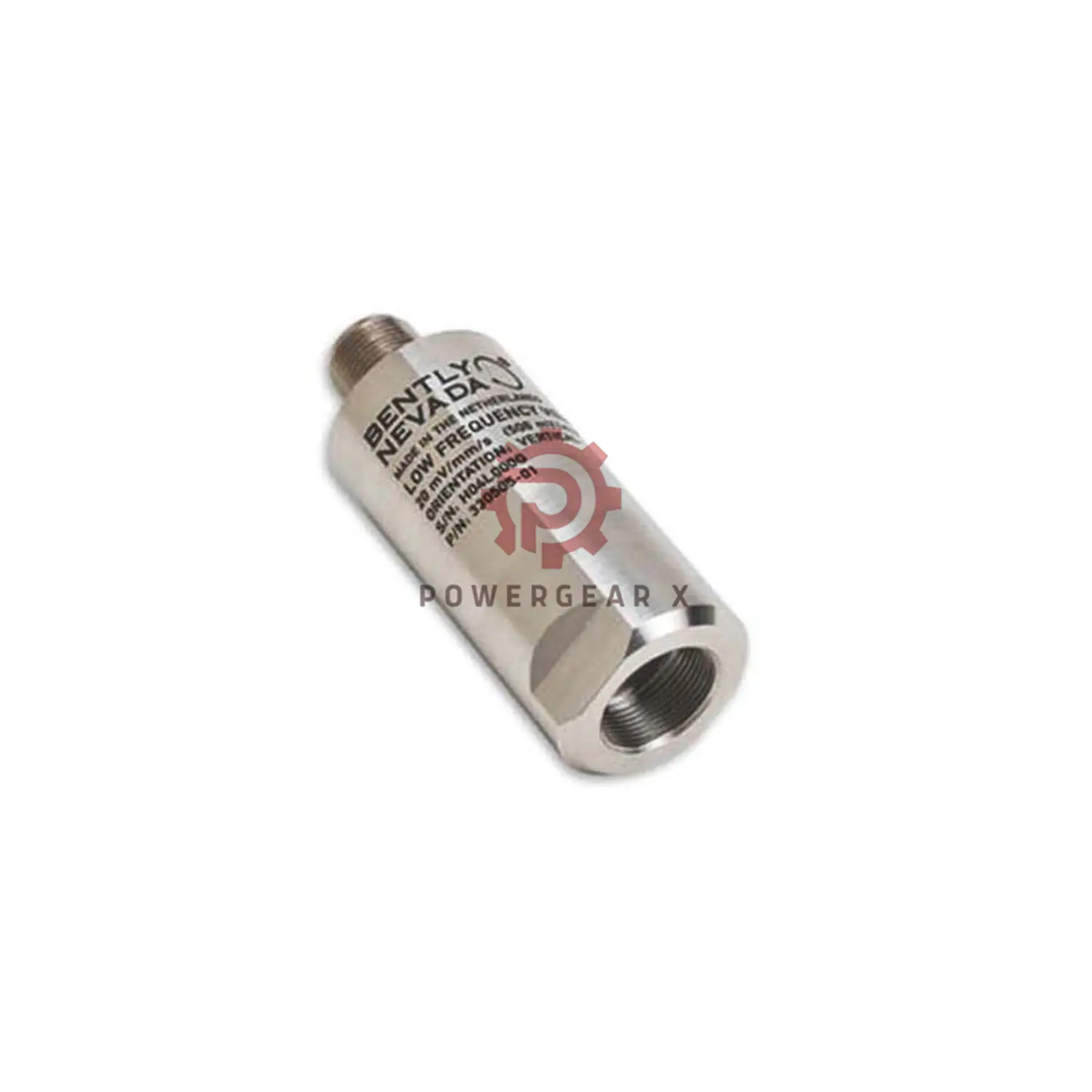

Bently Nevada 330505-02-02-05 Low Frequency Velocity Sensor

Key Technical Specs

• Range & Sensitivity: 102 mm/s (4 in/s) peak; Sensitivity 20 mV/mm/s ±10%
• Frequency Response: 0.5–1000 Hz ±3 dB; 1–200 Hz ±0.9 dB
• Output Signal: Bias Voltage -12 ±1 VDC
• Operating Temp: -40°C to +100°C (-40°F to +212°F)
• Shock Resistance: 981 m/s² (100g) peak
• Humidity: 100% non-submerged; hermetically sealed

Installation Instructions

• Mounting Angle: 90° ± 5°
• Thread Size: 3/8-24 UNF-2B with 1/4-18 NPT adapter
• Mounting Torque: Max 46 kg·cm (40 in-lb)

Model Breakdown

• 330505: Low Frequency Velocity Sensor
• -02: Mounting angle 90° ± 5°
• -02: Thread 3/8-24 UNF-2B
• -05: Mounting adapter 1/4-18 NPT

Package Contents

• One sensor 330505-02-02-05
• Original factory packing
• Note: No certificates included

Shipping & Delivery

• Fast shipping via FedEx, UPS, DHL
• Secure and insured delivery

Benefits

• Long cable use without signal loss
• High resistance to shock and humidity
• Easy to install and maintain

Warranty

• 12 months factory warranty
