Product details

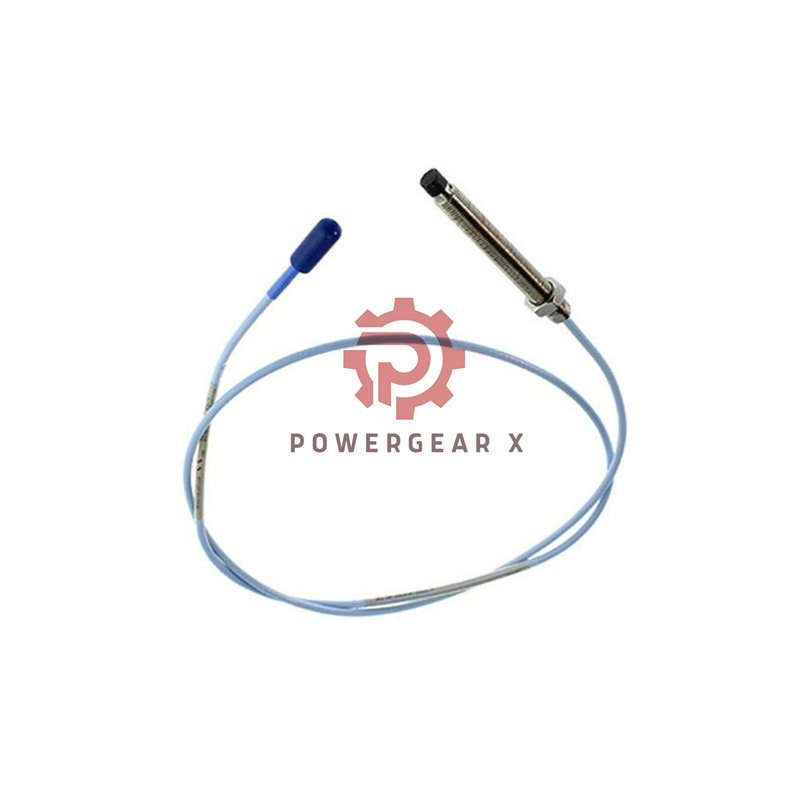

Bently Nevada 330191 Compact Proximity Probe – Country Specific Configuration
Discover the specialized Bently Nevada 330191-40-75-05-CN 3300 XL 8mm ETR probe with extended case and compact cable. This country-specific approved sensor offers precise machine monitoring in space-constrained installations. The unique configuration provides maximum flexibility for specialized applications.
Exact Technical Measurements
- Manufacturer: Bently Nevada
- Complete Model: 330191-40-75-05-CN
- Power Supply Range: -17.5 Vdc to -26 Vdc
- Output Resistance: Precisely 50 Ω
- Probe Resistance: 7.45 ± 0.50 Ω
- Maximum Current: 12 mA total
- Supply Sensitivity: Under 2 mV/V
- Temperature Capability: -55°C to +232°C
- Tip Material: PPS plastic molded
- Case Material: 303/304 stainless steel
- Cable Type: 75Ω triaxial FEP
- Cable Length: 0.5 meter (1.6 feet)
- Total Case Length: 7.5 inches
- Unthreaded Length: 4.0 inches
- Thread Specification: 3/8-24 UNF
- Maximum Torque: 0.565 N•m
- Weight: 323 grams per meter
- Tensile Strength: 330 N probe to cable
Model Number Explanation
- 330191 – Core Probe Identification
- 40 – 4.0 Inch Unthreaded Length
- 75 – 7.5 Inch Overall Case
- 05 – 0.5 Meter Cable Length
- CN – Country Specific Approval
Approval Information
- Country-specific certifications available
- Custom approval for regional requirements
- EPL Ga and Gc classifications supported
- T1 through T5 temperature ratings
- Regional compliance documentation included
Shipping & Handling
- Original factory packaging intact
- Quick dispatch from available stock
- FedEx express delivery options
- UPS ground and air services
- DHL international shipping
- Real-time tracking provided
Documentation Download
- Complete technical specifications
- Installation and mounting guidelines
- Performance characteristics
- Application recommendations
- Download Complete Product Datasheet
Application Questions
- What does country-specific approval mean?
This probe meets specific certification requirements for particular countries or regions beyond standard international certifications.
- Why choose a short cable with extended case?
The combination allows deep mounting while keeping cable runs minimal in compact equipment layouts.
- Can this probe handle high-vibration applications?
Yes, the robust 8mm design and secure cable attachment make it suitable for vibrating machinery.
- What industries use this specific configuration?
Manufacturing, power generation, and industrial processing with space constraints prefer this setup.
- How do I determine the right approvals for my country?
Contact our technical team with your location details for specific certification guidance and requirements.
Need country-specific certified probes for your region? Reach our experts at sales@powergearx.com or +86 18030005825 for detailed information about the Bently Nevada 330191 probe and approval options.
