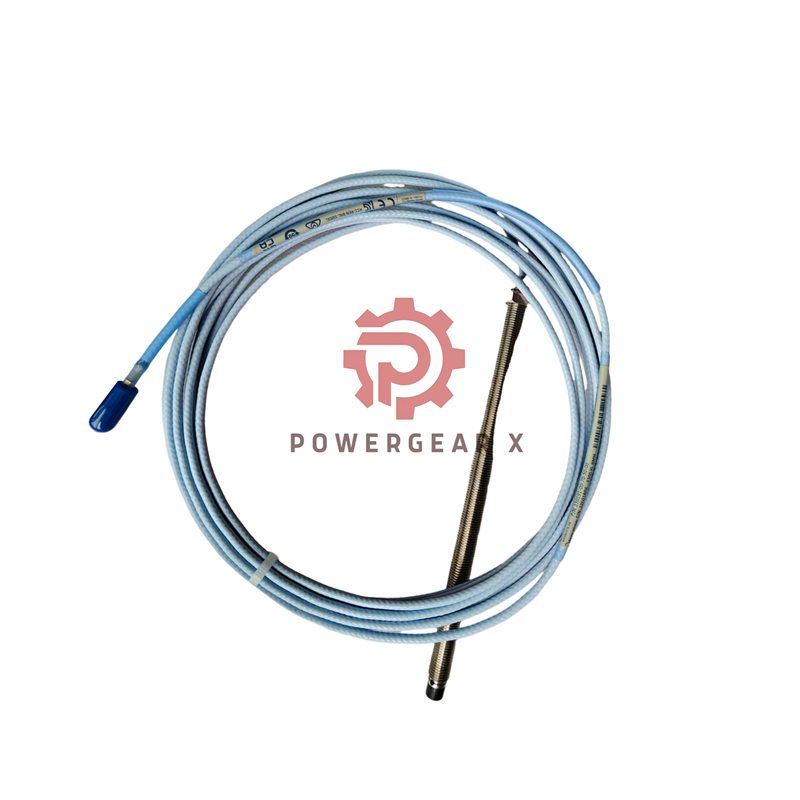

Introducing the Bently Nevada 3300 XL Proximity Probe
Discover the 330191-00-40-10-05 from Bently Nevada, a high-performance 8mm ETR proximity probe. This robust sensor offers reliable industrial monitoring with advanced sealing and durability features. Engineers trust this probe for critical machinery protection in harsh environments. Its innovative design ensures accurate measurements and long-term stability. The probe delivers exceptional performance under extreme temperature conditions.
Core Product Specifications
- Brand: Bently Nevada
- Model: 330191-00-40-10-05 (3300 XL Series)
- Probe Diameter: 8 mm ETR Design
- Power Supply: -17.5 Vdc to -26 Vdc Range
- Output Resistance: 50 Ω Standard
- Probe DC Resistance: 7.59 ± 0.50 Ω at 1.0m
- Supply Sensitivity: Under 2 mV per Voltage Change
- Temperature Range: -55°C to +232°C Maximum
- Case Material: AISI 303/304 Stainless Steel
- Tip Material: Molded PPS Plastic
Configuration Options
- Part Number Breakdown:
- 330191: Base Model (3300 XL 8mm ETR Probe)
- 00: 0.0 Inch Unthreaded Length
- 40: 4.0 Inch Overall Case Length
- 10: 1.0 Meter Total Cable Length
- 05: CSA, ATEX, IECEx Agency Approvals
- Thread Specification: 3/8-24 UNF Without Armor
- Cable Options: Standard FEP or Extended Temperature PFA
- Sealing System: Viton O-Ring Differential Pressure Seal
Design Enhancements
- Patented TipLoc Molding for Superior Tip-Body Bonding
- CableLoc Technology Provides 330 N Pull Strength
- Optional FluidLoc Cable Prevents Internal Fluid Leakage
- Thicker 8mm Probe Tip Encapsulation for Maximum Durability
- Gold-Plated Connectors Ensure Reliable Signal Transmission
- Stainless Steel Case Resists Physical Damage and Corrosion
Installation Guidelines
- Maximum Connector Torque: 0.565 N•m (5 in•lbf)
- Thread Engagement: 0.563 Inch Maximum Length
- Use With Bently Nevada Extension Cables for Optimal Performance
- Install According to Drawing 140979 for Nonincendive Circuits
- Maintain -23 Vdc to -26 Vdc When Using Barrier Systems
- Avoid Voltage Above -23.5 Vdc to Preserve Linear Range
Packaging & Shipping
- Condition: New & Original in Factory Sealed Packaging
- Contents: 3300 XL 8mm Probe Unit Only
- Weight: 323 grams per Meter (11.4 oz)
- Carrier Options: FedEx, UPS, DHL Express Shipping
- Delivery: Worldwide Coverage with Tracking Support
Frequently Asked Questions
- What makes the 3300 XL probe more durable?
The 8mm design provides thicker probe tip encapsulation. This creates superior physical abuse resistance compared to smaller probes.
- Does this system require extension cables?
One-meter systems operate without extension cables. Longer configurations need Bently Nevada approved extensions.
- What temperature ranges does this probe support?
It handles -55°C to +232°C for EPL Ga/Gc classifications. Different ratings apply for EPL Dc environments.
- Can the probe withstand industrial fluids?
The optional FluidLoc cable prevents oil and liquid migration. Standard models feature FEP insulation resistance.
- How do I ensure proper signal quality?
Use with genuine Bently Nevada extension cables. Maintain power supply within -23 Vdc to -26 Vdc range.
Ordering Information
- Full Part Number: 330191-00-40-10-05
- Series: 3300 XL Vibration Monitoring System
- Manufacturer: Bently Nevada (Baker Hughes)
- Contact for Pricing: sales@powergearx.com
- Technical Support: +86 18030005825
