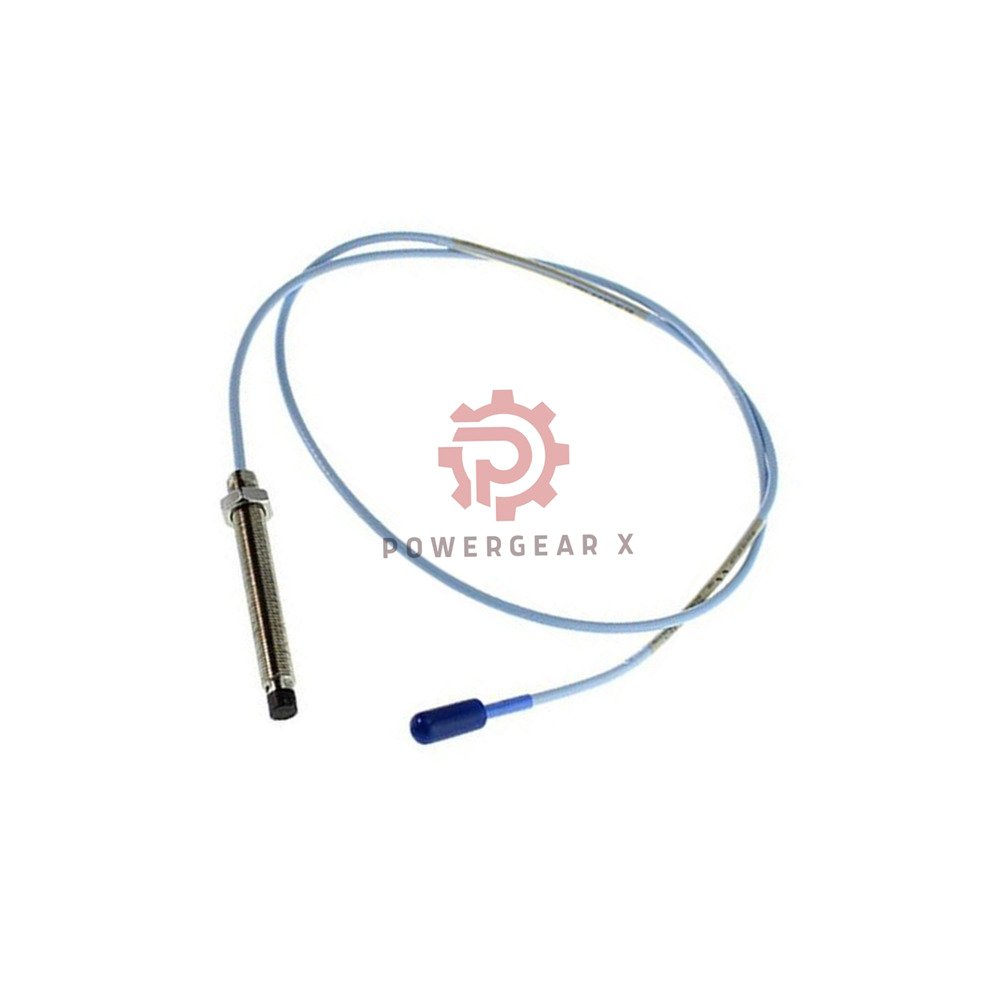

330191-00-33-15-05 Bently Nevada 8 mm Probe – 3300 XL ETR Multiple Approvals

⚙️ Precision 8 mm ETR – Built for Extreme Conditions

• Bently Nevada 330191-00-33-15-05 – part of the 3300 XL 8 mm ETR Proximity Probes family.
• Engineered for high vibration, temperature extremes, and physical abuse in turbines, compressors, gearboxes.
• Patented TipLoc and CableLoc provide 330 N pull strength – no tip or cable separation.
• Fast 12-24 hour dispatch via FedEx, UPS, or DHL from global stock.
• Need help? sales@powergearx.com or WhatsApp +86 18030005825.

📋 Suffix Breakdown – Tree View

• 330191- (base series: 3300 XL 8 mm ETR)
  • 00 → unthreaded length: 0.0 inch (flush mount)
  • 33 → overall case length: 3.3 inch (84 mm)
  • 15 → total cable length: 1.5 meter (4.9 feet)
  • 05 → agency approvals: CSA, ATEX, IECEx (multiple)
• Thread size : 3/8-24 UNF (max engagement 0.563 in)
• Tip material : PPS with TipLoc molding – thicker encapsulation for ruggedness.
• Case material : AISI 304 stainless steel.
• Weight : 323 g/m (11.4 oz per meter).

📊 Core Technical Data

• Power : -17.5 to -26 Vdc, 12 mA max.
• Sensitivity : < 2 mV/V change (stable output).
• Output resistance : 50 Ω.
• DC resistance (1.5 m) : 7.73 Ω ±0.50.
• Standard cable : 75 Ω triaxial, FEP insulated.
• Extended temp cable : PFA insulated (optional).
• Tensile strength : 330 N (75 lbf) case to lead; 270 N at connectors.
• Max connector torque : 0.565 N·m (5 in·lbf).
• Sealing : Viton® O-ring (differential pressure seal).

🌡️ Temperature Class – Probe Only

• EPL Ga/Gc : T1 (-55°C to +232°C) down to T5.
• EPL Dc : T280°C @ Ta up to T90°C @ Ta.
• Extended range available with PFA cable option.

🔩 Installation & Rugged Features

• TipLoc prevents tip separation under extreme vibration.
• CableLoc gives 330 N pull strength – no cable pull-out.
• FluidLoc option blocks oil leakage through cable.
• 8 mm body = thicker PPS + stronger case – ideal for abusive environments.
• 1.5 m system: works with or without extension cable.

✅ Compatibility & Certifications

• Works with all Bently Nevada 3300 XL proximitors and extension cables.
• Approval code 05 : CSA, ATEX, IECEx for hazardous areas worldwide.
• Entity parameters met with BN extension cables & proximitors.
• Target material: AISI 4140 steel (standard).

📦 Package & Warranty

• Includes: 330191 probe with 1.5 m cable, ClickLoc connector.
• Factory test certificate & installation guide.
• 12‑month warranty against defects.
• Dispatch within 12‑24 hours via FedEx, UPS, or DHL (tracking provided).

🧠 Expert Review – Manager’s Insight

• “The 330191-00-33-15-05 is our most versatile 8 mm ETR probe. The 3.3‑inch case length fits most standard industrial ports, and the 1.5 m cable is ideal when the proximitor is a short distance away. With multiple approvals (05), it’s ready for global projects in oil & gas, power, and mining. The TipLoc and CableLoc technologies give it a clear reliability edge over older designs.”
• “For extreme high-temp applications (>177°C), remember to specify the PFA cable option. For oil-prone environments, add FluidLoc.”

❓ Pro FAQ – Selection & Experience

• Why choose the 3.3‑inch case length (33) over other options?The 3.3‑inch case is a medium depth choice – perfect for standard industrial machinery where the mounting hole is neither very shallow nor very deep. It offers flexibility.
• What does approval code 05 cover?05 = CSA (Canada), ATEX (Europe), and IECEx (international). One probe works in all these hazardous areas – simplifies global sourcing.
• Can I use this 1.5 m probe without an extension cable?Yes. 1.5 m is a direct‑connect length – just plug into your proximitor. No extra cable required.
• How does the 12‑month warranty work?We cover manufacturing defects for 12 months. If issues arise, contact sales@powergearx.com for a fast replacement via FedEx/UPS/DHL.
• What’s the difference between this and the 330191-00-08-20-CN?This model (-00-33-15-05) has a 3.3‑inch case, 1.5 m cable, global approvals. The -00-08-20-CN has a 0.8‑inch case, 2.0 m cable, CN approval – choose based on mounting depth and target region.

📊 Compare with Similar 330191 Models

• ▶ 330191-00-33-15-05 (this model) – 3.3‑inch case, 1.5 m cable, multiple approvals. Best for global use, medium depth.
• ▶ 330191-00-08-20-CN – 0.8‑inch case, 2.0 m cable, CN approval. Shallow mount, China projects.
• ▶ 330191-00-08-50-00 – 0.8‑inch case, 5.0 m cable, no approvals. Long cable, non-hazardous use.
• Tip: Match case length to mounting depth, cable length to proximitor distance.

Contact Information
sales@powergearx.com | +86 18030005825 (WhatsApp)

Copyright © 2026 Powergear X Automation Limited. All rights reserved.
Original Source: https://www.powergearx.com/

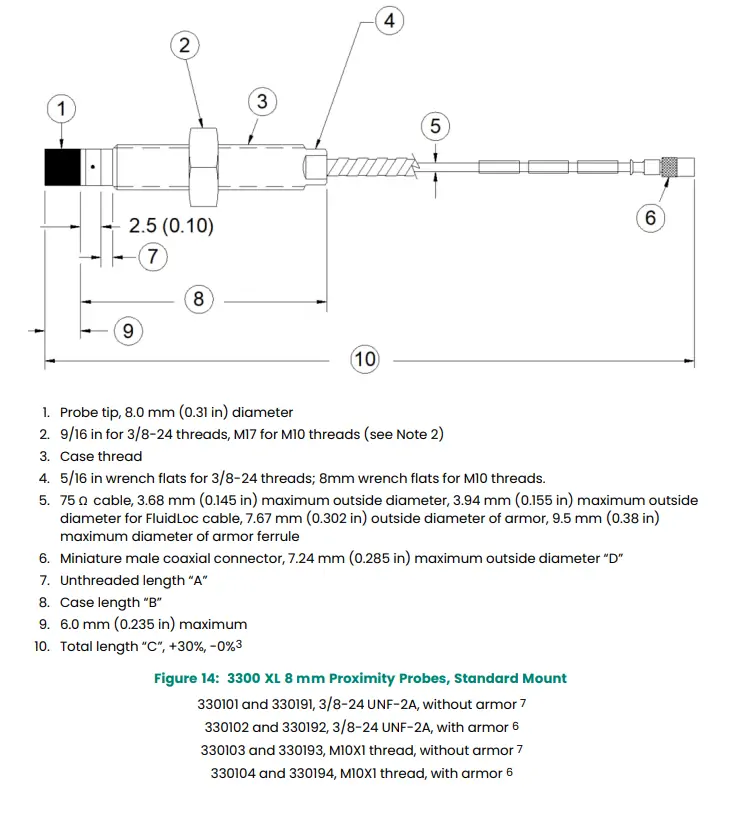

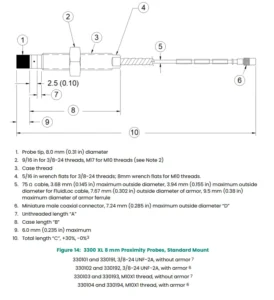

3300 XL 8 mm Proximity Probes, Standard Mount
