Name: 330172-00-30-10-02-00 Bently Nevada 5mm Proximity Probe | 3 inch Case 3300 Series Armored
SKU: 330172-00-30-10-02-00
Availability: InStock

Product details

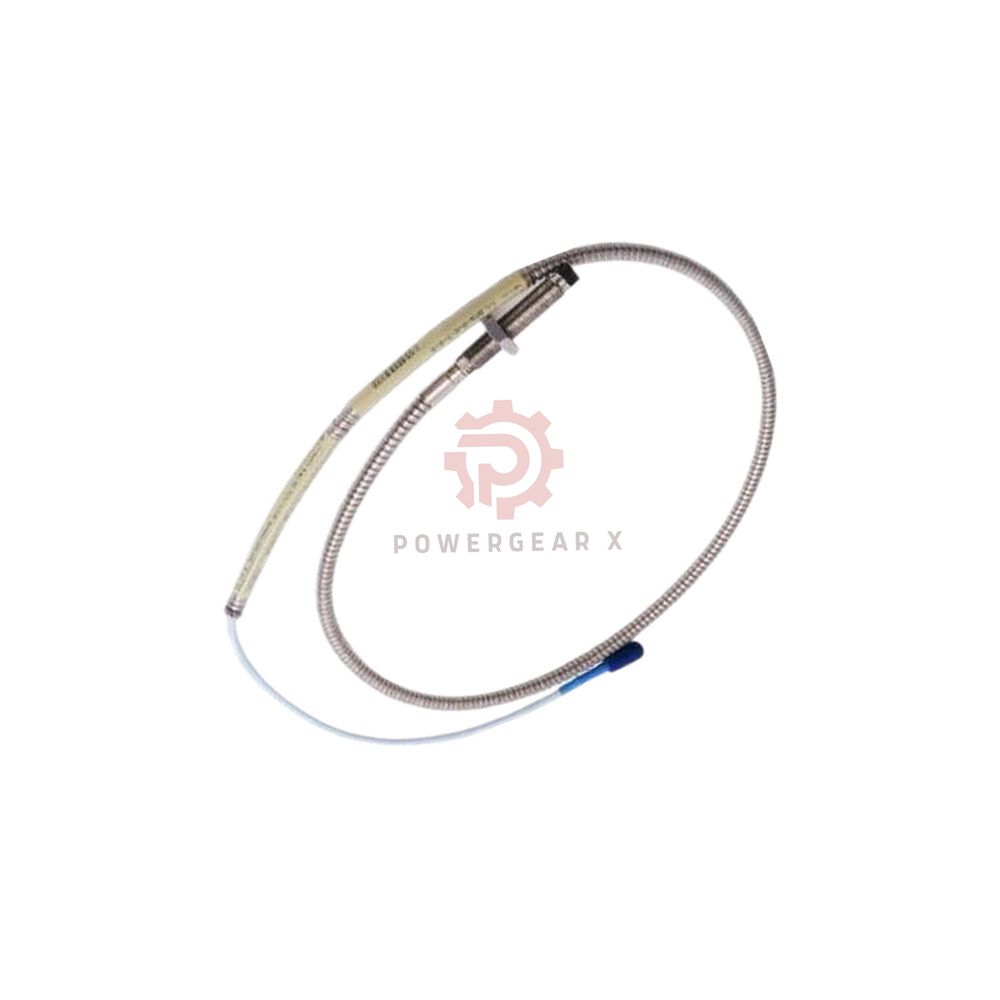

330172-00-30-10-02-00 Bently Nevada 5mm Proximity Probe – 3300 Series, 3 inch Case, Armored

Product Introduction

330172-00-30-10-02-00 is a 5mm proximity probe from Bently Nevada 3300 Series.
- Made in U.S.A. with high quality materials.
- Thread size: 1/4-28 UNF for easy mounting.
- Features 3.0 inch overall case length for thick walls.
- Comes with armor cable protection for tough jobs.
- Probe tip: PPS (Polyphenylene sulfide) resists heat and chemicals.
- Case material: AISI 304 stainless steel.
- Works from -35°C to +177°C (-31°F to +351°F).

Technical Specifications (Tree Structure)

General Identification
- Manufacturer: Bently Nevada
  - Series: 3300 Series
    - Model: 330172-00-30-10-02-00
      - Type: 5mm Proximity Probe
      - Made in: U.S.A.
Mechanical Dimensions
- Unthreaded Length: 00 = 0 inches
  - Overall Case Length: 30 = 3.0 inches
    - Total Cable Length: 10 = 1.0 meter (3.3 feet)
      - Thread Size: 1/4-28 UNF
        Max Thread Engagement: 0.375 inches
Materials & Build
- Tip Material: Polyphenylene sulfide (PPS)
  - Case Material: AISI 304 stainless steel (SST)
    - Cable Type: 75Ω triaxial, FEP insulated
      - Connector: Miniature coaxial ClickLoc (standard cable)
        Connector Material: Gold-plated brass or beryllium copper
        Agency Approval: 00 = Not Required
Electrical Specifications
- Power Required: -17.5 Vdc to -26 Vdc at 12mA max
  - Sensitivity: < 2 mV change per volt change
    - Output Resistance: 50 Ω
      - Probe DC Resistance (1.0m): 7.59 ± 0.50 Ω
Environmental & Ratings
- Probe Temperature Range: -35°C to +177°C (-31°F to +351°F)
  - Minimum Cable Bend Radius: 25.4 mm (1.0 inch)
    - Tensile Strength: 222 N (50 lbf)
      - Recommended Case Torque: 5.1 N·m (45 in·lb)
        Max Case Torque: 7.3 N·m (65 in·lb)
Physical Attributes
- Weight: 0.323 kg

Expert Review – Manager’s Insight

“Best choice for thick machine casings.”
- Senior Field Service Engineer comment
3 inch case reaches deep into mounting holes.
- Fits turbines with thick bearing housings
No unthreaded tip means full thread engagement.
- Stronger hold in high vibration areas
Armor cable survives years of rubbing.
- Less downtime from cable damage
No approval requirements means faster shipping.
- Ideal for domestic non-hazardous sites

Suitable Equipment & Applications

Large steam turbines
- Thick casings need long probe case
Gas turbine bearing housings
- Measures shaft vibration deep inside
Centrifugal compressors
- Monitors rotor axial position
Heavy duty industrial pumps
- Prevents bearing damage
Large generators
- Checks shaft runout
Marine propulsion shafts
- Armor cable resists salt water

Comparison with Similar Models

330191-00-40-50-CN
- 5 meter cable for long distance runs
- CN approval for specific countries
- View details →
330191-00-40-90-00
- 9 meter cable for very long runs
- No armor, lighter weight
- View details →
Why choose 330172-00-30-10-02-00?
- 3 inch case length fits thick walls
- Armor cable included for protection
- No unthreaded tip for full strength mounting

FAQ – Professional Answers

When do I need a 3 inch case length?
- When your machine wall is thicker than 2 inches.
- Standard 1.2 inch case is too short.
- Measure your mounting hole depth before ordering.
What does “no unthreaded tip” mean for me?
- Threads go all the way to the tip (00 option).
- You get maximum thread engagement strength.
- Good for high vibration machines.
Can I use this probe without a connector protector?
- Yes, this model has standard ClickLoc (02 option).
- No protector means smaller connector size.
- Fine for clean, dry environments.
What is the difference between 00 and 05 approval?
- 00 means no special approvals needed.
- 05 means multiple international approvals.
- Choose 00 for domestic non-hazardous sites to save cost.
What is the warranty and shipping?
- 12-month warranty covers defects.
- We ship within 12-24 hours after order.
- Carriers: FedEx, UPS, DHL with tracking.

Buying Guide – Real Experience Tips

Verify your mounting hole depth first.
- 3 inch case needs at least 3.2 inch deep hole.
- Measure before ordering to avoid returns.
Use a #3 tap drill for 1/4-28 threads.
- Larger drill sizes also work but may be loose.
- Do not exceed 0.375 inch thread engagement.
Check your proximitor cable length match.
- This probe has 1.0 meter cable.
- Proximitor calibration must match total cable length.
Torque to 5.1 N·m (45 in·lb) for best seal.
- Never exceed 7.3 N·m (65 in·lb).
- Use a torque wrench for accuracy.
Keep cable bend radius above 25mm (1 inch).
- Tighter bends break inner conductors.
- Use cable ties with soft edges.
