330172-00-12-05-02-00 Bently Nevada 3300 5mm Probe 1/4-28 Thread

330172-00-12-05-02-00 Bently Nevada 3300 5mm Probe – 1/4-28 UNF Thread with Armor

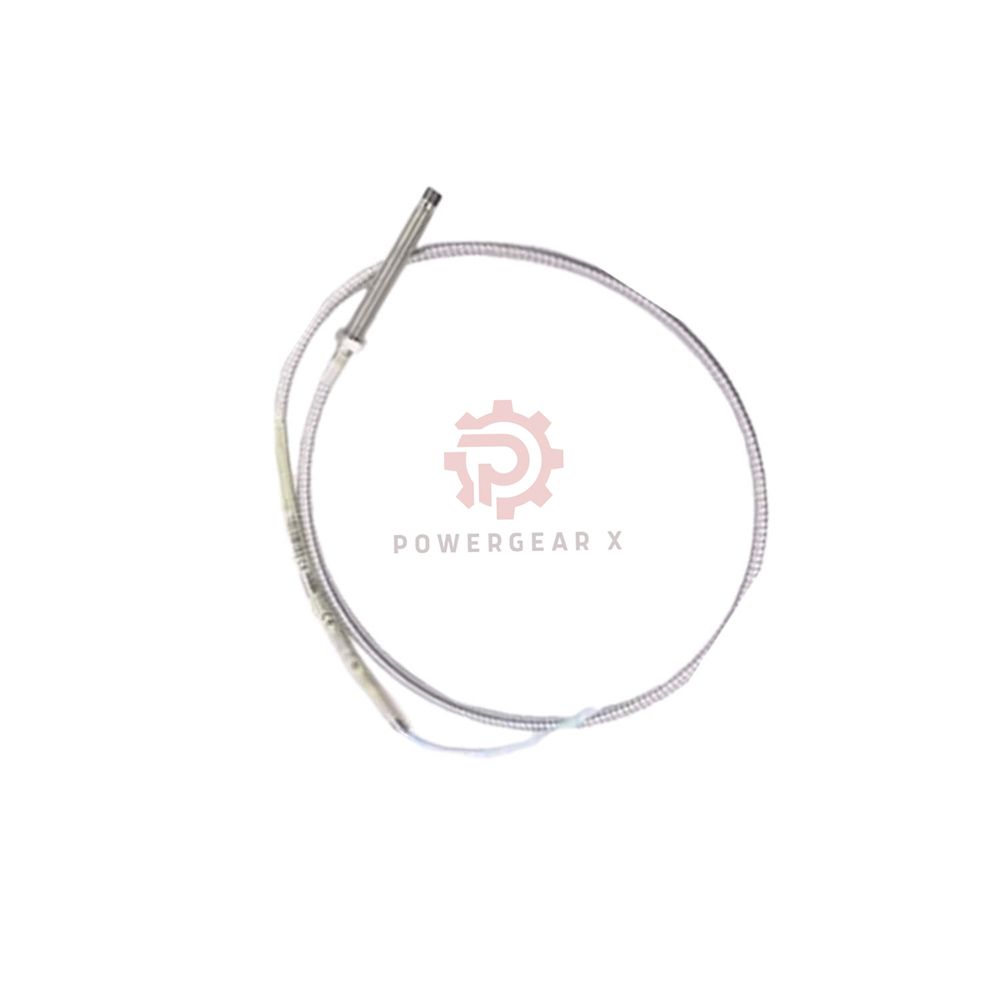

330172-00-12-05-02-00 from Bently Nevada is a 5mm proximity probe. Made in USA. Features 1/4-28 UNF thread and armored cable. Probe tip uses PPS material. Case is AISI 304 stainless steel. Works from -35°C to +177°C. Ideal for vibration and position monitoring.

Technical Specifications – Tree View

• Product Identity
  • Manufacturer: Bently Nevada
  • Part Number: 330172-00-12-05-02-00
  • Product Type: 3300 5mm Probe
  • Thread: 1/4-28 UNF
  • Made in: USA
• Length Options (from suffix)
  • Unthreaded Length Option: 00 = 0 inches
  • Overall Case Length Option: 12 = 12 inches
  • Total Length Option: 05 = 0.5 meter (1.6 feet)
  • Connector Option: 02 = Miniature coaxial ClickLoc
  • Agency Approval: 00 = Not Required
• Materials & Build
  • Probe Tip Material: Polyphenylene sulfide (PPS)
  • Probe Case Material: AISI 304 stainless steel
  • Cable: 75 ohm triaxial, FEP insulated
  • Connector Material: Gold-plated brass or beryllium copper
• Electrical Specs
  • Power Required: -17.5 to -26 Vdc at 12 mA max
  • Sensitivity: Less than 2 mV change per volt change
  • Output Resistance: 50 ohms
  • Probe DC Resistance: 7.45 ± 0.50 ohms (0.5m cable)
• Mechanical Limits
  • Weight: 0.323 kg
  • Tensile Strength: 222 N (50 lbf)
  • Probe Case Torque: 5.1 N·m (45 in·lb) recommended, 7.3 N·m max
  • Connector Torque: 0.565 N·m (0.42 ft·lbf) max
  • Min Cable Bend Radius: 25.4 mm (1.0 inch)
  • Max Thread Engagement: 0.375 inches
• Temperature Range
  • Probe Operating: -35°C to +177°C
  • Below -34°C may damage pressure seal
  • Temperature Class T1 to T5 available (see schedule)
• Magnetic Field Effects (60 Hz, 5m system)
  • At 10 mil gap: 0.0119 (XL Proximitor), 0.0004 (Probe & cable)
  • At 50 mil gap: 0.0131 (XL Proximitor), 0.0014 (Probe & cable)
  • At 90 mil gap: 0.0133 (XL Proximitor), 0.0045 (Probe & cable)

Suitable Devices & Applications

• Suitable Devices
  • Steam turbines
  • Gas compressors
  • Large pumps
  • Industrial fans
  • Generators
• Application Scenarios
  • Shaft vibration monitoring
  • Radial position measurement
  • Thrust position monitoring
  • Eccentricity detection
  • Speed measurement

Installation Quick Guide

• Drill and tap 1/4-28 hole. Use #3 tap drill or larger.
• Max thread engagement is 0.375 inches. Do not over-tighten.
• Apply 5.1 N·m torque for probe case. Max 7.3 N·m.
• Keep cable bend radius above 25.4 mm.
• Connect to XL Proximitor sensor with -24 Vdc supply.

Debugging & Maintenance

• Check gap at 1.27 mm (50 mils) for best linear range.
• Use -24 Vdc supply. Voltage above -23.5 Vdc reduces linear range.
• Inspect cable for cuts or kinks.
• Clean probe tip with soft cloth. Do not scratch PPS.
• Test resistance: center to outer conductor should be 7.45 ± 0.50 ohms.

Compatibility

• Works with Bently Nevada XL Proximitor sensors.
• Compatible with 3300 XL extension cables.
• Use with 5mm target (AISI 4140 steel recommended).
• ClickLoc connector fits standard Bently Nevada systems.

Certifications & Approvals

• Agency Approval Option: 00 = Not Required (standard version)
• Temperature Class T1 to T5 for EPL Ga/Gc
• Temperature Class T280°C to T90°C for EPL Dc
• Made in USA – Bently Nevada quality

Package Contents

• 1 x 330172-00-12-05-02-00 probe with armor
• 1 x ClickLoc connector (miniature coaxial)
• Installation manual (digital)
• No extension cable included – order separately.

Warranty & Fast Shipping

• Warranty: 12 months from invoice date.
• Dispatch: 12-24 hours after order confirmation.
• Carriers: FedEx, UPS, DHL (tracking provided).

Frequently Asked Questions (FAQ)

• What is the maximum temperature for this probe?
  • Maximum is +177°C (+351°F). Do not exceed this. Below -34°C may damage seal.
• Can I use this probe without a Proximitor sensor?
  • No. Requires Bently Nevada XL Proximitor sensor for proper signal conditioning.
• What tap drill size for 1/4-28 mounting hole?
  • Use #3 tap drill or larger. Max thread engagement is 0.375 inches.
• How to choose between 330172 and 330173 models?
  • 330172 is 5mm standard probe. 330173 is 8mm reverse mount. Pick 330172 for smaller targets, 330173 for larger gaps. See comparison below.
• What about warranty and delivery?
  • 12 months warranty. Ships in 12-24 hours via FedEx, UPS, or DHL. Tracking number sent by email.

Purchasing Guidance

• Check your target material. AISI 4140 steel gives best results.
• Need longer cable? Choose different suffix (1m, 2m, 5m, 9m options).
• For hazardous areas, select agency approval option (not this version).
• Always use with XL Proximitor sensor and extension cable.
• Confirm power supply: -17.5 to -26 Vdc, 12 mA max.

Compare with Similar Models

• 330173-00-04-20-02-CN – Bently Nevada 3300 XL 8 mm ETR Reverse Mount Probe
• 330173-00-06-10-02-CN – Bently Nevada 3300 XL 8 mm ETR Reverse Mount Probe
