Bently Nevada 330171-05-63-05-02-CN Overview

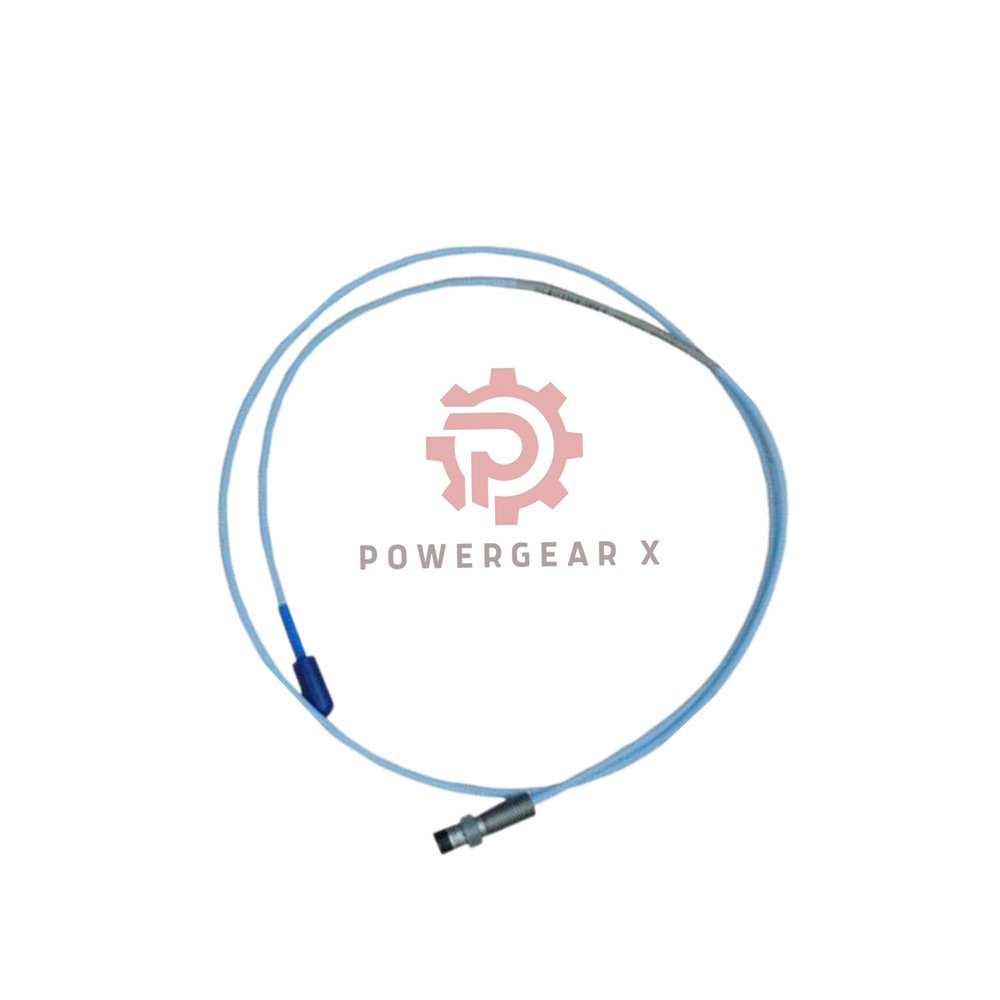

- 330171-05-63-05-02-CN – heavy-duty 3300 5mm proximity probe with extended unthreaded length
- 5mm diameter, 1/4-28 UNF thread – for deep mounting applications
- 0.5 inch unthreaded section + 6.3 inch overall case length
- 0.5 meter cable with miniature coaxial ClickLoc connector
- Made in U.S.A. – extreme temperature rating -35°C to +177°C
Model Breakdown – 330171-05-63-05-02-CN
- Complete part number: 330171-05-63-05-02-CN
- 05 – Unthreaded length: 0.5 inches (12.7mm)
- 63 – Overall case length: 6.3 inches (160mm)
- 05 – Total length: 0.5 meter (1.6 feet) cable
- 02 – Miniature coaxial ClickLoc connector, standard cable
- CN – Country specific approvals (China)
Key Features & Benefits
- Extended reach design
- 0.5″ unthreaded section – passes through thick mounting brackets
- 6.3″ overall case – reaches deep into machine casings
- Ideal for insulated machines or double-wall housings
- Superior signal integrity
- Miniature coaxial ClickLoc connector – secure, tool-free locking
- 75Ω triaxial FEP insulated cable – excellent noise rejection
- Magnetic field immunity: as low as 0.0004 mV pp/Gauss (probe only)
- Harsh environment ready
- Temperature range: -35°C to +177°C (-31°F to +351°F)
- PPS tip, 304 stainless steel case – corrosion resistant
- Tensile strength: 222N (50 lbf) on all connections
Technical Specifications
- General information
- Brand: Bently Nevada
- Model: 330171-05-63-05-02-CN
- Series: 3300 5mm proximity probes
- Type: Eddy current probe, non-contact
- Mechanical specifications
- Unthreaded length: 0.5 inches (12.7mm)
- Overall case length: 6.3 inches (160mm)
- Probe tip material: Polyphenylene sulfide (PPS)
- Probe case material: AISI 304 stainless steel
- Thread size: 1/4-28 UNF
- Max thread engagement: 0.375 inches (9.5mm)
- Recommended torque: 5.1 N·m (45 in·lb), max 7.3 N·m
- Weight: 0.323 kg (0.71 lbs)
- Cable & connector
- Cable type: 75Ω triaxial, FEP insulated
- Cable length: 0.5 meter (1.6 feet)
- Connector: Miniature coaxial ClickLoc, gold-plated
- Min bend radius: 25.4 mm (1.0 inch)
- Connector torque: 0.565 N·m max (hand tight)
- Electrical specifications
- Power required: -17.5Vdc to -26Vdc @ 12mA max
- Sensitivity stability: <2mV change per volt change
- Output resistance: 50Ω
- Probe DC resistance: 7.45Ω ±0.50 (center to outer)
Magnetic Field Immunity (60 Hz, 5m system)
- Output voltage (mV pp/Gauss)
- At 10 mil gap: Sensor 0.0119 | Probe 0.0004 | Cable 0.0004
- At 50 mil gap: Sensor 0.0131 | Probe 0.0014 | Cable 0.0014
- At 90 mil gap: Sensor 0.0133 | Probe 0.0045 | Cable 0.0045
- Excellent immunity – suitable for generators and motors
Temperature Classifications (Hazardous Areas)
- For EPL Ga and Gc (Gas)
- T1: -55°C to +232°C | T2: -55°C to +177°C
- T3: -55°C to +120°C | T4: -55°C to +80°C
- T5: -55°C to +40°C
- For EPL Dc (Dust)
- T80°C: -55°C to +232°C | T75°C: -55°C to +177°C
- T70°C: -55°C to +120°C | T65°C: -55°C to +80°C
- T55°C: -55°C to +100°C | T50°C: -55°C to +40°C
Expert Review – Manager’s Insight
- Why choose this extended-length probe?
- The 0.5″ unthreaded + 6.3″ case is unique – passes through thick insulation or dual walls
- Perfect for turbines with thermal blankets or compressors with jacketed casings
- ClickLoc connector (02 option) speeds up installation – no tools, no mistakes
- Best suited for:
- Large steam turbines with thick insulation layers
- Centrifugal compressors in LNG plants (cold service)
- High-temperature applications up to 177°C continuous
- Reliability note: The 6.3″ case provides mechanical stability. Magnetic immunity data shows excellent performance in high EMF environments like generators.
Compatible Applications
- Deep-reach monitoring
- Radial vibration through insulated turbine casings
- Shaft position in large bore machines
- Eccentricity measurement on slow-speed rolls
- Industries served:
- Power generation (steam/gas turbines), oil & gas, chemical processing
- Pulp & paper (dryer rolls), steel mills, marine propulsion
Model Comparison & Selection Guide
- 330171-05-63-05-02-CN (this model)
- 0.5″ unthreaded + 6.3″ case, 0.5m cable, ClickLoc, CN
- Choose for thick insulation or deep mounting holes
- 330171-00-28-10-01-05
- 0″ unthreaded, 2.8″ case, 1.0m cable, standard connector
- Standard length for general purpose mounting
- 330171-00-40-10-02-05
- 0″ unthreaded, 4.0″ case, 1.0m cable, ClickLoc
- Medium reach with ClickLoc convenience
- Selection tip: Measure from mounting surface to target. Add insulation thickness. Choose case length that places tip at correct gap (approx 1.27mm).
Installation Guidelines
- Mounting requirements
- Tap hole: #3 drill or larger for 1/4-28 UNF thread
- Max thread engagement: 0.375 inches – do not over-thread
- Use anti-seize compound on stainless threads
- Torque specifications
- Probe case torque: 5.1 N·m (45 in·lb) recommended
- Never exceed 7.3 N·m (65 in·lb)
- Connector torque: hand tight only – 0.565 N·m max
- Cable routing
- Minimum bend radius: 25.4 mm (1.0 inch)
- Avoid sharp bends near connector – use service loops
- Secure with cable ties, not over-tightened
Package Contents & Warranty
- Box includes:
- 1× Bently Nevada 3300 5mm proximity probe – model 330171-05-63-05-02-CN
- 0.5 meter integral cable with ClickLoc connector
- Installation and safety instructions
- Calibration certificate (standard)
- Warranty: 12 months against manufacturing defects
- Certifications: Country specific approvals (CN), hazardous area temperature classified
Shipping & Delivery
- Express couriers: FedEx, UPS, DHL – insured worldwide
- Handling time: Ships within 12-24 hours on business days
- Tracking: Email notification with tracking number
Frequently Asked Questions
- Q: What is the unthreaded length used for?A: The 0.5″ unthreaded section passes through thick mounting pads or insulation without engaging threads, allowing proper positioning.
- Q: Can I use this probe with 3300 XL extension cables?A: Yes – mate with Bently Nevada 3300 series extension cables that have ClickLoc connectors (female).
- Q: What does “CN” approval cover?A: Country specific approvals for China, including hazardous area certifications accepted by Chinese authorities.
- Q: How deep can this probe reach?A: 6.3″ case length + 0.5″ unthreaded = 6.8″ total from mounting surface to tip (adjust gap as needed).
- Q: Is the 6.3″ case rigid or flexible?A: Rigid stainless steel – maintains precise tip position in high vibration.
- Q: What’s the minimum gap I can measure?A: Typically 0.25mm to 2.25mm linear range. Set static gap around 1.27mm (50 mils).
- Q: Can this probe withstand steam turbine temperatures?A: Yes – rated to 177°C continuous. For higher, check T1 rating (232°C) in temperature schedule.
- Q: How does magnetic field affect readings?A: Very low – probe and cable contribute <0.005 mV pp/Gauss at typical gaps, safe for generators.
Contact Information
- Email: sales@powergearx.com – 24/7 sales support
- WhatsApp: +86 18030005825 – instant technical help
- Response time: Within 4 hours on business days
