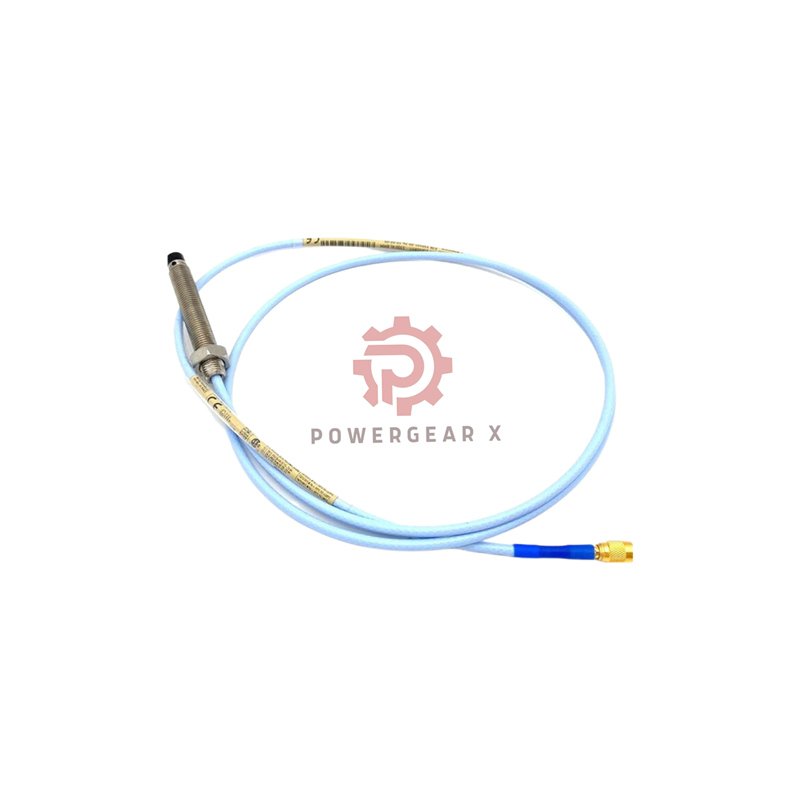

330171-00-26-10-02-00 Bently Nevada 5mm Proximity Probe – 3300 Series

🔍 Product Overview: Bently Nevada 330171-00-26-10-02-00

This Bently Nevada 330171-00-26-10-02-00 is a precision 3300 5mm Proximity Probes sensor. Made in USA. It features a compact 2.6 inch case and a 1.0 meter integral cable. Ideal for vibration and position monitoring in tight machinery spaces.

• 5mm eddy-current technology for reliable shaft measurement.
• Overall case length: 2.6 inches (Option 26) for shallow installations.
• Total length 1.0 meter with ClickLoc connector for secure hookup.
• Rugged PPS tip & 304 SST case withstand -35°C to +177°C.

📦 Model Decoder: Suffix Breakdown (Tree Structure)

330171-00-26-10-02-00

• 330171 – Base: 5mm probe, 1/4-28 UNF thread, unarmored.
  • -00 – Unthreaded length: 0 inches.
  • -26 – Overall case length: 2.6 inches.
  • -10 – Total length: 1.0 metre (3.3 feet).
  • -02 – Connector: Mini coaxial ClickLoc, std cable.
  • -00 – Approval: Not required (industrial).

⚙️ Core Technical Data

• Brand: Bently Nevada
• Model: 330171-00-26-10-02-00 (Series: 5mm Proximity Probes)
• Power: Requires -17.5 to -26 Vdc, max 12 mA.
• Output resistance: 50 Ω.
• DC resistance (probe): 7.59 Ω ±0.50 (center to outer).
• Thread: 1/4-28 UNF. Max engagement 0.375 in. Use #3 tap drill.
• Torque (case): 5.1 N·m recommended, 7.3 N·m max.
• Connector torque: Max 0.565 N·m.
• Min cable bend radius: 25.4 mm (1.0 in).
• Tensile strength: 222 N (50 lbf) at connections.
• Temperature range: -35°C to +177°C.
• Weight: 0.323 kg.

🧰 Installation & Maintenance

• Mounting hole: Drill and tap for 1/4-28, #3 drill or larger.
• Engagement limit: Do not thread deeper than 0.375 inches.
• Pre-install check: Measure DC resistance (7.09 to 8.09 Ω).
• Connector care: Hand-tighten only; max torque 0.565 N·m.
• Bend radius: Keep cable bend >1 inch to avoid damage.

🔌 Compatibility & Integration

• Works with 3300 Series XL Proximitors.
• Pairs with Bently Nevada extension cables (miniature coaxial ClickLoc).
• Target material: Calibrated for AISI 4140 steel.
• Part of the trusted 3300 5mm Proximity Probes family.

📜 Approvals & Environmental

• Agency option: 00 (not required).
• Temperature class (probe only): T1 to T5 per EPL Ga/Gc.
• Magnetic field immunity: Very low output ripple (0.0004 to 0.0045 mil pp/gauss).
• Materials: PPS tip, 304 SST case, gold-plated connectors.

📦 Logistics & Support

• Warranty: 12 months against defects.
• Dispatch: 12-24 hours from order.
• Shipping: FedEx, UPS, DHL (express).
• Inquiries: sales@powergearx.com | +86 18030005825 (WhatsApp)

🧠 Manager’s Insight & Applications

Why pick the -26 version? The 2.6-inch case is perfect when space is limited — for example, on small compressors or pumps with shallow mounting bosses. You get the full performance of a 5mm Proximity Probes system without excess length. In our experience, this model reduces installation headaches in retrofits where original tapped holes are shallow.

Ideal for: steam turbines, centrifugal compressors, gearboxes, cooling tower fans, and hydro generators. Also suitable for axial position monitoring and keyphasor applications.

🔁 Comparison with Similar Models

• 330171-00-20-05-02-CN: 2.0 inch case, 0.5 meter cable, CN connector option. Best for extremely short clearances and Chinese market systems.
• 330171-00-30-10-02-00: 3.0 inch case, 1.0 meter cable, same connector. A middle ground if you need a bit more reach but not the full 4 inches.

Selection tip: Measure your existing mounting depth. If space is tight, go with -26. For standard clearance, -30 or -40 work well.

❓ Frequently Asked Questions (Field Expertise)

• Q: What does the “26” in the model mean for my installation?A: It means the stainless steel case is 2.6 inches long. Use this when the probe mounts into a shallow hole. It prevents the tip from bottoming out.
• Q: Can I use this probe with an older Bently Nevada monitor?A: Yes, if the monitor is designed for 3300 Series 5mm Proximity Probes. Check that your Proximitor matches the 1.0m system length.
• Q: How fast will I receive this probe?A: We dispatch within 12-24 hours via FedEx, UPS, or DHL. Typical transit is 2-5 days worldwide.
• Q: What if I need a longer warranty?A: The standard is 12 months. Contact us for extended coverage options — we can often arrange it for large orders.
• Q: Is the PPS tip resistant to oil and chemicals?A: Yes, PPS (polyphenylene sulfide) stands up to most turbine oils, lubricants, and mild chemicals. It is a robust choice for machinery monitoring.

🛒 Why Buy From Powergear X?

• 100% genuine Bently Nevada — full traceability.
• Expert pre-sales support: sales@powergearx.com or WhatsApp.
• Same-day dispatch, tracked shipping.
• Easy returns within 30 days.

Original Source | Copyright © 2026 Powergear X Automation Limited. All rights reserved.

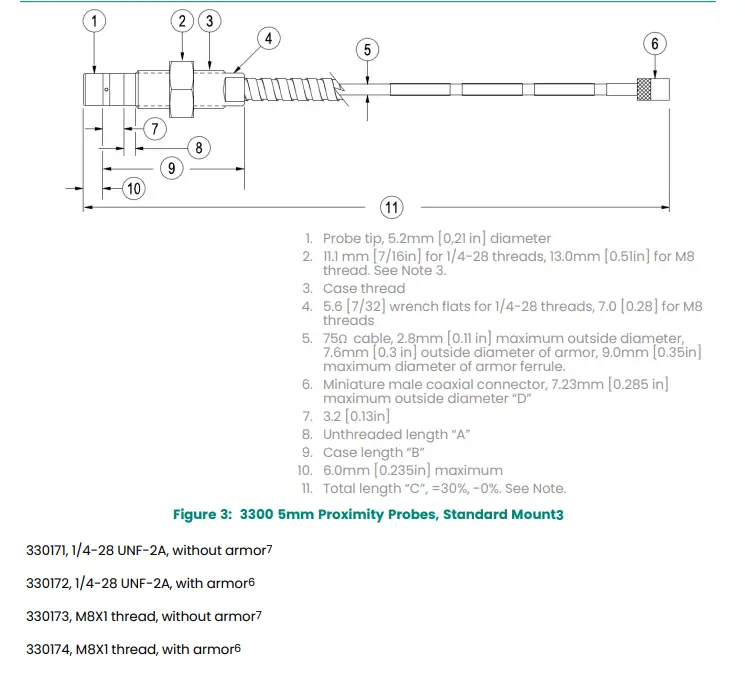

3300 5mm Proximity Probes, Standard Mount3
