330130-085-02-00 Bently Nevada | 3300 XL Standard Extension Cable

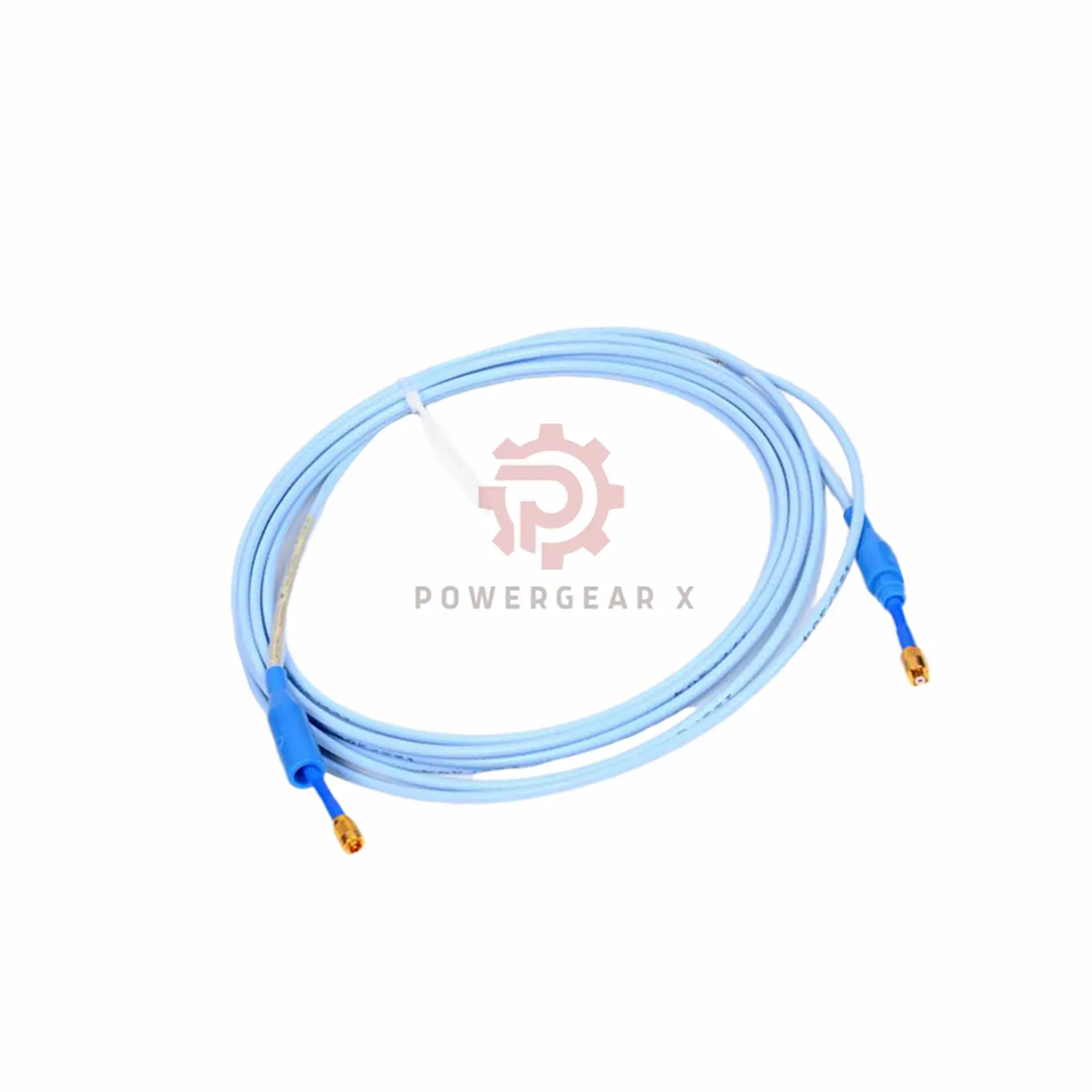

Bently Nevada 330130-085-02-00 Extension Cable

Product Overview

This 8.5-meter cable works with Bently Nevada 3300 XL 8 mm proximity systems. It has a connector protector to keep connections safe.

Key Specifications

• Model: 330130-085-02-00
• Cable Length: 8.5 meters (27.9 feet)
• Cable Type: Standard with connector protector
• Weight: 0.289 kg
• Capacitance: 69.9 pF/m (typical)
• Output Resistance: 50 Ohm
• Center Conductor Resistance: 1.87 Ω ± 0.28
• Outer Conductor Resistance: 0.56 Ω ± 0.11

Electrical Data

• Power Supply: -17.5 V to -26 V without barrier; -23 V to -26 V with barrier
• Max Current: 12 mA
• Voltage Sensitivity: Less than 2 mV per volt
• Linear Range: 0.25 mm to 2.3 mm
• Operating Temp: 18°C to 27°C
• Max Altitude: 2000 meters

Installation and Compatibility

• Fits 3300 XL 8 mm, 3300 8 mm, and 3300 5 mm probes
• Gold-plated ClickLoc connectors resist corrosion
• Includes silicone tape, not for use with turbine oil
• Use 3-conductor shielded triad cable, 16-24 AWG
• Max cable length to monitor: 305 meters

Model Code Breakdown

• 330130: Extension cable series
• 085: Cable length 8.5 m
• 02: Cable with connector protector
• 00: No special approval needed

Package and Shipping

• Includes 1 cable and silicone tape
• Ships via FedEx, UPS, DHL
• 12-month warranty included

Note

Make sure cable length plus probe length equals total sensor length for proper use.
