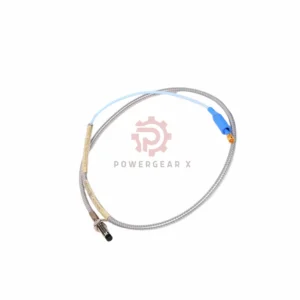

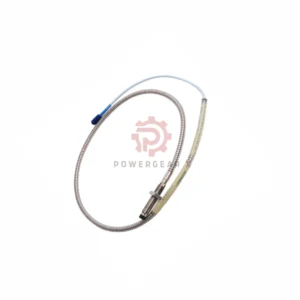

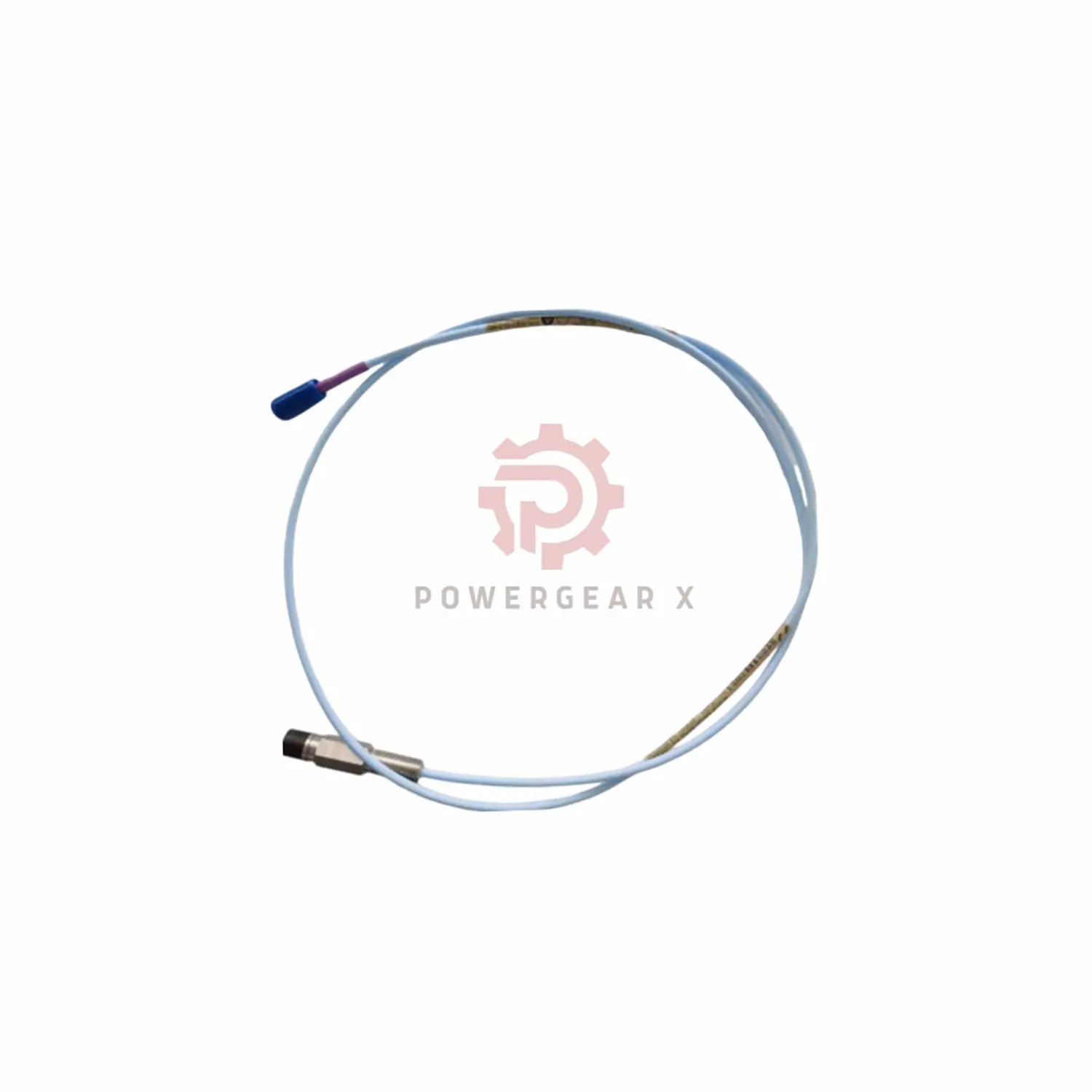

330104-01-05-50-02-02 Proximity Probes 3300 XL 8 mm Bently Nevada

NEW CONFIGURATION: 330104-01-05-50-02-02

330104-01-05-50-02-02 variant features 10mm unthreaded length and ultra-compact 50mm case for restricted spaces. Certified for hazardous areas with updated agency approvals.

Model Code Breakdown

• 01: 10mm unthreaded section
• 05: 50mm total case length
• 50: 5.0m (16.4ft) cable
• 02: ClickLoc connector
• 02: Agency approvals (TÜV/ATEX)

Critical Updates

• 50% shorter case vs standard models
• ATEX/IECEx Zone 0/Zone 20 certification
• Max cable bend radius: 25mm

Technical Specifications

• Electrical
  •  8.73Ω ±0.50Ω @20±2°C
  •  -17.5Vdc to -26Vdc (±5%)
  •  12mA max current draw
• Mechanical
  •  M10x1 thread | 50±0.5mm case
  •  304 SST housing | HVLP coating
  •  22N·m max installation torque

Critical Limitations

•  Requires 3300 XL 5m Proximitor (v2.1+)
•  1.27±0.05mm gap from AISI 4140 steel
•  Not compatible with <50mm flange mounts

Order Now

Contact sales@powergearx.com for certified drawings & lead times.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
