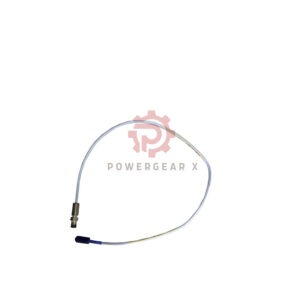

330103-03-10-10-02-00 Proximity Probes – Bently Nevada

Overview

This product, manufactured by Bently Nevada, is the 3300XL 8mm Proximity Probes (Product No. 330103-03-10-10-02-00). It is designed to accurately measure the distance between the probe tip and the target. With specific features such as certain probe tip and case materials, it can operate in various environments and is suitable for different industrial applications.

Technical Specification

• Brand: Bently Nevada
• Model: 3300XL 8mm Proximity Probes (Product No. 330103-03-10-10-02-00)
• Product No. Suffix Meaning:
  • 03: Unthreaded Length Option, 30mm
  • 10: Overall Case Length Option, 100mm
  • 10: Total Length Option, 1.0 meter (3.3 feet)
  • 02: Miniature coaxial ClickLoc connector, standard cable
  • 00: Agency Approval Option, Not required
• Nominal Probe DC Resistance: For a 1.0 – meter probe, it is 7.59 ± 0.50 Ω.
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel (SST)
• Probe Pressure: Designed to seal differential pressure with a Viton® O – ring.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), recommend 3 – conductor shielded triad cable, max length 305 meters.
• Linear Range: 2 mm (80 mils), from 0.25 to 2.3 mm (10 to 90 mils).
• Recommended Gap Setting for Radial Vibration: – 9 Vdc [approximately 1.27 mm (50 mils)]
• Mechanical: Probe tip is PPS, case is SST, M10x1 thread with 15 – mm max engagement, 323 g/m (11.4 oz).
• Temperature Range: Standard: – 52°C to + 177°C; Extended: – 52°C to + 218°C (tip), – 51°C to + 260°C (cable and connector).
• Relative Humidity: Less than a 3% change in ASF in 93% humidity for up to 56 days.
• Safety Ratings:
  • ia: Class I, Zone 0; Class 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III.
  • nA, ec: Class I, Zone 2; Class 1, Division 2, Groups A, B, C, D

Contact Information

For any inquiries, please contact: sales@powergearx.com

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
