Product Profile

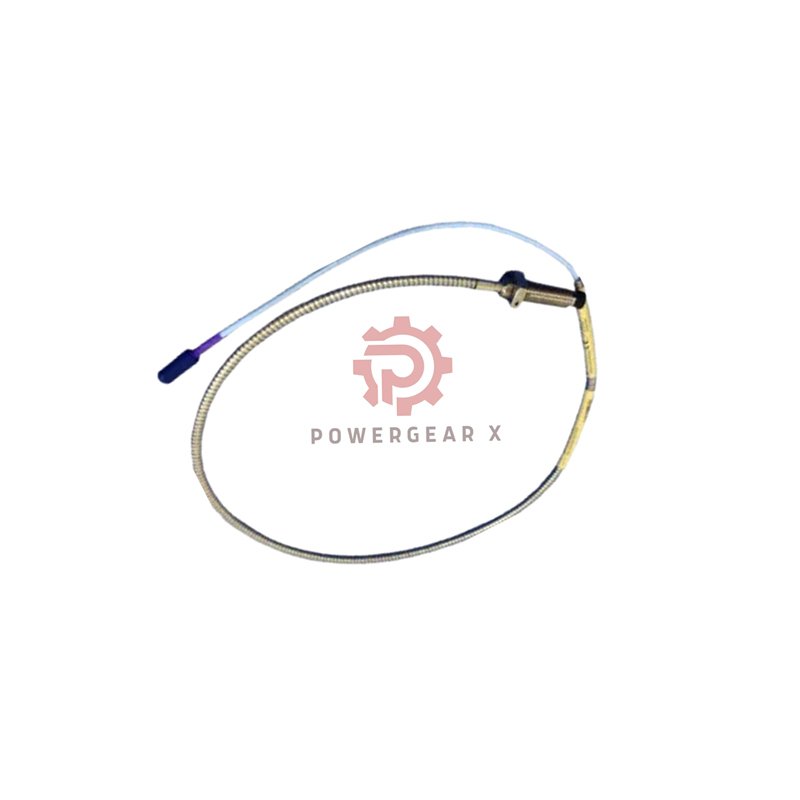

The Bently Nevada 330102-00-80-10-11-00 is a fully threaded armored probe. It features a sealed FluidLoc cable for wet or washdown areas. Ideal for applications where the probe mounts directly into a threaded boss.
Main Product Benefits
- Fully Threaded Body: 0.0″ unthreaded length allows maximum engagement in shallow ports.
- FluidLoc Protection: Special cable and connector sealant block moisture and oils.
- High Pressure Seal: Viton O-ring seals the probe tip from internal machine pressure.
- Universal Approval: “00” agency option is suitable for general industrial use worldwide.
- Armored Durability: Steel armor over the cable prevents cuts and crush damage.
Detailed Technical Specifications
- Complete Model: 330102-00-80-10-11-00
- Model Number Decoded:
- 330102: 8mm Armored Probe Core
- 00: Unthreaded Shank Length = 0.0 Inch
- 80: Total Case Length = 8.0 Inches
- 10: Integrated Cable = 1.0 Meter
- 11: Cable Type = FluidLoc with Connector Protector
- 00: Agency Approval = Not Required / General Use
- Electrical Characteristics
- DC Resistance (RPROBE): 7.59 Ω ± 0.50 Ω
- Linear Voltage Output Range: -1 Vdc to -17 Vdc
- Standard Gap Voltage: -9 Vdc at 1.27 mm (50 mils)
- Max Field Wiring Distance: 305 meters to monitor
- Mechanical Design
- Thread: 3/8-24 UNF (Full 8.0″ length is threaded)
- Max Thread Engagement: 0.563 inch (14.3 mm)
- Case Material: AISI 303 or 304 Stainless Steel
- Probe Tip: PPS (Chemical Resistant)
- Cable Jacket: FEP with Metal Armor
- Operating Environment
- Temperature: -52°C to +177°C (Standard)
- Seal Preservation: Do not store below -34°C
- Humidity Immunity: <3% signal change at 93% RH
- Fluid Resistance: FluidLoc cable resists oils and coolants.
Installation & Application Guidance
- This probe is designed to screw directly into a threaded mounting hole. There is no smooth barrel.
- Use the connector protector during installation to keep the ClickLoc port clean.
- The FluidLoc cable is ideal for environments with spray, mist, or occasional direct washdown.
- For radial vibration, always establish the initial 1.27 mm air gap to the target shaft.
Purchasing & Service Details
- Warranty Promise: Protected by a standard 12-month product warranty.
- Global Logistics: Shipped directly via FedEx, UPS, or DHL express services.
- Package Includes: 1 x Probe, 1 x Connector Protector.
Expert FAQs
Product Features
- What is the key advantage of the “00” unthreaded length option?
- It allows the entire 8.0″ probe body to be used for threading into a mounting hole. This provides maximum holding strength in shallow spaces.
- What makes FluidLoc cable different from standard cable?
- FluidLoc cable has a special sealant at the connector and along the cable entry. This actively blocks fluids from wicking into the probe electronics.
Selection & Use
- Should I choose the 330102-00-80-10-11-00 for a standard indoor pump?
- Yes, it is an excellent, durable choice. The armor and FluidLoc features provide extra protection, even if not strictly needed.
- Can this probe be used in food and beverage plants with washdowns?
- The materials (SST, PPS, FEP) are compatible. The FluidLoc seal offers good protection against high-pressure spray, making it a strong candidate.
Ordering & Delivery
- Is the 330102-00-80-10-11-00 a stocked item?
- Yes, this popular fully-threaded configuration is typically in stock for quick shipment via your preferred carrier (FedEx/UPS/DHL).
