Product details
Product Overview
- Manufacturer: Bently Nevada
- Part Number: 330101-48-71-20-02-CN

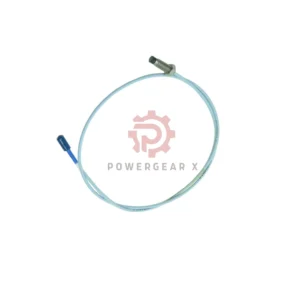

- Type: 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
- Made in USA, country-specific version (CN)
- Improved TipLoc and CableLoc for robust probe tip attachment
- Optional FluidLoc prevents oil leakage along the cable
Dimensions & Materials
- Unthreaded Length: 4.8 in
- Overall Case Length: 7.1 in
- Total Cable Length: 2.0 m (6.6 ft)
- Probe Tip Material: Polyphenylene Sulfide (PPS)
- Probe Case: AISI 303/304 Stainless Steel
- Probe Mass: 323 g/m (11.4 oz)
Electrical & Signal Specifications
- Nominal DC Resistance: 7.88 ±0.50 Ω (2 m probe)
- Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
- Recommended Field Wiring: 0.2–1.5 mm² (16–24 AWG), 3 conductor shielded triad
- Max Distance to Monitor: 305 m (1,000 ft)
- Linear Range: 0.25 to 2.3 mm (10–90 mils)
- Recommended Radial Gap: -9 Vdc (~1.27 mm)
- Incremental Scale Factor: 7.87 V/mm ±5–6.5%
- Deviation from Straight Line: ≤ ±0.038 mm over 0–45°C
Temperature & Environmental Limits
- Standard Probe: -52°C to +177°C (-62°F to +350°F)
- Extended Temperature Probe: -52°C to +218°C tip, -51°C to +260°C cable/connector
- Relative Humidity Tolerance: <3% ASF change at 93% RH for 56 days
- Pressure Seal: Viton® O-ring, protects probe tip from differential pressure
- Note: Temperatures below -34°C (-30°F) may damage pressure seal
Key Advantages
- Robust 8 mm probe tip resists physical abuse
- Thicker coil encapsulation improves durability
- Patented TipLoc and CableLoc ensure secure attachment
- Optional FluidLoc prevents machine fluid leakage
- Large case diameter enhances mechanical strength
Warranty & Shipping
- 12-month product warranty
- Global shipping via FedEx, UPS, DHL
- Secure packing to prevent transport damage
Professional FAQ
Can I use this probe in high-humidity environments?
Yes, up to 93% RH with <3% ASF change over 56 days.
Is the cable easy to replace in the field?
Yes, ClickLoc connector allows fast installation without tools.
Does the FluidLoc option affect signal accuracy?
No, it only seals fluid. Electrical performance remains unchanged.
What if the probe tip experiences impact?
TipLoc and thicker PPS tip provide enhanced resistance to shocks.
Can the probe handle extreme temperatures?
Standard: -52°C to +177°C; Extended: tip -52°C to +218°C, cable up to +260°C.
