330101-00-36-10-01-00 | Proximity Probes – Bently Nevada

Overview

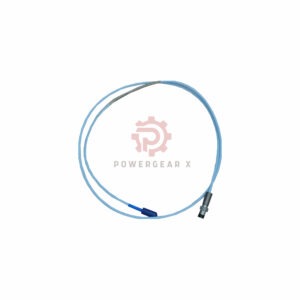

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-36-10-01-00) is a high-performance vibration monitoring sensor designed for industrial applications. Featuring a 3/8-24 UNF thread and no armor, this probe is built for durability and reliability. Its patented TipLoc and CableLoc technologies ensure a robust bond between the probe tip and body, while the optional FluidLoc cable prevents fluid ingress. Made in the U.S.A., this probe is ideal for harsh environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe
• Product No.: 330101-00-36-10-01-00
• Suffix Meanings:
  • 00: Unthreaded Length (0.0 in)
  • 36: Overall Case Length (3.6 in)
  • 10: Total Length (1.0 meter/3.3 feet)
  • 01: Miniature coaxial ClickLoc connector with connector protector, standard cable
  • 00: Not required

• Relative Humidity Performance: Less than 3% change in Average Scale Factor (ASF) at 93% humidity for 56 days
• Cable Pull Strength: 330 N (75 lbf)
• Linear Range Start Point: 0.25 mm (10 mils) from target
• Recommended Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), 3-conductor shielded triad cable
• Frequency Response Rolloff: Observable at high frequencies with field wiring lengths over 305 meters (1,000 feet)

Contact Information

For any inquiries, please contact: sales@powergearx.com

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
