Description

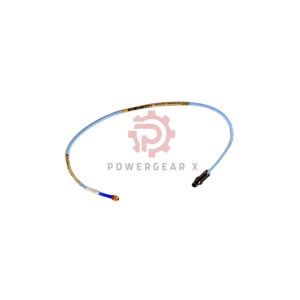

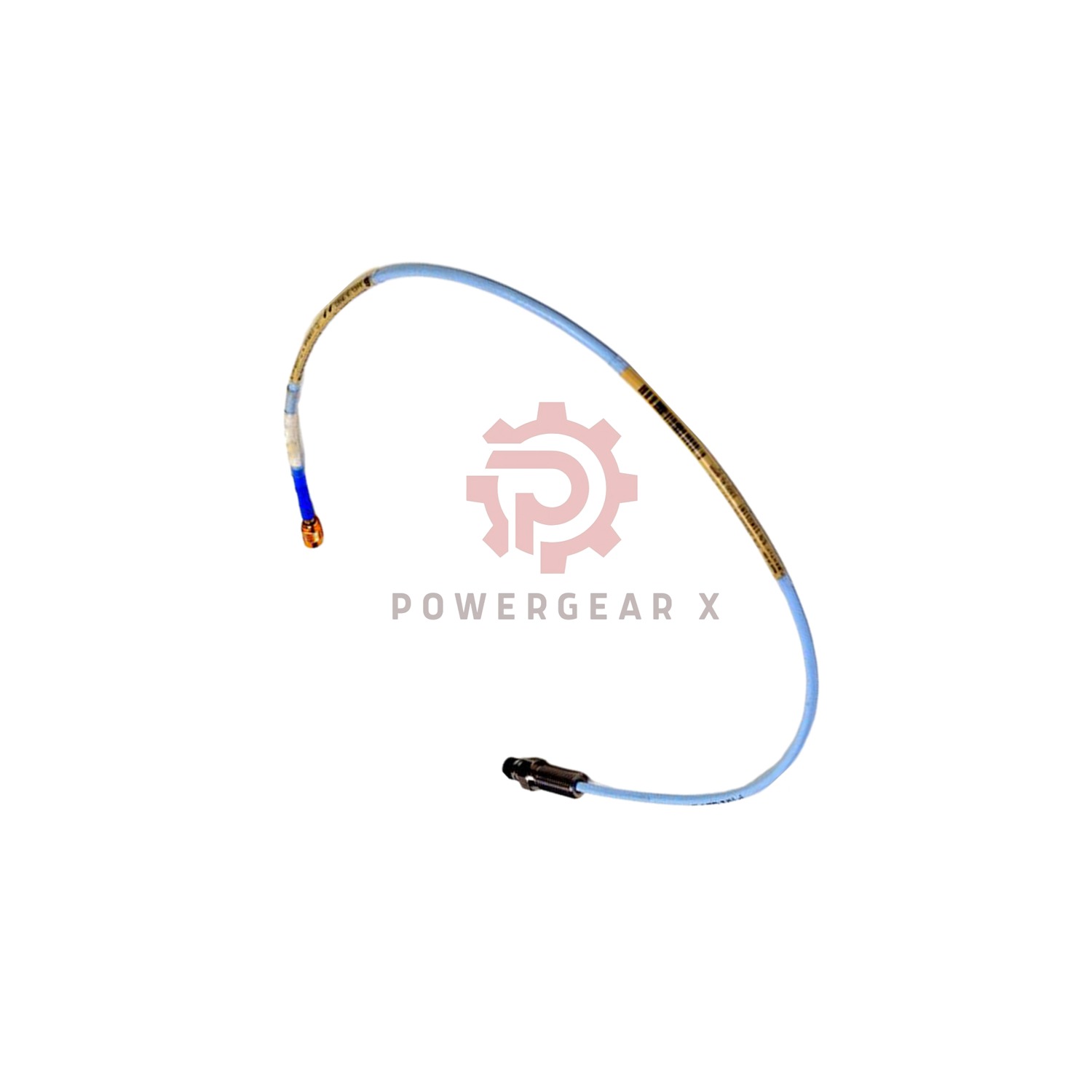

The Bently Nevada 330101 – 00 – 20 – 15 – 02 – 05 3300 XL 8 mm Probe is engineered for reliable and robust sensing. Its patented TipLoc and CableLoc designs enhance durability, and the FluidLoc option offers leak – prevention. Ideal for applications where high – performance sensing is crucial. Contact Information Inquiries: sales@powergearx.com.
Technical Data
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330101 – 00 – 20 – 15 – 02 – 05 |
| Suffix Information | 3300 XL 8 mm Probe, 3/8 – 24 UNF thread, without armor |
| Origin | U.S.A |
| COO Option | Available |
| Approvals | CSA, ATEX, IECEx |
| Dimensions | Total Length: 1.5 m (4.9 ft), Overall Case Length: 2.0 in |
| Connector & Cable | Mini coaxial ClickLoc, Standard cable |
| Electrical | DC Resistance (1.5 m probe): 7.73 ± 0.50 Ω |
| Performance | Linear Range: 2 mm; Radial Vibration Gap: -9 Vdc [1.27 mm] |
| Materials | Probe Tip: Polyphenylene sulfide (PPS); Probe Case: AISI 303 or 304 stainless steel (SST) |
| Temperature Range | Standard: -52°C to +177°C; Extended: Tip -52°C to +218°C, Cable/Connector -51°C to +260°C |
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
