Product details
Overview

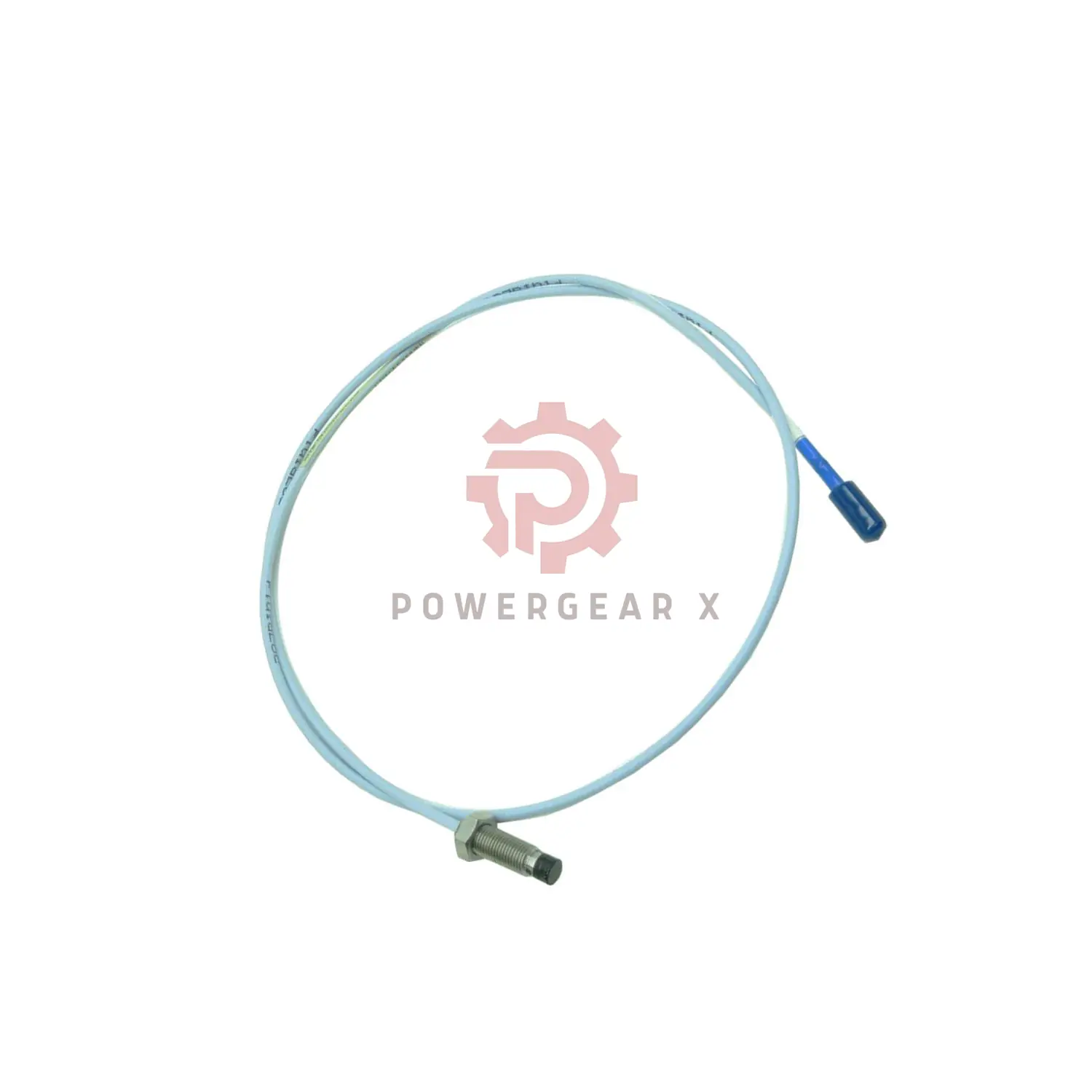

Discover the Bently Nevada 3300 XL 8 mm vibration probe, 330101-00-15-10-01-00 engineered for precision industrial monitoring. This robust sensor delivers reliable performance in demanding environments with enhanced durability features.
Key Features and Benefits
- Superior Durability: 8mm probe body with PPS tip resists physical damage
- Enhanced Sealing: Viton O-ring prevents fluid ingress and pressure differentials
- Secure Connections: Patented CableLoc design provides 330N pull strength
- Temperature Resilience: Operates from -52°C to +177°C standard range
- FluidLoc Option: Prevents oil migration through cable interior (optional)
Technical Specifications
- Brand: Bently Nevada
- Model: 330101-00-15-10-01-00
- Linear Range: 2mm (80 mils) from 0.25mm from target
- Recommended Gap: 1.27mm (50 mils) at -9 Vdc
- Sensitivity: 7.87 V/mm ±5% for 5m systems
- Temperature Range: -52°C to +177°C standard operation
- Probe Resistance: 7.59Ω ±0.50 for 1.0m length
- Cable Capacitance: 69.9 pF/m typical
Configuration Options
- Unthreaded Length: 00 = 0.0 inches
- Case Length: 15 = 1.5 inches
- Total Length: 10 = 1.0 meter (3.3 feet)
- Connector Type: 01 = Miniature coaxial ClickLoc with protector
- Agency Approval: 00 = Not required
Installation Guidelines
- Use 0.2 to 1.5 mm² (16-24 AWG) 3-conductor shielded cable
- Maximum field wiring distance: 305 meters (1000 feet)
- Maintain clean target surface for accurate measurements
- Avoid temperatures below -34°C to prevent seal damage
- Set radial vibration gap at approximately 1.27mm (50 mils)
Packaging Information
- One 3300 XL 8mm probe unit
- Miniature coaxial ClickLoc connector with protector
- Standard 1.0 meter probe cable
- Shipping via FedEx, UPS, or DHL express services
- All components shipped in protective industrial packaging
Frequently Asked Questions
- What makes the 8mm probe more durable?
The thicker PPS plastic encapsulation and larger diameter body provide superior protection against physical impact and environmental stresses.
- How does CableLoc improve reliability?
This patented design ensures the cable withstands 330N pulling force, preventing disconnection in high-vibration applications.
- Can this probe handle high-temperature environments?
Yes, the extended temperature range version operates up to 218°C at the probe tip for demanding applications.
- What cable length should I use for my application?
Standard 1.0 meter cables suit most installations, but consider signal roll-off for runs exceeding 305 meters.
- How do I verify proper probe installation?
Measure DC gap voltage between -9V to -17V and check resistance values match specifications.
For technical support or purchasing information, contact our team at sales@powergearx.com or +86 18030005825. We provide expert guidance on Bently Nevada 3300 XL probe selection and installation.
