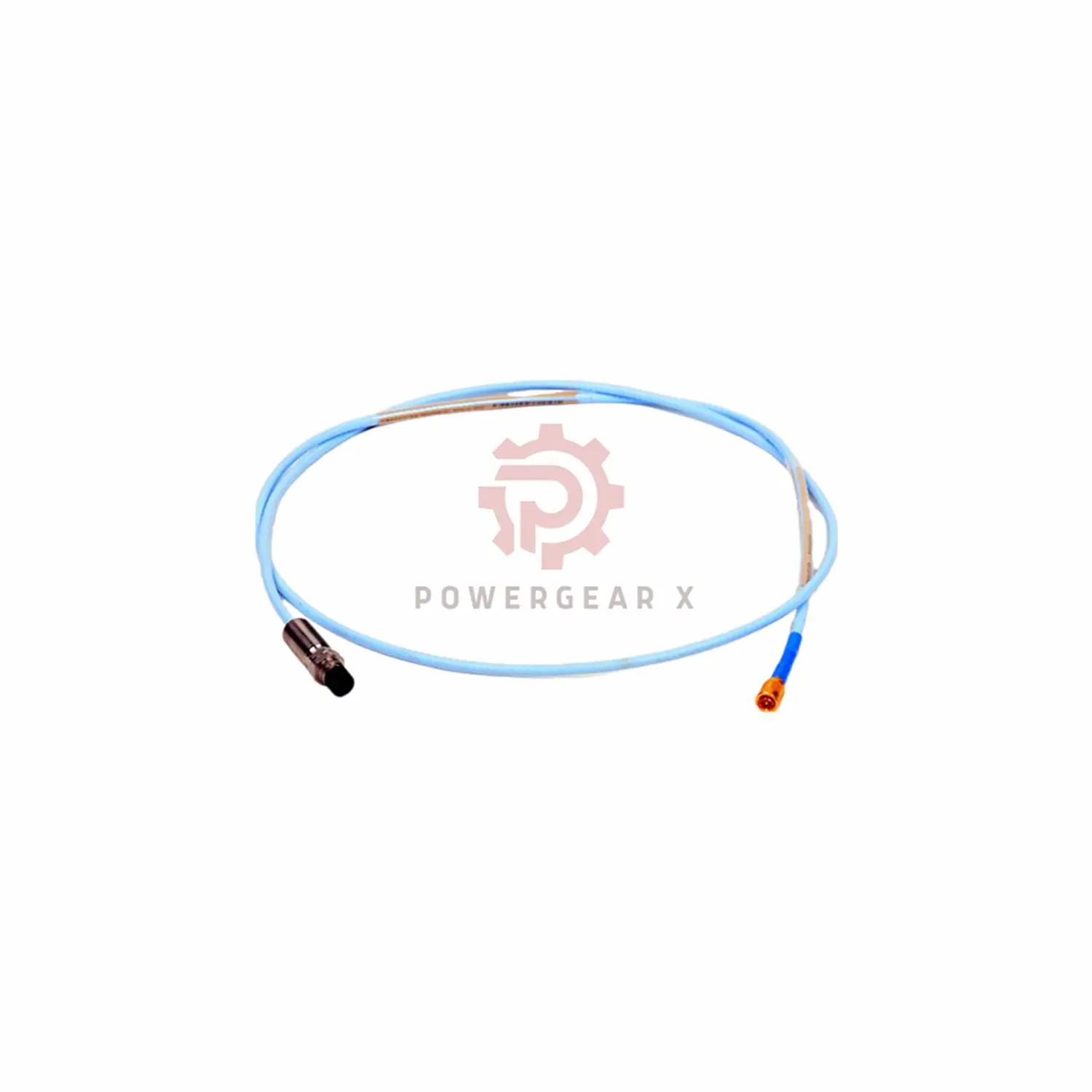

Bently Nevada 330101-00-12-10-12-00 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330101-00-12-10-12-00 is a 3300 XL 8 mm proximity probe with a 3/8-24 UNF thread. It is designed for reliable vibration and position measurements in industrial machines. This model includes a 1.0 meter FluidLoc cable and miniature coaxial ClickLoc connector. No armor is included.

Key Technical Specifications

• Linear Range: 2 mm (80 mils)
• Gap Voltage: Recommended at -9 VDC (approx. 1.27 mm)
• Output Scale Factor: 7.87 V/mm (200 mV/mil) ±5% (standard systems)
• Accuracy: Deviation less than ±0.025 mm (±1 mil)
• DC Resistance: 7.59 ± 0.50 Ohms (for 1.0 m length)
• Cable Capacitance: 69.9 pF/m typical
• Temperature Range (Standard): -52°C to +177°C
• Temperature Range (Extended): Up to +260°C for cable
• Pressure Seal: Viton O-ring for differential pressure sealing
• Humidity Resistance: Less than 3% change in scale factor at 93% RH

Material

• Tip Material: PPS (Polyphenylene Sulfide)
• Case Material: Stainless Steel (AISI 303/304)

Mounting and Installation

• Thread Size: 3/8-24 UNF
• Unthreaded Length: 0.0 in
• Case Length: 1.2 in
• Total Cable Length: 1.0 m (3.3 ft)
• Recommended Wiring: 3-conductor shielded triad, tinned, 16-24 AWG
• Max Distance to Monitor: 305 m (1000 ft)

Model Suffix Tree Structure

• 330101 – Probe Model
• 00 – Unthreaded Length: 0.0 in
• 12 – Case Length: 1.2 in
• 10 – Total Length: 1.0 m
• 12 – Connector: ClickLoc, FluidLoc cable
• 00 – No agency approval
