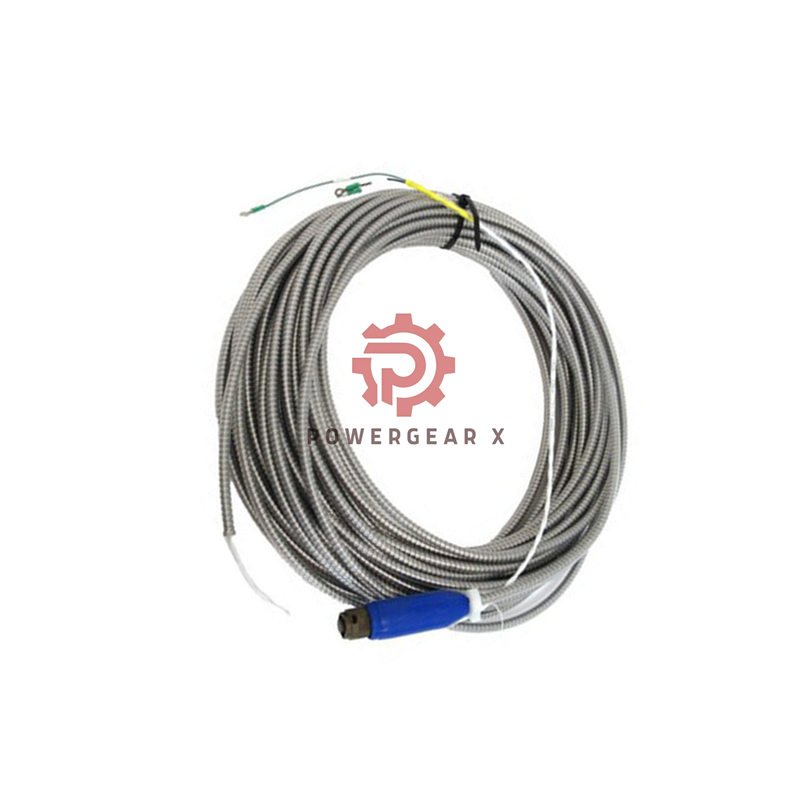

3300 XL 8mm Probe Bently Nevada 330192-00-08-15-CN

Bently Nevada 330192-00-08-15-CN | 3300 XL 8 mm ETR Probe with Armor

• Brand: Bently Nevada
• Part Number: 330192-00-08-15-CN
• Product Type: 3300 XL 8 mm ETR Probe, 3/8-24 UNF Thread, With Armor
• Origin: Made in U.S.A
• Warranty: 12 Months
• Shipping: FedEx | UPS | DHL Express

Ordering Information:

• Model: 330192 – 3300 XL 8 mm ETR Probe
• Unthreaded Length: 0.0 in (min. 0.8 in less than case)
• Case Length: 08 = 0.8 in
• Total Length: 15 = 1.5 m (4.9 ft)
• Agency Approval: CN = Country Specific

Key Technical Parameters:

• Pressure Seal: Viton® O-ring between probe tip and case
• Resistance (RPROBE): 7.73 ± 0.50 Ω at 1.5 m
• Thread Engagement: 3/8-24 UNF, max 0.563 in
• Tip Material: Polyphenylene Sulfide (PPS)
• Case Material: Stainless Steel AISI 303 / 304
• Relative Humidity: Less than 3% ASF change after 56 days at 93% RH
• Weight: Approx. 320 g/m (armored)
• Pull Strength: 330 N (75 lbf)

Temperature Range:

• Standard Probe: -52°C to +177°C (-62°F to +350°F)
• Extended Range: -52°C to +218°C (Tip) / +260°C (Cable)
• Storage: -55°C to +260°C
• Warning: Below -34°C may damage pressure seal

Performance Highlights:

• Enhanced 8 mm design for stronger mechanical protection
• High accuracy and long service life under vibration
• Excellent resistance to corrosion and extreme temperature
• Armored cable ensures safety in harsh industrial zones
• Stable linear output even in high humidity
• Fast worldwide delivery via FedEx / UPS / DHL

Tree-Structure Options:

• Unthreaded Length → 0 = 0 in
• Case Length → 08 = 0.8 in
• Total Length → 15 = 1.5 m
• Agency → CN = Country Specific

Contact Information:
📧 Email: sales@powergearx.com
📱 WhatsApp: +86 18030005825

Frequently Asked Questions (FAQ)

• Q1: What is the total cable length of the 330192-00-08-15-CN?
  A: The total length is 1.5 meters (4.9 feet), ideal for most turbine setups.
• Q2: Can this probe operate in extreme humidity?
  A: Yes. It shows less than 3% variation after 56 days at 93% humidity.
• Q3: Does the CN option affect compatibility?
  A: No. It only indicates a country-specific certification; performance is identical.
• Q4: What is the probe made of?
  A: The tip uses PPS plastic and the case uses AISI 303/304 stainless steel.
• Q5: What is the warranty and how is it shipped?
  A: 12 months warranty; shipped safely via FedEx, UPS, or DHL with tracking.
