Premium Vibration Probe for Industrial Use

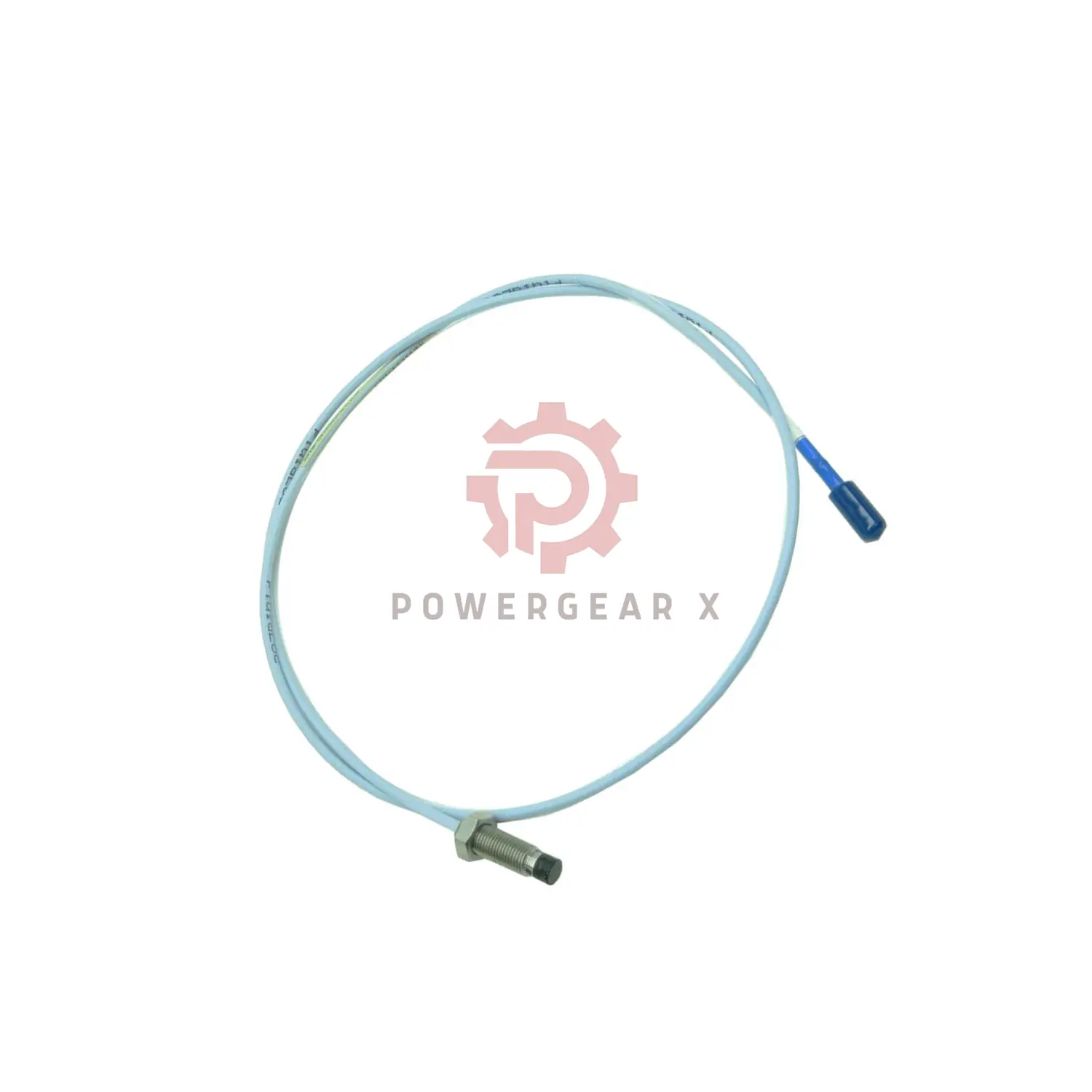

The Bently Nevada 330101-00-25-05-01-05 delivers superior performance in machinery monitoring. This 8 mm probe features advanced sealing technology and robust construction. It ensures accurate measurements in challenging environments.
Product Identification
- Manufacturer: Bently Nevada
- Full Model: 330101-00-25-05-01-05
- Type: 3300 XL 8 mm Vibration Probe
- Thread: 3/8-24 UNF
- Construction: Without armor protection
Model Number Breakdown
- 330101 – Base model number
- 00 – Unthreaded length: 0 inches
- 25 – Case length: 2.5 inches
- 05 – Cable length: 0.5 meters
- 01 – Miniature coaxial ClickLoc connector
- 05 – CSA, ATEX, IECEx approvals included
Advanced Technical Features
- TipLoc molding for stronger tip bonding
- CableLoc design with 330 N pull strength
- Optional FluidLoc prevents fluid leakage
- Thicker 8 mm coil encapsulation
- PPS plastic tip material
Performance Specifications
- DC Resistance: 7.45 ± 0.50 Ω (0.5m length)
- Linear Range: 2.0 mm (0.25 to 2.3 mm)
- Gap Setting: 1.27 mm for radial vibration
- Scale Factor: 7.87 V/mm ±5% to ±6.5%
- Temperature Range: -52°C to +177°C standard
- Extended Range: Up to +218°C available
Physical Properties
- Case Material: AISI 303/304 stainless steel
- Weight: 323 grams per meter
- Pressure Seal: Viton O-ring design
- Humidity: <3% ASF change at 93% RH
Installation & Wiring
- Use 3-conductor shielded triad cable
- Maximum field wiring: 305 meters
- Wire gauge: 0.2 to 1.5 mm² (16-24 AWG)
- Tinned field wiring recommended
Quality Assurance
- 12-month manufacturer warranty
- Made in U.S.A. quality
- Multiple agency approvals included
Shipping Options
- FedEx express delivery
- UPS ground and air services
- DHL international shipping
Expert Questions & Answers
- What makes the 8 mm probe more durable?
The thicker probe body and enhanced coil encapsulation provide better physical protection. This design resists damage in harsh operating conditions.
- How does the FluidLoc option work?
It creates a barrier that prevents oil migration through the cable interior. This protects both the probe and your equipment from fluid damage.
- What is the advantage of CableLoc technology?
It provides 330 Newton pull strength at connection points. This prevents cable detachment during operation and vibration.
- When should I use extended temperature probes?
Choose extended range models for applications above 177°C. They maintain accuracy in high-heat environments like turbines.
- How do I verify proper probe installation?
Check the gap setting and measure output voltage. The reading should be approximately -9 Vdc at the recommended gap.
Need technical support? Contact us at sales@powergearx.com or +86 18030005825 for quick assistance.
