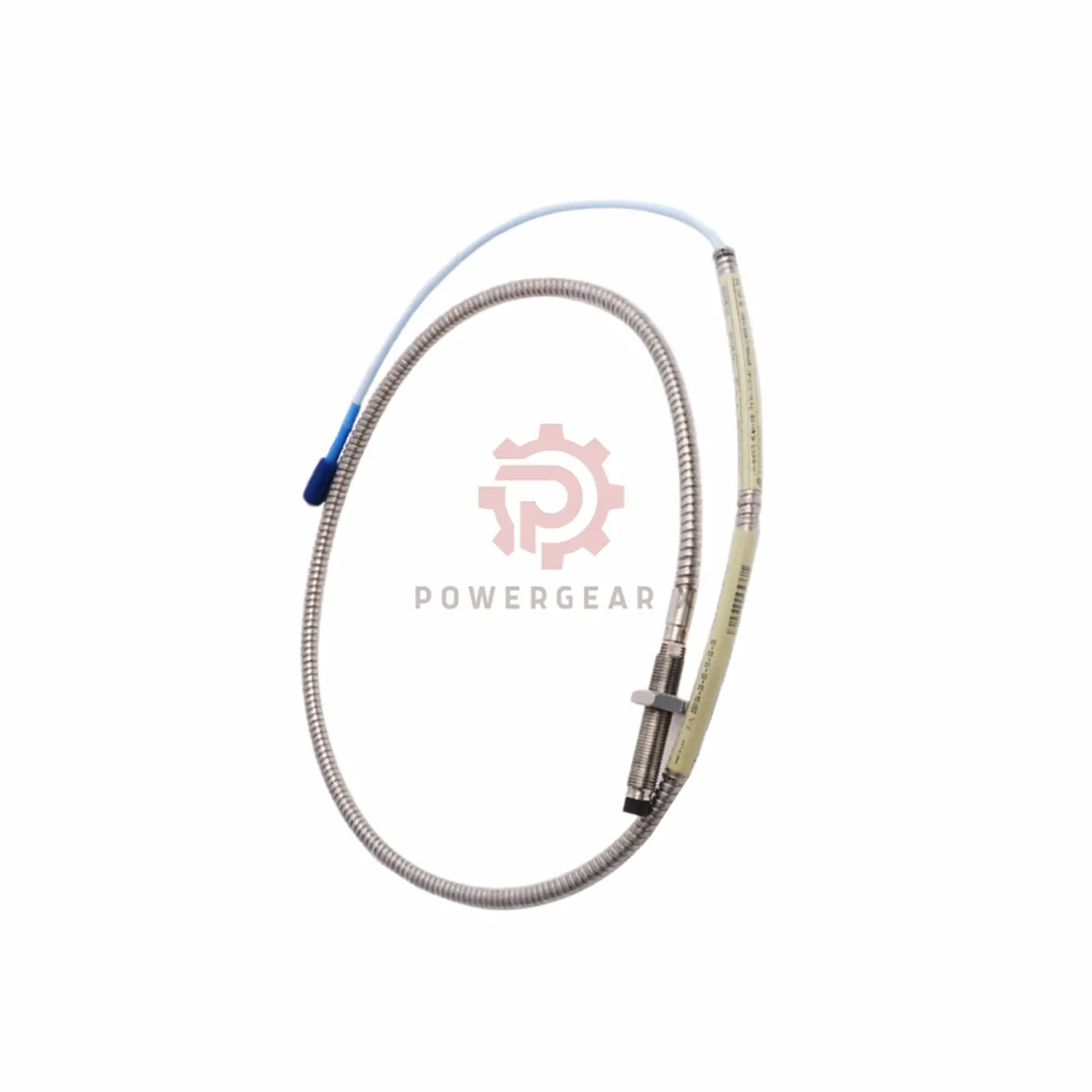

3300 XL 8 mm – Proximity Probes Bently Nevada 330104-05-11-90-11-05

Overview: Bently Nevada

Industrial-grade 8mm vibration probe(330104-05-11-90-11-05) with FluidLoc cable and full model 330104-05-11-90-11-05. Designed for extreme environments (-55°C to +232°C). Features M10x1 threading and Viton® sealing. U.S.-made with ATEX/CSA certifications.

📋 Core Specifications

• Unthreaded: 50mm
• Case Length: 110mm
• Cable: 9m (29.5ft)
• Voltage: -17.5V to -26V
• Resistance: 9.87Ω ±0.5Ω
• Thread: M10x1

🔧 Model Code Breakdown

330104-05-11-90-11-05
05 → 50mm unthreaded section
11 → 110mm stainless steel case
90 → 9-meter cable
11 → FluidLoc connector
05 → ATEX/CSA/IECEx approved

🛡️ Safety & Compliance

⚙️ Performance Details

• Max Temp: +232°C (T1 rating)
• Sealing: Viton® O-ring (5 bar pressure)
• Response: <2ms signal delay
• Optimal Use: 1.27mm gap from AISI 4140 steel
• Weight: 0.42kg

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
