3300 XL 8 mm – Proximity Probes Bently Nevada 330104-00-12-50-02-05

🏗️ Heavy-Duty Certified Probe: 330104-00-12-50-02-05

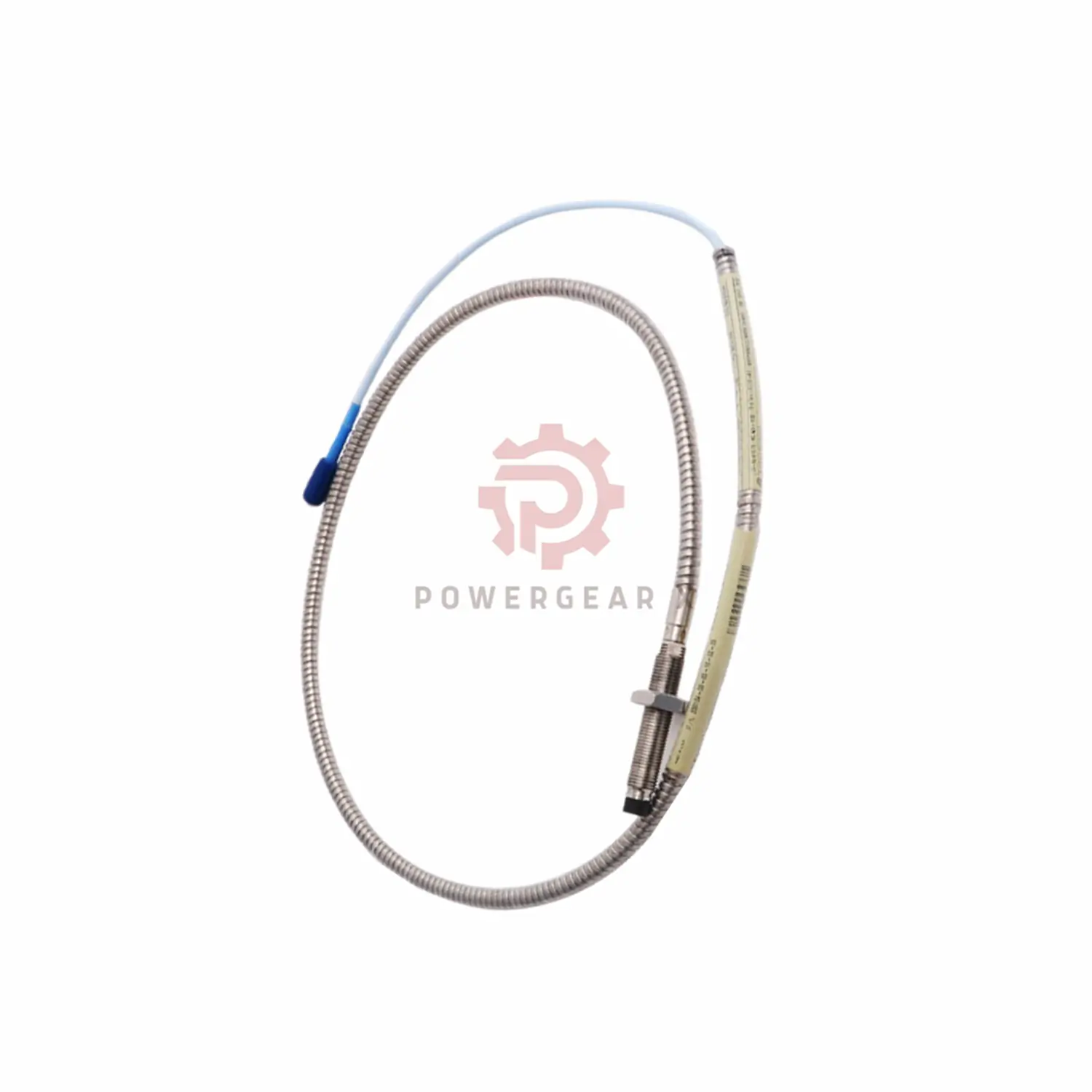

Bently Nevada’s 120mm-cased probe (330104-00-12-50-02-05) delivers multi-certified performance with CSA/ATEX/IECEx approvals. Featuring 5.0m standard cable and M10x1 threading, it maintains 8.73Ω±0.50Ω resistance from -55°C to +232°C for critical industrial monitoring.

🔤 Model Decoder

• 00: 0mm unthreaded section
• 12: 120mm extended case
• 50: 5.0m (16.4ft) cable
• 02: ClickLoc connector
• 05: CSA/ATEX/IECEx certified

⚙️ Technical Specifications

• 🔌 Electrical:
  •  Input: -17.5Vdc to -26Vdc (±2%)
  •  Output: 50Ω ±3% at 25°C
  •  12mA max @-24Vdc
• 🔩 Mechanical:
  •  120±0.8mm 304 SST housing
  •  8.0mm PPS tip (Ra 0.4µm)
  •  28N·m installation torque

📜 Certifications

• ATEX: II 1G Ex ia IIC T4 Ga
•  IECEx: Ex ia IIC T4 Ga
•  CSA: Class I Div 1 Groups A-D

⚠️ Key Requirements

•  Requires 3300 XL 5m Proximitor
•  1.27mm±0.05mm target gap
•  Max 2000m altitude operation

📩 Contact

Email sales@powergearx.com for certification documents.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
