Product details
Overview

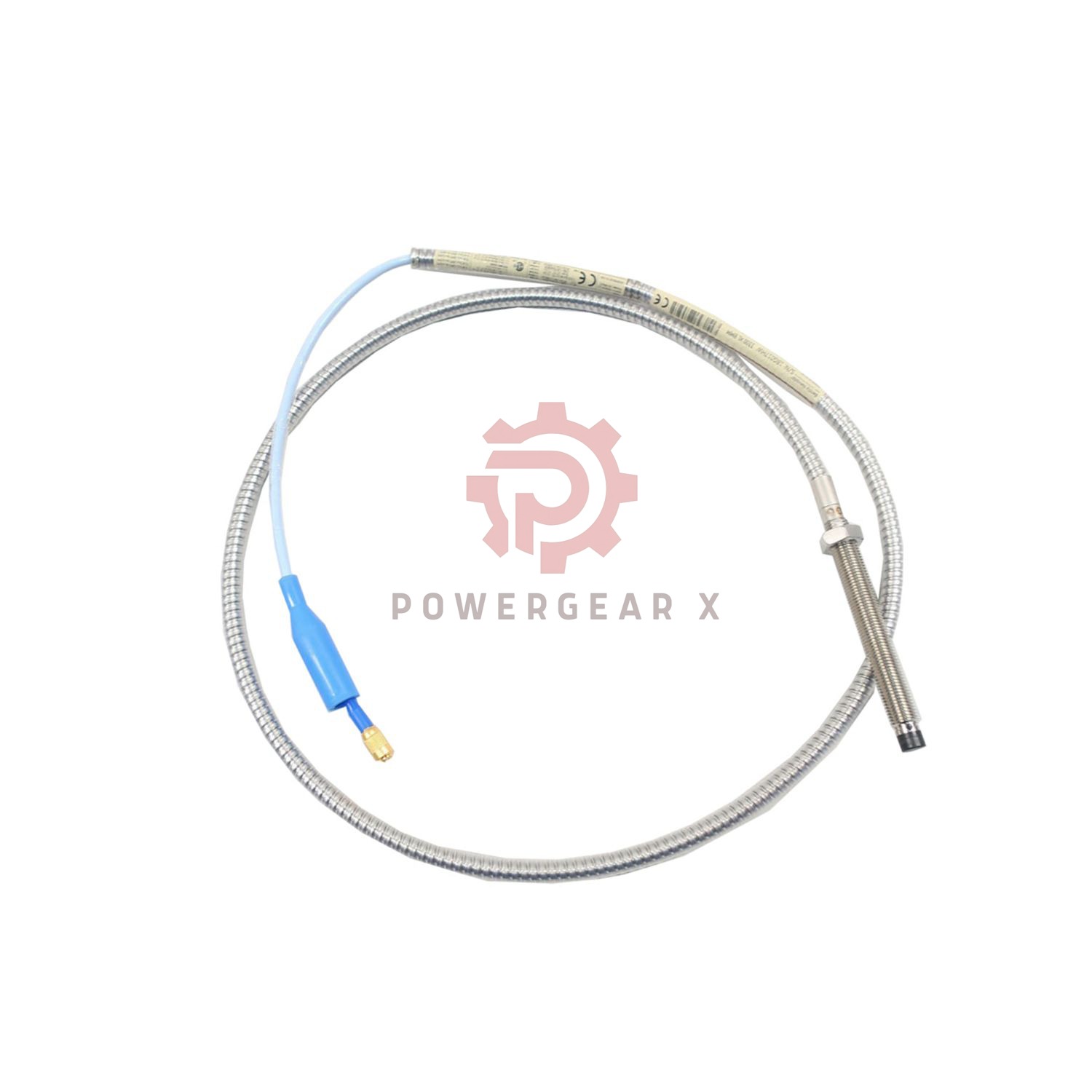

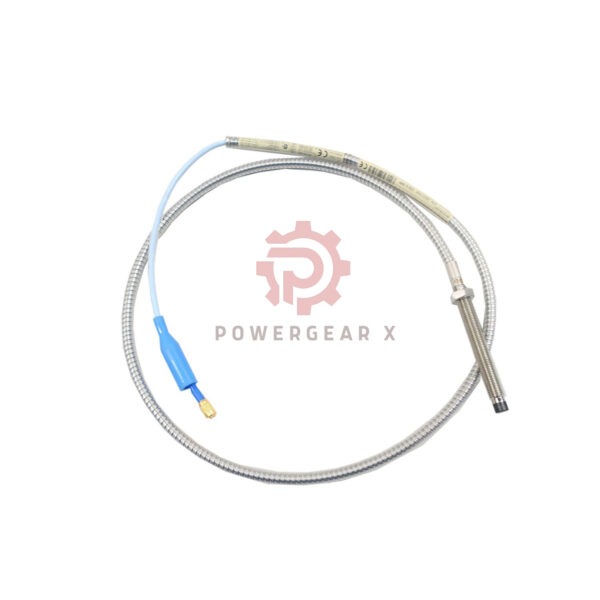

The Bently Nevada 330140-08-15-11-00 is a 3300 XL 8 mm Probe without armor, made in the U.S.A. It offers the option to add a Certificate Of Origin (COO). This product has several improvements over earlier designs. The patented TipLoc and CableLoc technologies enhance its durability, and the FluidLoc cable option helps prevent liquid leakage.
Technical Specifications
| Brand | Model | Overall Case Length | Total Length | Connector and Cable-Type Option | Agency Approval Option |
|---|---|---|---|---|---|
| Bently Nevada | 330140-08-15-11-00 | 08 = 0.8 in | 15 = 1.5 meter (4.9 feet) | Miniature coaxial ClickLoc connector with protector, FluidLoc cable (11) | Not required (00) |
| Parameter | Details |
|---|---|
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Probe Relative Humidity | Less than a 3% change in ASF when tested in 93% humidity for up to 56 days according to IEC 68 2 3 |
| Nominal Probe DC Resistance | 1.5 m length: 7.73 ± 0.50 Ω |
| Incremental Scale Factor (ISF) | Standard 5 or 1 meter System: 7.87 V/mm (200 mV/mil) ± 5% Standard 9 meter System: 7.87 V/mm (200 mV/mil) ± 6.5% Extended Temperature Range for 5 and 9 Meter Systems: 7.87 V/mm (200 mV/mil) ± 6.5% |
| Deviation from best fit straight line (DSL) | Standard 5 or 1 meter System: Less than ±0.025 mm (±1 mil) Standard 9 meter System: Less than ±0.038 mm (±1.5 mil) Extended Temperature Range 5 and 9 meter Systems: Less than ±0.038 mm (±1.5 mil) |
Contact Informatio
For any inquiries regarding this product, please contact sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
