Product details
Overview

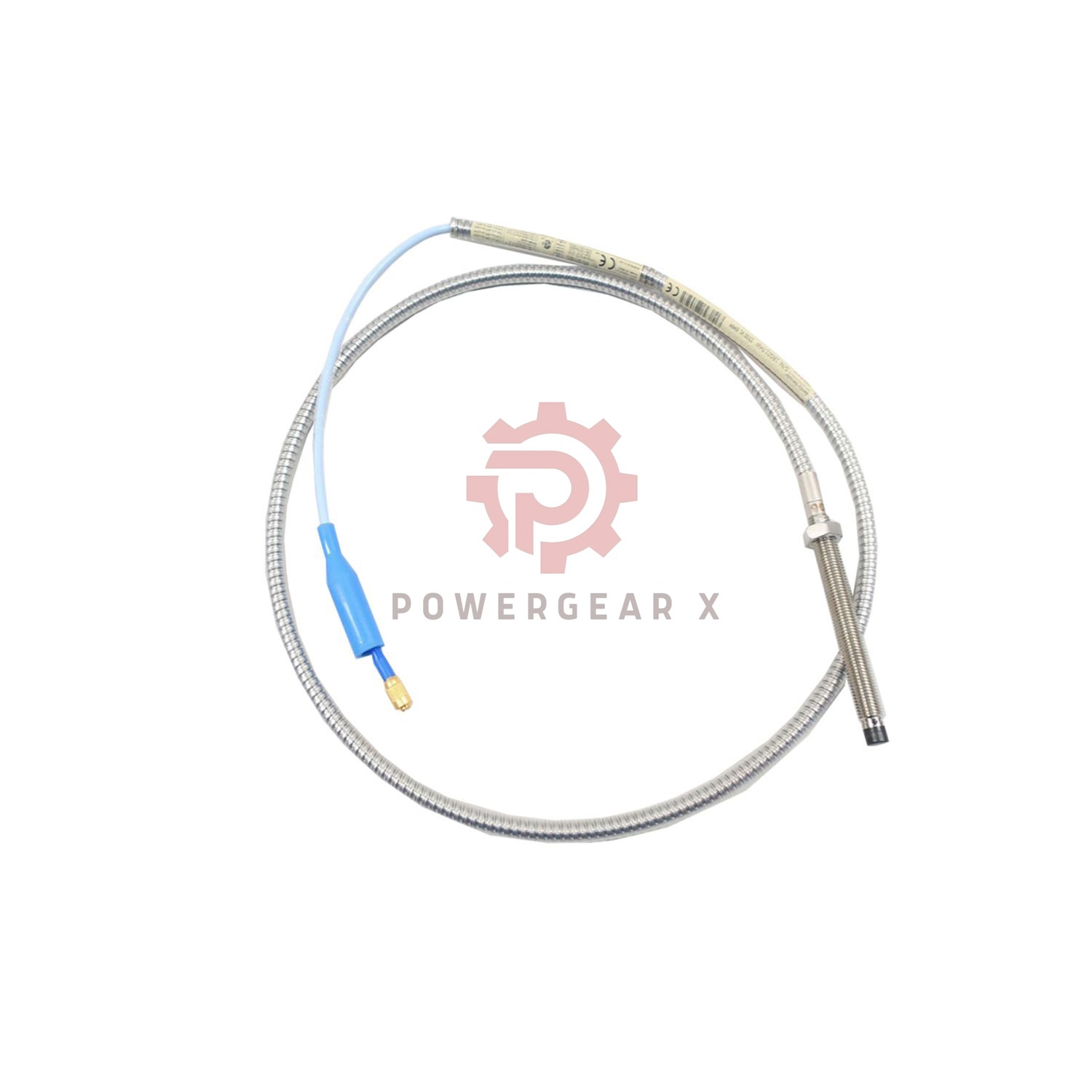

The Bently Nevada 330140-08-15-01-00 is a 3300 XL 8 mm Probe without armor, made in the U.S.A. It features improvements over previous designs. The patented TipLoc and CableLoc methods enhance its durability. An optional FluidLoc cable can prevent liquid leakage. Overall, it’s a rugged probe suitable for various applications.
Technical Specifications
| Brand | Model | Overall Case Length | Total Length | Connector and Cable-Type Option | Agency Approval Option |
|---|---|---|---|---|---|
| Bently Nevada | 330140-08-15-01-00 | 08 = 0.8 in | 05 = 0.5 meter (1.6 feet) | Miniature coaxial ClickLoc connector with protector, standard cable (01) | Not required (00) |
| Parameter | Details |
|---|---|
| Probe Relative Humidity | Less than a 3% change in ASF when tested in 93% humidity for up to 56 days according to IEC 68 2 3 |
| Nominal Probe DC Resistance | 1.5 m length: 7.73 ± 0.50 Ω |
| Incremental Scale Factor (ISF) | Standard 5 or 1 meter System: 7.87 V/mm (200 mV/mil) ± 5% Standard 9 meter System: 7.87 V/mm (200 mV/mil) ± 6.5% Extended Temperature Range for 5 and 9 Meter Systems: 7.87 V/mm (200 mV/mil) ± 6.5% |
| Deviation from best fit straight line (DSL) | Standard 5 or 1 meter System: Less than ±0.025 mm (±1 mil) Standard 9 meter System: Less than ±0.038 mm (±1.5 mil) Extended Temperature Range 5 and 9 meter Systems: Less than ±0.038 mm (±1.5 mil) |
Contact Information
For any inquiries regarding this product, please contact sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
