Product details

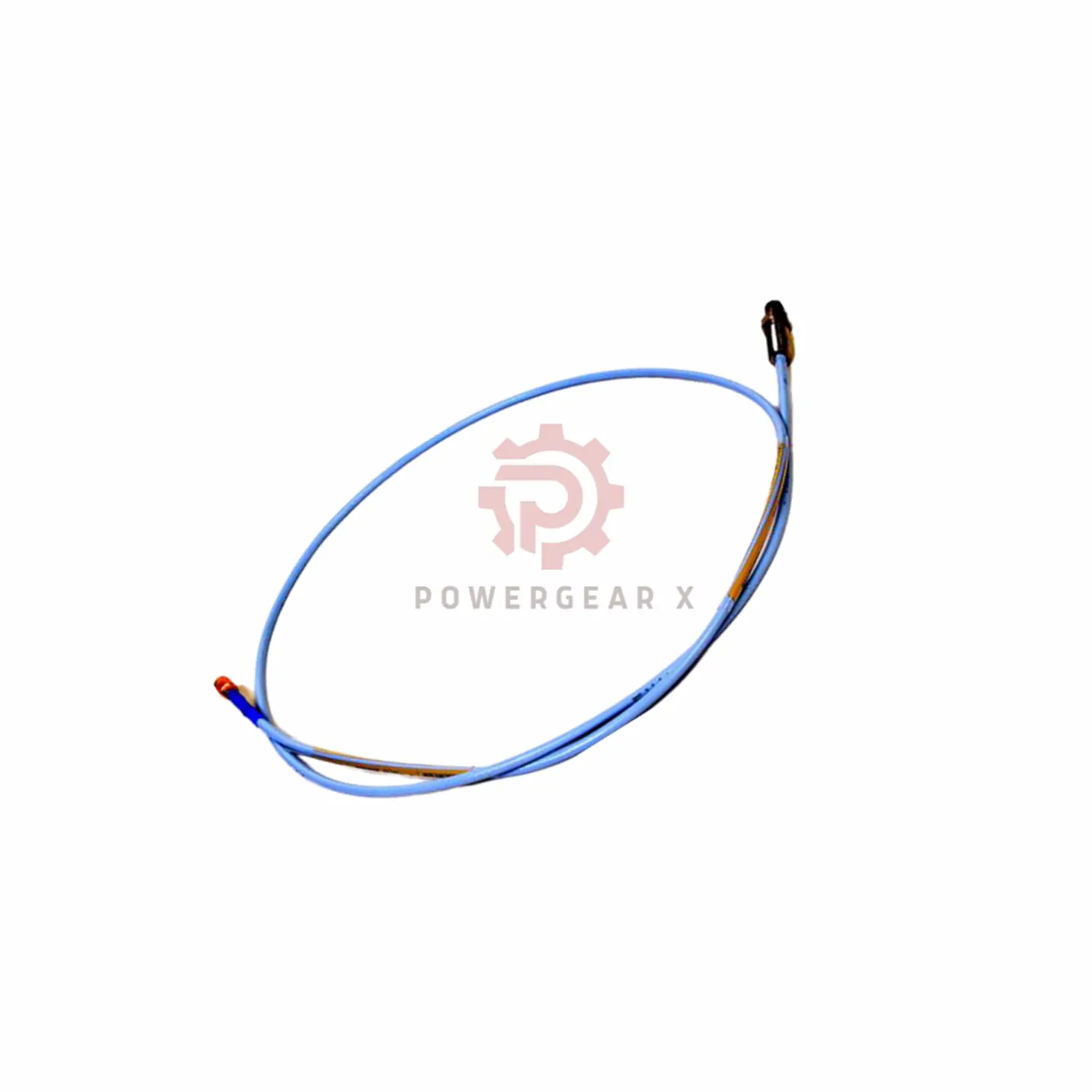

3300 XL 8 mm Proximity Probe
The 330101-00-52-10-12-05 proximity probe with 3/8-24 UNF threading and 5.2-inch case length delivers precise radial vibration monitoring. The 1.0-meter FluidLoc cable resists oil degradation, while the ClickLoc connector enables tool-free installation. Certified for hazardous areas with CSA, ATEX, and IECEx approvals (Option 05).
| Temperature Range | -50°C to +150°C (-58°F to +302°F) |
| Vibration Limit | 25 g peak (10 Hz–2 kHz) |
| Cable Tensile Strength | 60 N (13.5 lbf) pull resistance |
| Thread Engagement | Minimum 7 full turns |
Performance Features:
- Linearity: ±1% of full scale over 2 mm range
- Signal Output: 4–20 mA (2-wire configuration)
- Response Time: 2 ms for 90% step change
- EMC Compliance: EN 61326-1:2013
- Weighing:323 g/m (11.4 oz/ft)
The 330101-00-52-10-12-05 probe integrates with Bently Nevada 3300/3500 systems. Includes NIST-traceable calibration at 25°C (77°F).
Contact Information:
Contact:sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
