3300 NSv – Proximity Probes Metric Bently Nevada 330903-00-05-70-11-00

Overview

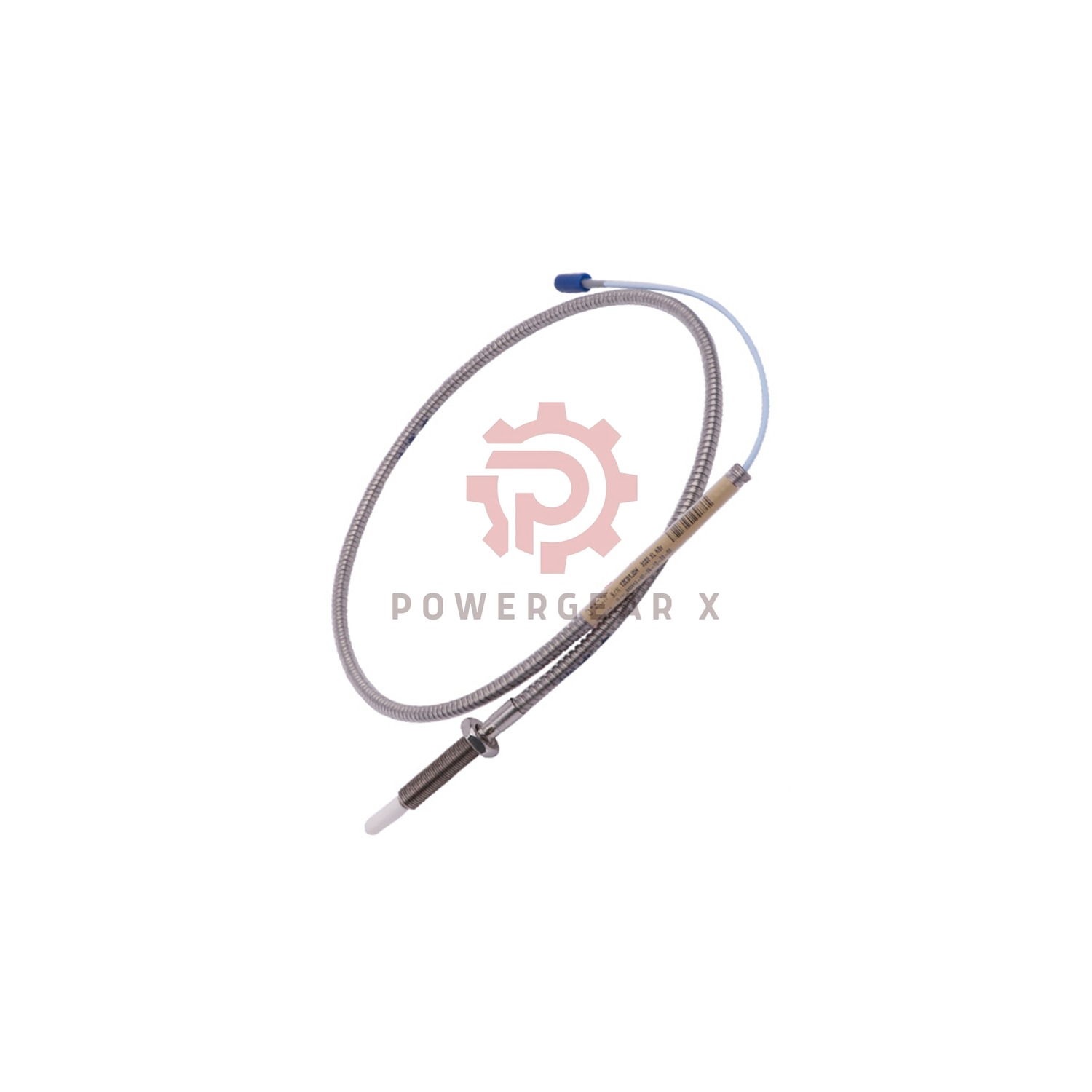

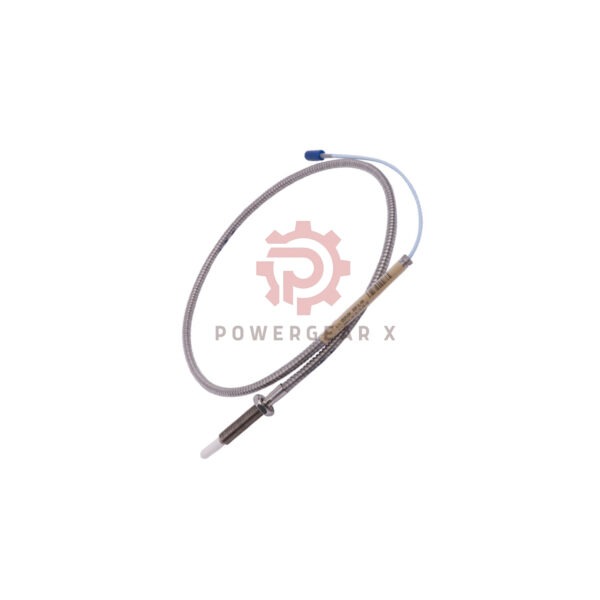

The Bently Nevada 330903-00-05-70-11-00 proximity probe works with older 3300 RAM systems. It has a 50mm case, 7-meter FluidLoc cable, and M8x1 threads. New in factory packaging with a 1-year warranty. Built for tough industrial use.

Technical Specs

• Brand: Bently Nevada
• Model: 330903-00-05-70-11-00
• Model Code Breakdown:
  – -00: Unthreaded length (0mm)
  – -05: Case length (50mm)
  – -70: Total cable length (7.0m)
  – -11: ClickLoc connector + FluidLoc cable
  – -00: No agency approvals needed
• Resistance: 5.9 ohms (±0.9)
• Cable:
  – Center wire: 0.220 ohms/m
  – Shield: 0.066 ohms/m
  – Capacitance: 69.9 pF/m
• Range: 0.25–1.75mm (10–70 mils)
• Voltage: 7.87V/mm (±12.5%)
• Response: 0–10,000Hz (±3dB)

Key Features

Works with 3300 RAM cables. Better chemical resistance than older models. Stainless steel case and PPS tip. Includes connector protector. Stays accurate within ±0.06mm.

For more detailed information:3300 NSv Proximity Transducer System Datasheet
