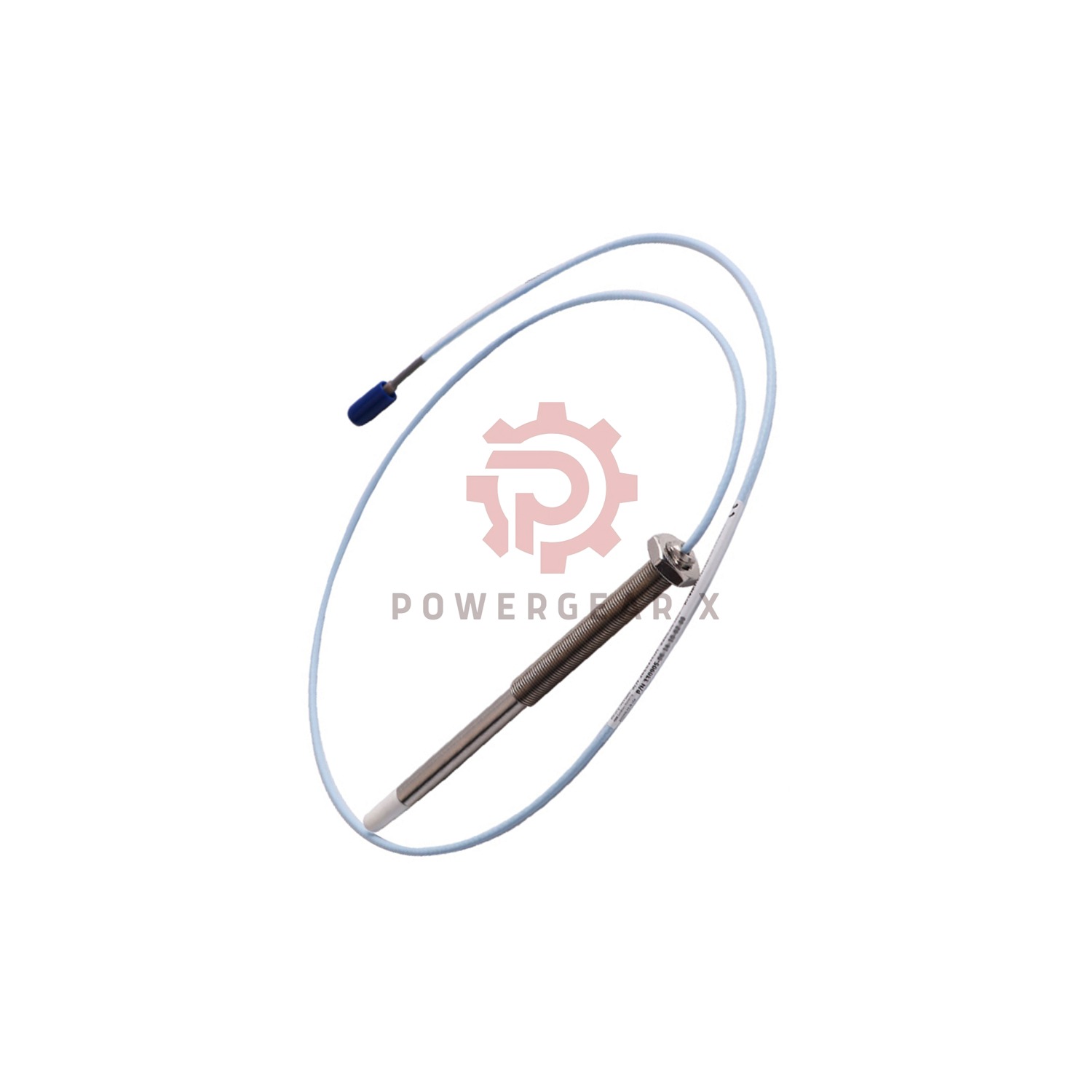

Bently Nevada 3300 NSv Proximity Probe: Compact Precision Sensor

Description

The Bently Nevada 3300 NSv Probe (Model: 330903-00-02-70-02-05) features a 20mm ultra-compact case with 7.0m standard cable, designed for space-limited installations. With M8X1 threading and ClickLoc connector, this sensor offers superior chemical resistance compared to legacy 3300 RAM probes. Ideal for small pumps and robotics.

Technical Specifications

• Brand: Bently Nevada
• Full Model: 330903-00-02-70-02-05
• Suffix Breakdown:
  • -00: 0mm Unthreaded
  • -02: 20mm Case (Shortest Option)
  • 70: 7.0m Cable (23ft)
  • -02: ClickLoc Connector
  • -05: Multi-Certified
• Measurement Range: 0.25–1.75mm (10–70 mils)
• Accuracy: ±0.06mm (±2.3 mils) DSL
• Output: -1 to -13 Vdc (7.87 V/mm)
• Temp Range: -52°C to +177°C
• Materials: PPS Tip | 304 SST Case

Installation Guide

• Torque: 5.1 N·m (45 in·lb) Max
• Target Size: ≥13mm Diameter
• Bend Radius: 25.4mm (1.0″) Minimum
• Wiring: 16-24 AWG Shielded Triad Cable

Key Features

• Space-Saving Design: Smallest 20mm case available
• Backward Compatible: Works with 3300 RAM systems
• Chemical Resistance: PPS tip withstands solvents

Certifications & Support

• ATEX/IECEx/CE: Approved for hazardous areas
• 12-Month Warranty: Factory sealed
• Shipping: FedEx/DHL/UPS (2-5 business days)

Application Example

Monitors precision robotic arms in automotive assembly lines, maintaining ±0.06mm accuracy in high-vibration environments.

For more detailed information:3300 NSv Proximity Transducer System Datasheet
