3300 NSv Proximity Probes | Bently Nevada | Metric – 330904-08-10-70-02-05

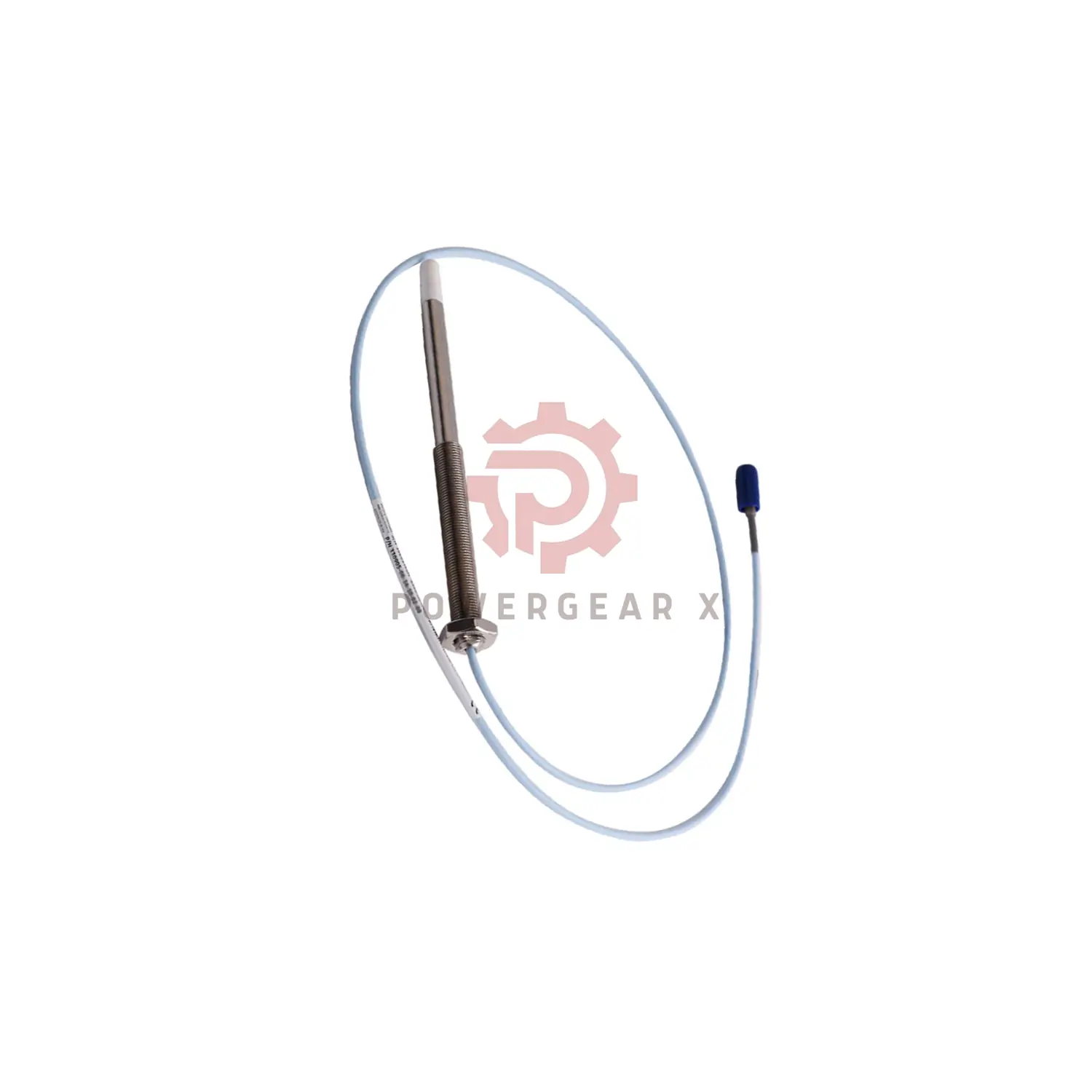

Bently Nevada 330904-08-10-70-02-05 3300 NSv Proximity Probe

Model Full Suffix Tree

• 330904: 3300 NSv Probe with M8x1 thread, with armor
• -08: 8 mm unthreaded length
• -10: 100 mm case length
• 70: 7.0 meters (23 feet) cable length
• -02: Miniature coaxial ClickLoc connector, standard cable
• -05: Multiple agency approvals

Technical Specifications

• Linear Range: 1.5 mm, from 0.25 to 1.75 mm
• Recommended Gap: 1.0 mm
• Incremental Scale Factor: 7.87 V/mm (±12.5% / -20%)
• Accuracy: ±0.06 mm maximum deviation
• Frequency Response: 0 to 10 kHz up to 305 m cable
• Output Voltage: -1 to -13 V DC
• Operating Temperature: -52 to +177°C (-62 to +351°F)
• Storage Temperature: -52 to +177°C (-62 to +351°F)
• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: Stainless Steel AISI 304
• Probe Cable: 75 Ohm coaxial, FEP insulated
• Probe Resistance (7m): 5.9 ± 0.9 Ohms
• Extension Cable Resistance: Center 0.220 Ohm/m, Shield 0.066 Ohm/m
• Extension Cable Capacitance: 69.9 pF/m typical

Installation Guidelines

• Thread Type: M8x1
• Max Thread Depth: 12 mm
• Recommended Torque: Finger tight to 0.56 N·m (5 in·lb)
• Maximum Case Torque: 5.1 N·m (45 in·lb)
• Minimum Bend Radius: 25.4 mm (1.0 inch)

Packaging and Warranty

• Comes new and original in factory packing
• Includes one 330904-08-10-70-02-05 probe with cable and connector
• No test certificate included
• Factory warranty valid for 12 months
