Product details
Product Overview

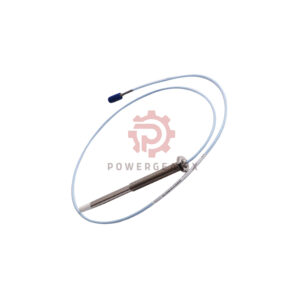

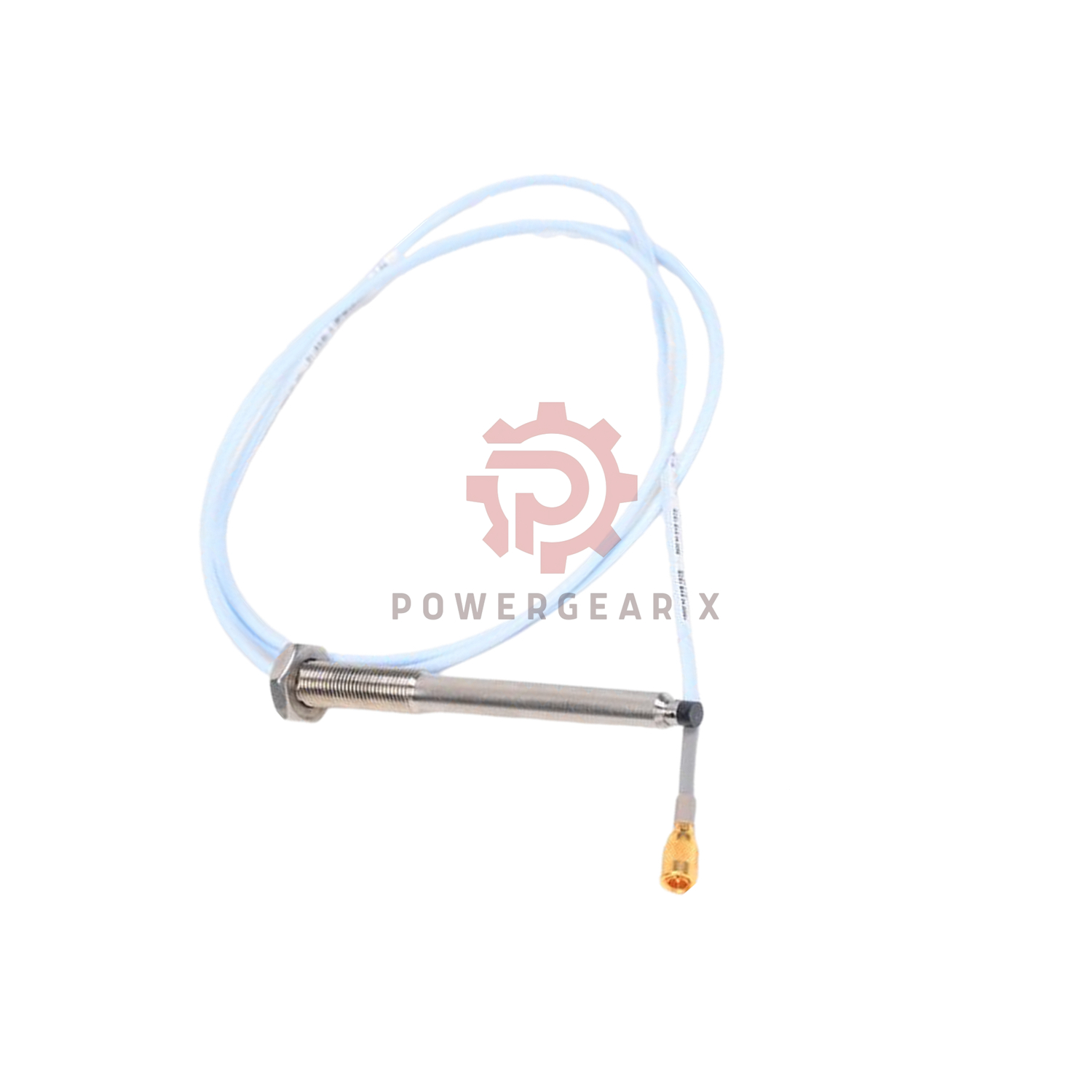

The Bently Nevada 330903-00-05-05-01-00 proximity probe delivers reliable vibration monitoring for industrial machinery. With a 50mm case (-05), M8x1 threading, and a 0.5m FEP-insulated cable, this model fits deep installations. Features a ClickLoc connector protector (-01) for durability and resists harsh chemicals. Compatible with 3300 RAM systems, it operates from -52°C to +177°C. Ships new in factory packaging with a 12-month warranty.
Technical Specifications
- Brand/Model: Bently Nevada 330903-00-05-05-01-00
- ▸ -00: 0mm unthreaded section
- ▸ -05: 50mm case length
- ▸ -05: 0.5m (20″) standard cable
- ▸ -01: ClickLoc connector + impact guard
- ▸ -00:No certifications needed
- Electrical Data:
- ● Probe resistance: 4.0Ω ±0.5 (center to shield)
- ● Cable resistance: 0.220Ω/m (center), 0.066Ω/m (shield)
- ● Capacitance: 69.9 pF/m
- Performance:
- ★ Linear Range: 0.25–1.75mm (10–70 mils)
- ★ Scale Factor: 7.87V/mm (±12.5%)
- ★ Accuracy: ±0.06mm (±2.3 mils)
- Durability:
- ► PPS tip | 304 stainless steel case
- ► Viton O-ring seal | -52°C to +177°C
- ► Bend radius: 25.4mm (min)
Key Benefits
- ✅ Deep Installation: 50mm case for hard-to-reach areas
- ✅ Protected Connector: ClickLoc with dust/impact shield
- ✅ High Precision: Works on shafts ≥8.9mm diameter
- ✅ Quick Install: Finger-tight torque (0.56 N•m max)
- ✅ Reliable: 12-month factory warranty
