Product details
Overview

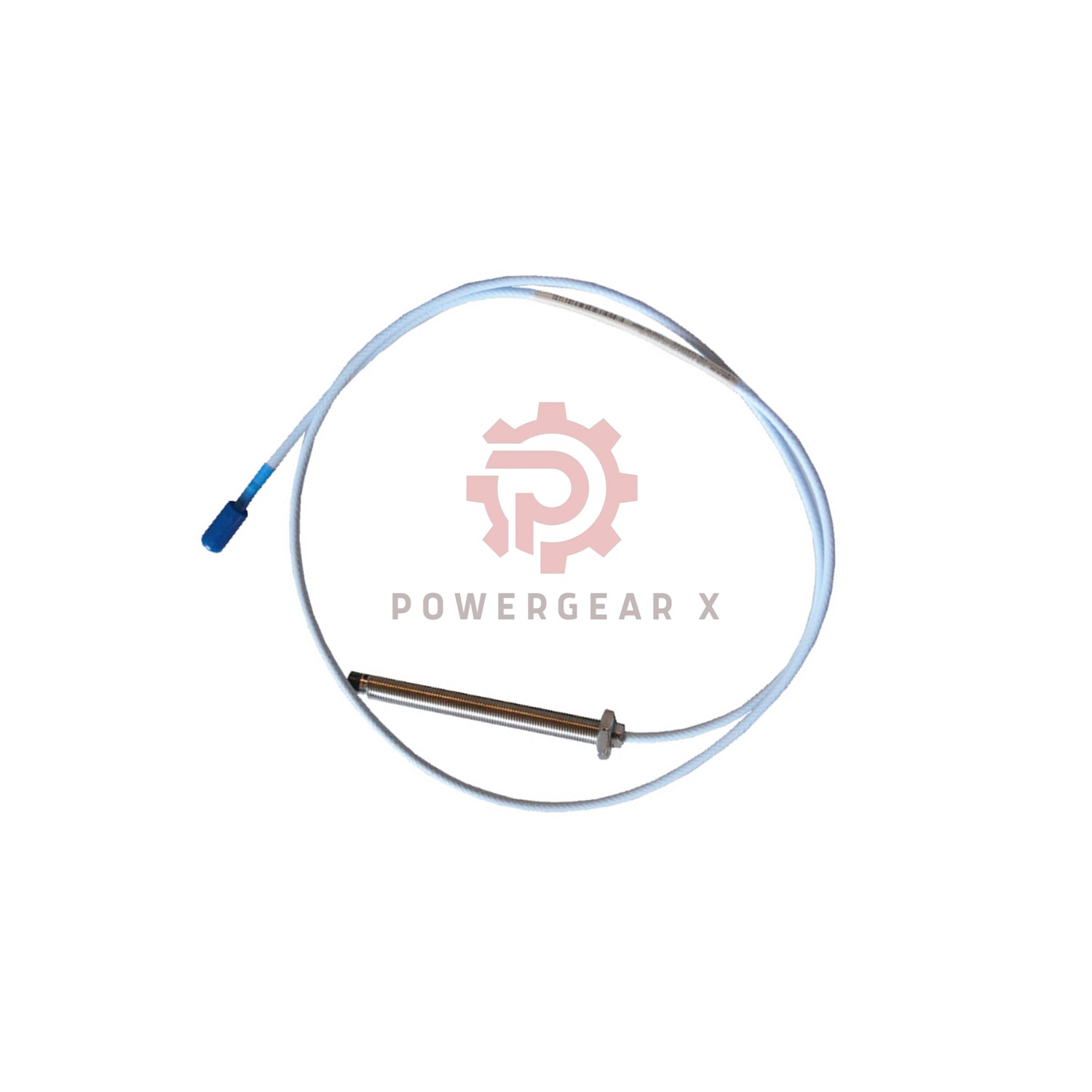

The Bently Nevada 3300NSv Probe (Part 330903-00-05-50-11-05) monitors machinery vibration with high accuracy. This upgraded version features a protective connector and 50mm case length. Works in extreme temperatures (-52°C to +177°C) and resists harsh chemicals. Includes 12-month warranty.
Model Code Breakdown(330903-00-05-50-11-05)
330903 – Base model
├─ 00: 0mm unthreaded section
├─ 05: 50mm case length
├─ 50: 5.0m cable
├─ 11: ClickLoc connector with protector
└─ 05: ATEX/IECEx certified
Key Specifications
- Electrical
- • Probe resistance: 5.3Ω ±0.7Ω (5m cable)
- • Cable: 0.220Ω/m (center), 0.066Ω/m (shield)
- • Response: 0-10kHz (±3dB)
- Mechanical
- • Gap range: 0.25-1.75mm (10-70 mils)
- • Torque: 5.1N·m max (M8x1 thread)
- • Bend radius: 25.4mm (1 inch)
- Environmental
- • Materials: PPS tip, 304 stainless body
- • Pressure seal: Viton O-ring
- • Wire length: Up to 305m (1000ft)
Performance Features
- 7.87V/mm output (±20%)
- Works with 3300RAM system parts
- Needs 13mm+ metal targets
- Easy install – finger-tight setup
