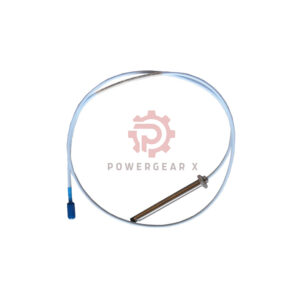

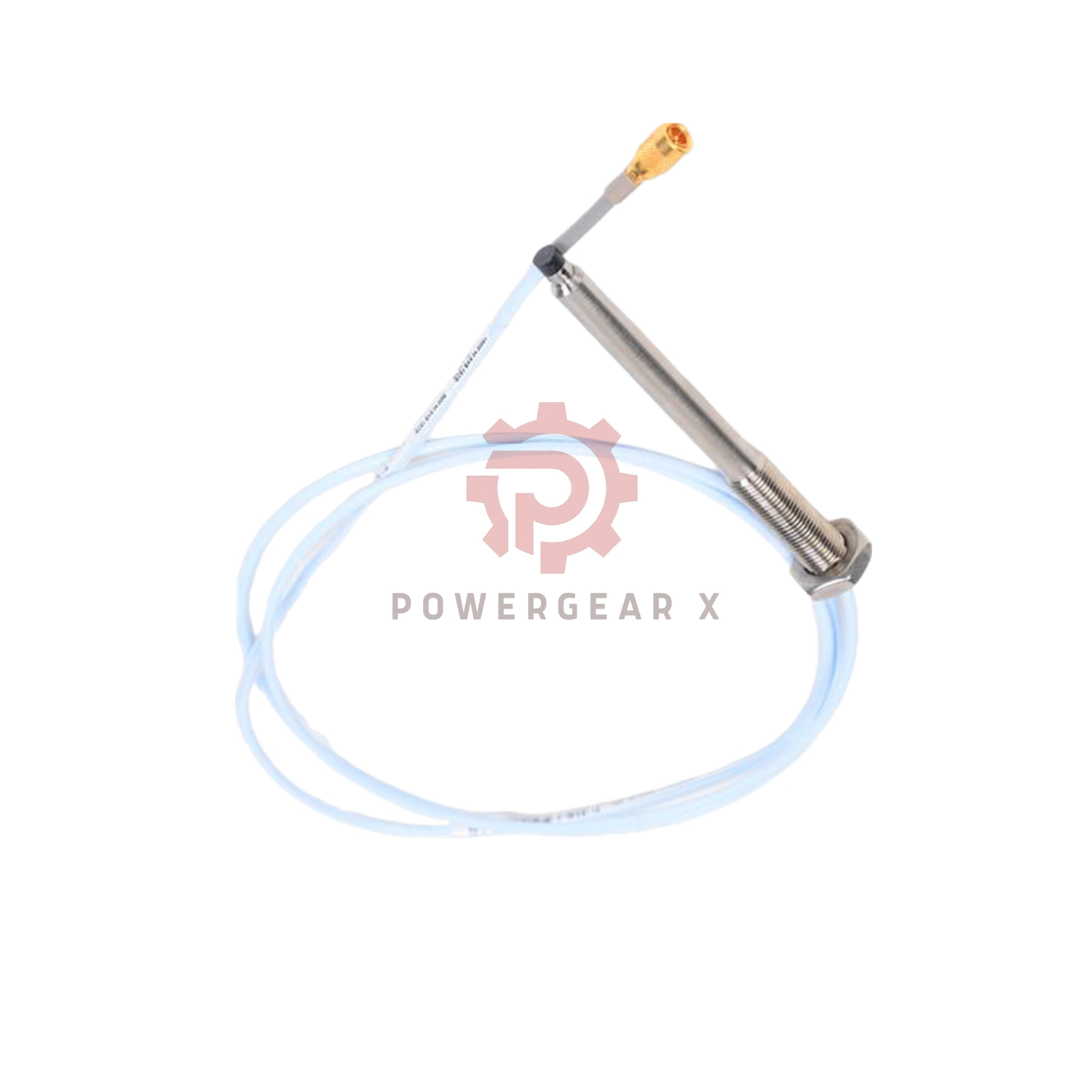

🔥 Bently Nevada 330903-00-05-10-12-05 3300 NSv Proximity Probe
Industrial-grade sensor (330903-00-05-10-12-05)with 50mm case & IP68 FluidLoc cable. Perfect for oil/gas and marine applications. Operates at -52°C to +177°C with ±0.06mm precision. Ships new with 12-month warranty.
🔍 Model Code Decoder
- 00 : No Armor
- 05 : 50mm Case
- 10 : 1.0m Cable
- 12 : FluidLoc ClickLoc (IP68)
- 05 : ATEX/CE/IECEx
⚡ Technical Superpowers
Electrical Mastery
- ► 4.2Ω ±0.5Ω Resistance
- ► 0.220Ω/m Center Wire
- ► 10kHz Frequency (±3dB)
Mechanical Excellence
- ► M8x1 Thread (12mm)
- ► 25.4mm Bend Radius
- ► 5.1 N•m Torque Limit
💦 FluidLoc Dominance
| Waterproof Rating | ► IP68 Submersible |
| Pressure Test | ► 10 Bar Certified |
| Cable Type | ► 75Ω FEP Armored |
⚠ Pro Tips
Small Target Alert! For shafts <13mm → Set gap to 0.5mm
Cable Rule: Max 305m with triad shielding
Cable Rule: Max 305m with triad shielding
📜 Certifications Unleashed
- ATEX II 1/2G Ex ia/ib IIC T4
- IECEx UL 60079-0/11/15
- CE EMC/ATEX Directives
- RoHS3 (2015/863/EU)
