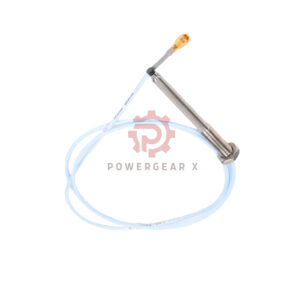

🚀 Bently Nevada 330903-00-04-10-11-05 3300 NSv Proximity Probe
Advanced 40mm sensor(330903-00-04-10-11-05) with IP68 waterproofing for extreme environments. Operates at -52°C to +177°C with ±0.06mm precision. Direct replacement for 3300 RAM systems.
🔍 Model Code Decoder Ring
- 00 : No Armor
- 04 : 40mm Case
- 10 : 1.0m Cable
- 11 : FluidLoc+Protector
- 05 : Multi-Certified
⚡ Technical Powerhouse
Precision Metrics
- ► 4.2Ω ±0.5Ω Resistance
- ► 7.87V/mm Scale Factor
- ► 0.25-1.75mm Range
Durability Specs
- ► M8x1 Thread (12mm)
- ► 25.4mm Bend Radius
- ► 5.1 N•m Torque Max
🌊 FluidLoc Dominance
| Waterproof Rating | ► IP68 Submersible |
| Pressure Test | ► 10 Bar Certified |
| Cable Shield | ► 0.066Ω/m |
⚠ Pro Tips
Critical Install Notes:
• For shafts <13mm → 0.5mm gap required
• Use triad shielded cables (305m max)
• Pressure testing available on demand
📜 Certifications
- ATEX II 1G Ex ia IIC T4
- IECEx UL 60079-11
- CE 2014/34/EU
- RoHS3 Compliant
