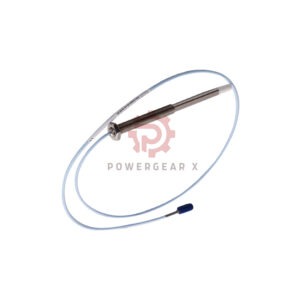

The Bently Nevada 330903-00-03-50-02-00 monitors vibrations in refinery compressors. Operates from -62°F (-52°C) to 351°F (177°C). Features 30mm stainless housing and 5m FEP-insulated cable. Direct replacement for 3300 RAM probes with 50% better chemical resistance.
▼ Model Code Decoder(330903-00-03-50-02-00)
330903 - 00 - 03 - 50 - 02 - 00 │ │ │ │ │ └─ No certifications │ │ │ │ └─── Standard connector │ │ │ └────── 5.0m cable │ │ └─────── 30mm case │ └──────── No armor └──────────── Base model
Precision Data
⚡ Electrical
- 5.3Ω ±0.7 @5m
(0.7% resistance stability) - 0.220Ω/m center
(0.067Ω/ft ±2% tolerance)
🔩 Mechanical
- M8x1-12mm threads
(5.1N·m install torque) - 25.4mm bend radius
(1.0″ cold-form limit)
▼ Performance Features
7.87V/mm ±12.5% Sensitivity
(200mV/mil @40 mils gap)
0.06mm max linearity error
-13Vdc Full Scale
(1.75mm measurement limit)
Viton O-ring sealing
