3300 NSv – Bently Nevada Proximity Probes | Metric 330903-00-03-10-12-00

Overview

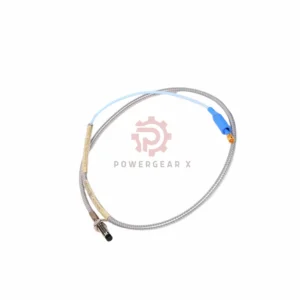

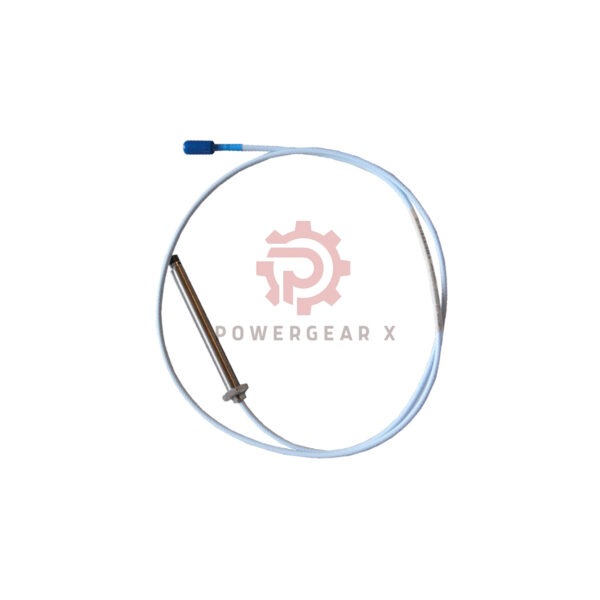

The Bently Nevada 3300NSv Proximity Probe (Part 330903-00-03-10-12-00) monitors industrial machines in harsh conditions. It works with older 3300RAM systems and handles chemicals better. This model has a shorter 30mm case and special FluidLoc cable. Comes new in box with 1-year warranty.

Key Specs

• Brand: Bently Nevada
• Model Code: 330903-00-03-10-12-00
  What the numbers mean:
  • 00: No unthreaded part
  • 03: 30mm case
  • 10: 1 meter long
  • 12: FluidLoc cable connector
  • 00: No safety certifications
• Electrical:
  • Probe wire resistance: 4.2Ω (±0.5)
  • Cable resistance: 0.22Ω/m (center), 0.066Ω/m (shield)
  • Cable capacitance: 69.9 pF/m
• Physical:
  • Thread size: M8X1
  • Max twist force: 0.56N•m
  • Min bend: 25.4mm
• Performance:
  • Measuring range: 0.25-1.75mm
  • Output: 7.87V/mm (±12.5%)
  • Works up to 10kHz
• Environment:
  • Temp range: -52°C to +177°C
  • Seal: Viton O-ring
  • Cable type: FEP-coated 75Ω

For more detailed information:3300 NSv Proximity Transducer System Datasheet
