Product details
Overview

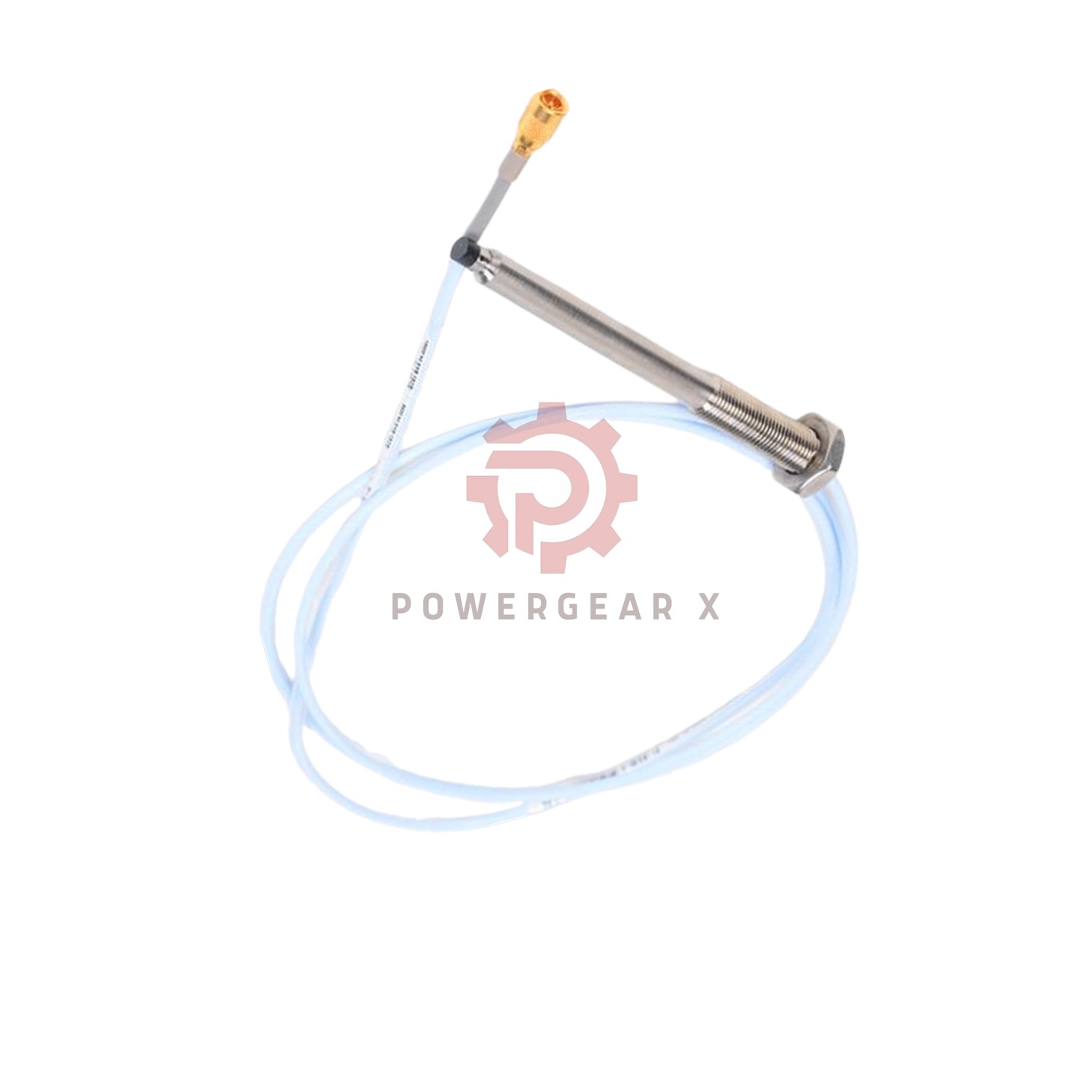

The Bently Nevada 330903-00-03-10-11-00 NSv Proximity Probe delivers industrial-grade vibration monitoring with a 30 mm stainless steel case and FluidLoc liquid-resistant cable. Designed for harsh environments, it replaces older 3300 RAM systems and ships new with a 12-month warranty.
Model Code Breakdown
Model:330903-00-03-10-11-00
├── 00 ➔ 0 mm unthreaded ├── 03 ➔ 30 mm case length ├── 10 ➔ 1.0-meter cable (39") ├── 11 ➔ ClickLoc + FluidLoc cable └── 00 ➔ No certifications
Key Technical Data
◉ Electrical Specs
- Probe Resistance: 4.2Ω ±0.5 (1m)
- Cable Shield: 0.066Ω/m (braided)
- Capacitance: 69.9 pF/m (21.3 pF/ft)
◉ Mechanical Limits
- Max Torque: 5.1 N·m (45 in·lb)
- Bend Radius: 25.4 mm (1.0 in)
- Thread Grip: 12 mm (M8x1)
Performance Highlights
- ✓ FluidLoc Cable: FEP insulation resists oils, chemicals, and moisture
- ✓ Linear Range: 0.25–1.75 mm (10–70 mils)
- ✓ Target Size: 13 mm min for stable readings
Durability Features
- ▶ Seal: Viton O-ring (untested pressure)
- ▶ Case Material: AISI 304 stainless steel
