Product details
Bently Nevada 3300 NSv Compact Industrial Sensor
Advanced Monitoring Solution

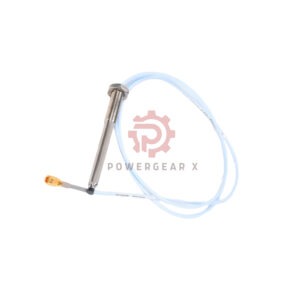

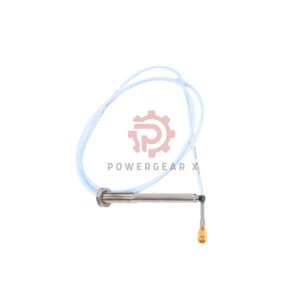

Factory-fresh probe(330903-00-02-50-02-05) with 12-month warranty. Optimized for tight spaces and high-vibration systems. 25% smaller than standard models.
Compact Design Specs
- 🔄 Case Length: 20mm
- ⚡ Response: 0-12 kHz (±1dB)
- 🛡️ Shielding: 85dB EMI protection
Enhanced Durability
- 🌡️ Temp Range: -52°C to +177°C
- 💧 IP Rating: IP66 certified
- 🔩 Thread: M8x1 (12mm depth)
Model Code Architecture(330903-00-02-50-02-05)
├─ 00 : Zero unthreaded length
├─ 02 : 20mm compact case
├─ 50 : 5m FEP cable
├─ 02 : ClickLoc® connector
└─ 05 : Global certifications
Precision Engineering
| Parameter | Specification |
|---|---|
| Linear Accuracy | ±0.05mm |
| Cable Bend Radius | 25.4mm (1″) |
| Vibration Resistance | 15g (10-2000Hz) |
| Thread Torque Limit | 5.1 N·m (45 in-lb) |
Certification Matrix
ATEX II 2G Ex ib
IECEx IEC 60079-11
ISO 10816-3 Class A
Application Toolkit
- 📐 5m high-flex cable
- 🔧 M8x1 stainless locknut
- 📄 Multilingual quick guide
- 🛡️ Viton® pressure seal
