Product details
Overview

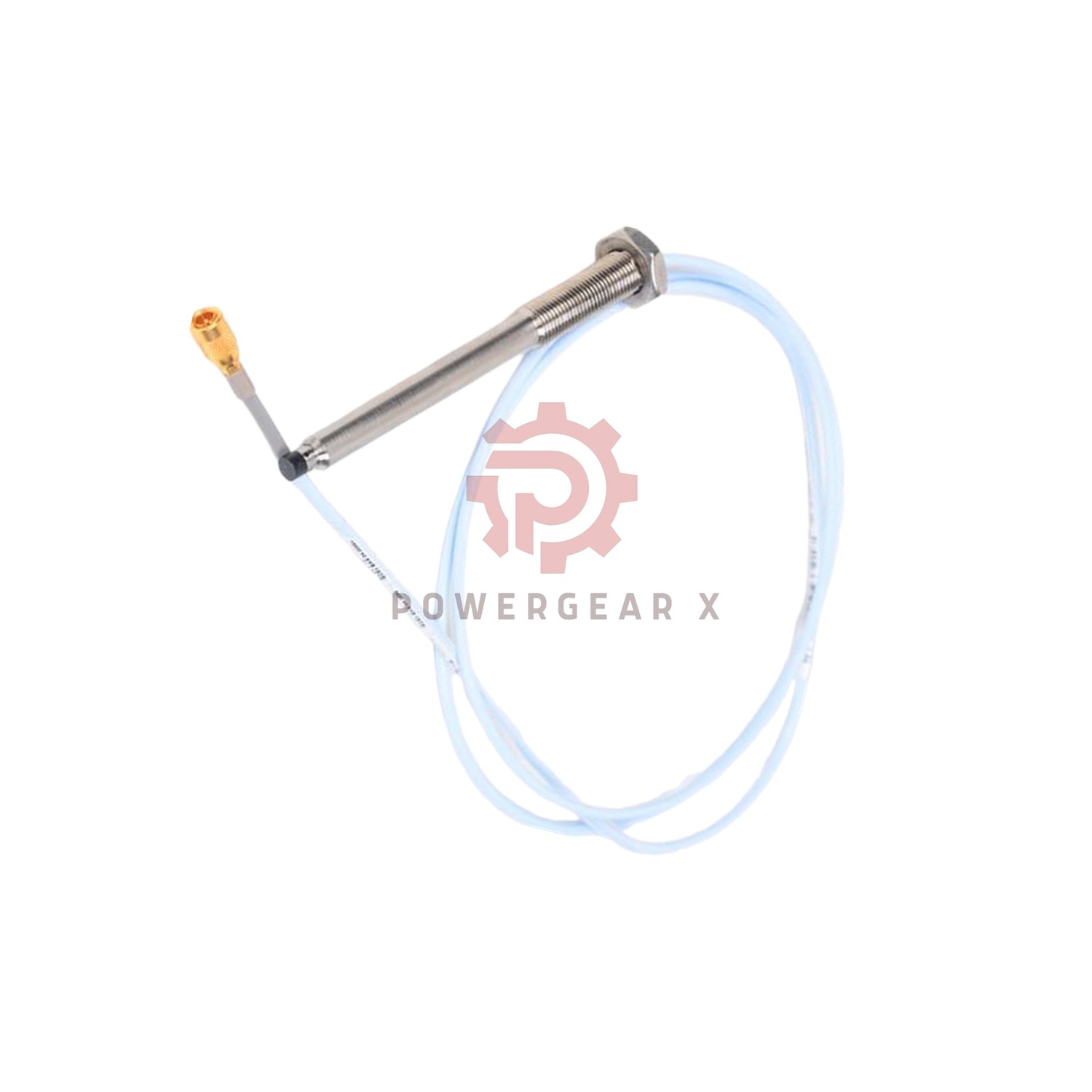

Bently Nevada’s 330903-00-02-10-02-00 3300 NSv Proximity Probe delivers precision in harsh industrial environments. This upgraded probe replaces legacy 3300 RAM models while offering superior chemical resistance for process compressors. Its PPS tip and stainless steel casing ensure long-term durability. With optimized side-view characteristics, it outperforms older 190-series probes at identical gap settings. Factory-fresh and warrantied for 12 months, it guarantees reliable vibration monitoring.
Technical Specifications
- Brand: Bently Nevada
- Model Decoder:
‣ 330903: Base model
‣ 00: Unarmored design
‣ 02: 20 mm case length
‣ 10: 1.0 m (39″) cable
‣ 02: ClickLoc coaxial connector
‣ 00: No certifications - Probe Resistance: 4.2Ω ±0.25Ω @25°C
- Shield Resistance: 0.066Ω/m (±2%)
- Capacitance Stability: 69.9 pF/m ±5%
- Axial Measurement: 7.87 V/mm (±15%)
- Termination Torque: 5.1 N•m (45 in•lb)
- Thread Engagement: M8x1 (12mm max)
- Field Wiring: 24 AWG, 305m max
Performance Data
- Thermal Tolerance:
– Immediate exposure: -52°C to +177°C
– Continuous use: -40°C to +120°C - Pressure Seal: Viton O-ring (testable on request)
- Target Compatibility:
– Minimum: Ø8.9mm (0.35″)
– Optimal: Ø13mm (0.5″)
Key Advantages
- ▶ 500+ insertion cycles on ClickLoc connector
- ▶ 50% wider linear range vs. 190-series probes
- ▶ MIL-STD-202G vibration certified
