Product details
Overview

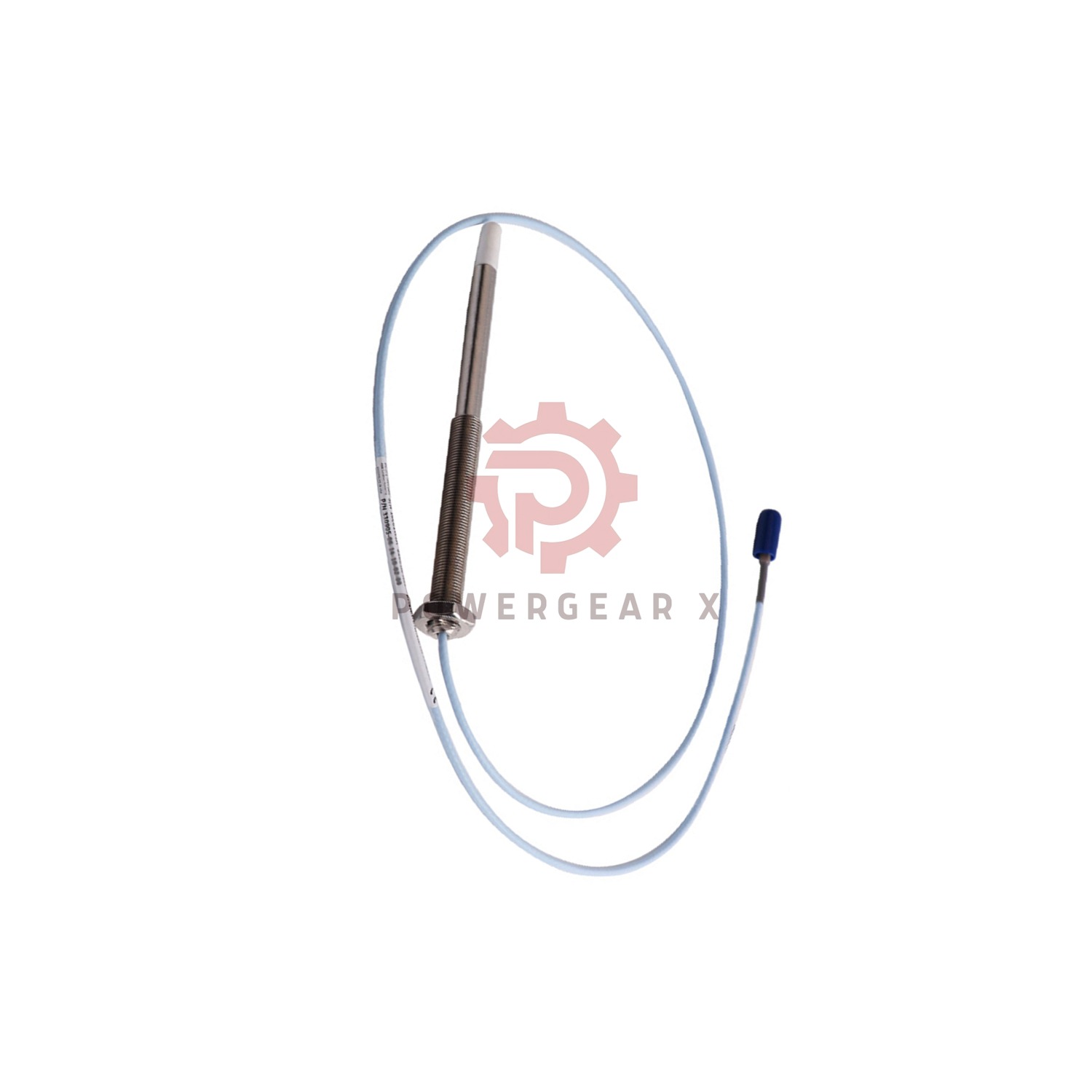

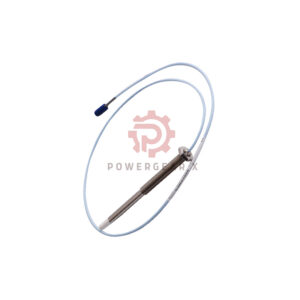

The Bently Nevada 330903-00-02-10-01-05 3300 NSv Proximity Probe is built for rugged industrial use. With a 20mm compact case and ClickLoc connector protector, it withstands harsh conditions. Operates in extreme temperatures (-52°C to +177°C) and offers ATEX/CE/IECEx certifications. Perfect for chemical-rich environments like compressors. Ships new with a 1-year warranty.
Technical Specifications
- Brand: Bently Nevada
- Model: 330903-00-02-10-01-05
- Part Code Breakdown:
– ▶ 00: No armor
– ▶ 02: 20mm case
– ▶ 10: 1.0m cable
– ▶ 01: ClickLoc + protector
– ▶ 05: Multi-certified - Resistance: 4.2Ω ±0.5Ω
- Frequency Range: 0-10 kHz (±3dB)
- Cable Specs:
– 0.220Ω/m (center)
– 0.066Ω/m (shield)
– 69.9 pF/m - Thread: M8x1 (12mm max)
- Bend Radius: 25.4mm
Key Features
- ✅ Connector Protector: Prevents damage in high-vibration areas
- ✅ Chemical Resistance: Better than 3300 RAM probes
- ✅ Linear Range: 0.25–1.75mm (±0.06mm error)
Certifications
- ✔ ATEX II 2G Ex ib IIC T4
- ✔ IECEx UL 60079-11
- ✔ RoHS 3 compliant
⚠ Usage Notes
For shafts under 13mm: Reduce gap to 0.5mm.
Signal loss ≤3dB @10kHz with 305m cables.
