Product details

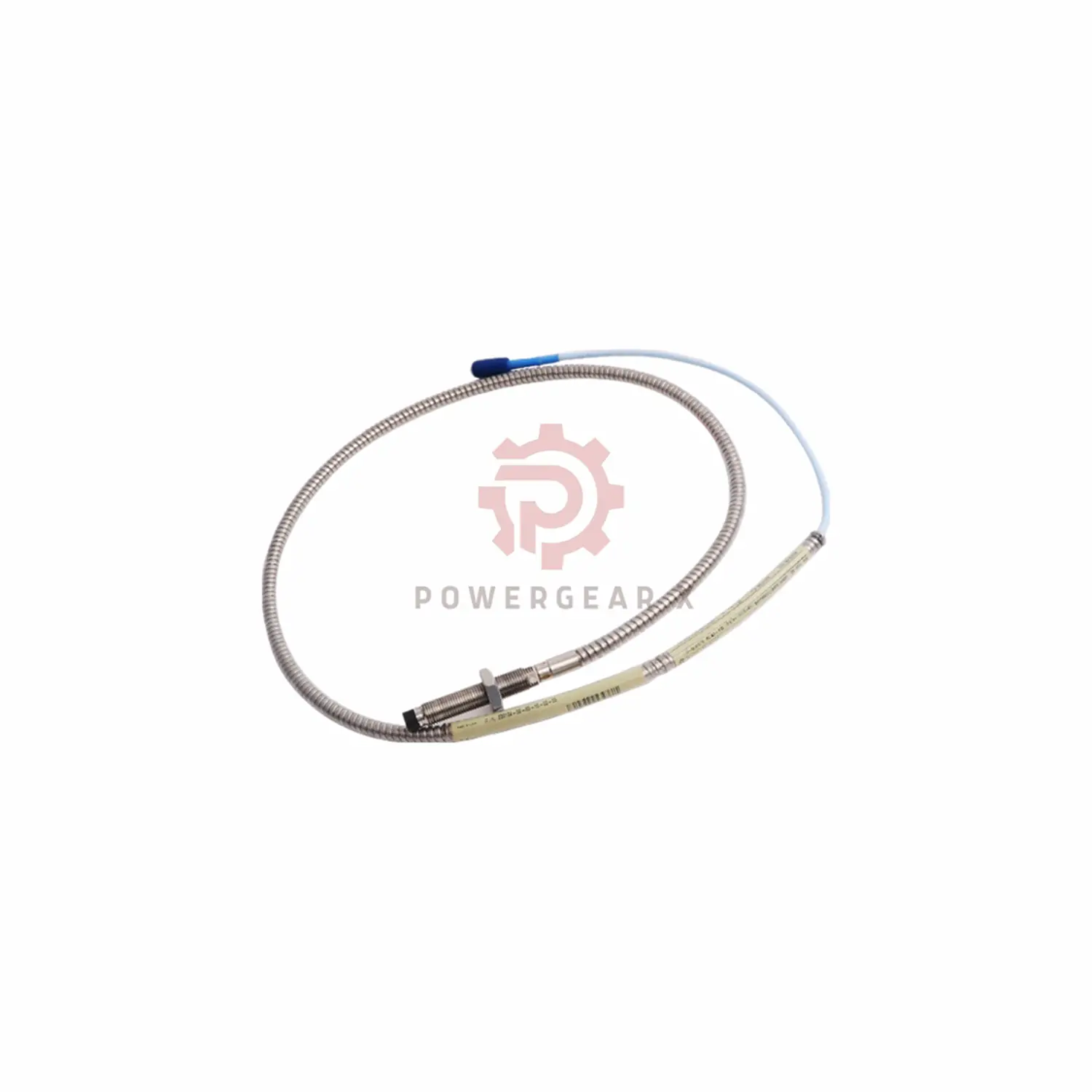

Bently Nevada 3300 NSv Proximity Probe 330910-03-20-10-11-00
Key Features
New original factory sealed unit with 12 month warranty. Ships fast via FedEx, UPS, DHL.
Technical Specifications
- Measuring Range: 0-2.5mm linear distance
- Output Signal: Analog voltage (4-20mA)
- Accuracy: ±1% full scale at 25°C
- Frequency Response: 0-10 kHz
- Shock Resistance: 100g peak for 6ms
- Vibration Limit: 20g peak from 10-2000 Hz
Model Number Structure (330910-03-20-10-11-00)
- Base: 330910
- Unthreaded length: -03 (30mm)
- Case length: -20 (200mm)
- Cable length: -10 (1.0m)
- Connector: -11 (Mini ClickLoc)
- Approvals: -00 (Standard)
Industrial Solutions
- Prevent turbine blade contact in power plants
- Monitor pump shaft deflection in oil refineries
- Detect compressor imbalance in chemical plants
- Measure gear mesh alignment in paper mills
Installation Guide
- Mount probe perpendicular to target surface
- Maintain 1.0mm air gap between tip and target
- Secure with 11.3 N•m torque on M10 thread
- Keep bend radius above 25.4mm
Compatibility
Works with Bently Nevada 3300, 3500 monitoring systems. Fits M10x1 mounting holes.
Package Includes
- Probe with 1.0m cable
- ClickLoc connector
- Protective end cap
- Mounting hardware
Temperature Performance
- Works in extreme cold: -52°C to +177°C
- Use below -34°C only for short periods
- Ideal for foundries and cryogenic plants
